KNN Search

Find k-nearest neighbors using searcher object

Since R2023b

expand all in page
  • KNN Search Block Icon

Libraries:
Statistics and Machine Learning Toolbox / Neighborhood Searcher

Description

The KNN Search block finds the nearest neighbors in the data to a query point using a nearest neighbor searcher object (ExhaustiveSearcher or KDTreeSearcher).

Import a trained searcher object containing observation data into the block by specifying the name of a workspace variable that contains the object. The input port x receives a query point, and the output port Idx returns the indices of the k-nearest neighbor points in the data. The optional output port D returns the distances between the query point and the nearest neighbor points.

Examples

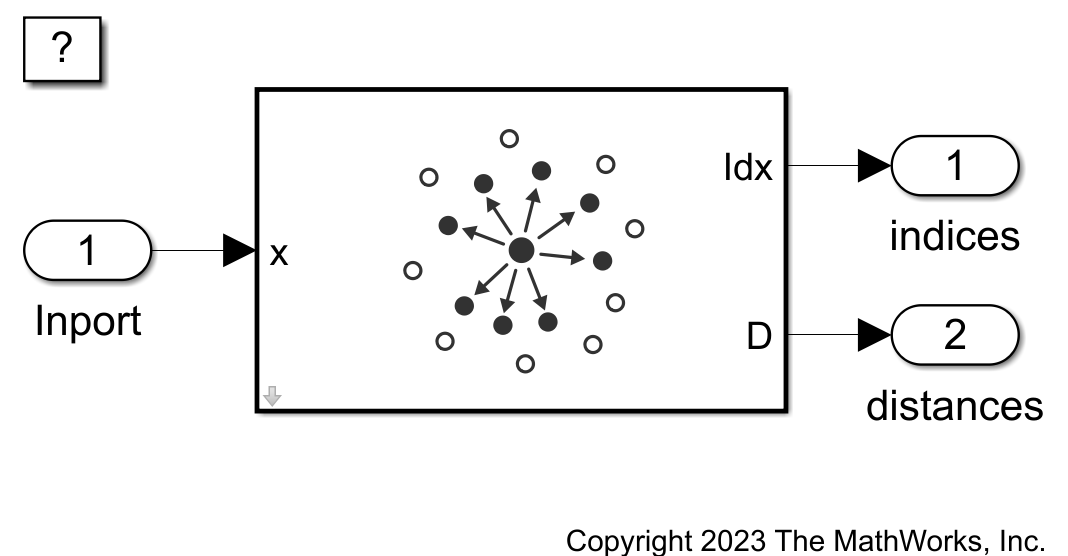

Find Nearest Neighbors Using KNN Search Block

Find Nearest Neighbors Using KNN Search Block

Train a nearest neighbor searcher model, and then use the KNN Search block for label prediction.

Ports

Input

expand all

Query point, specified as a row vector. x must have the same number of columns as the number of predictor variables in the searcher object specified by Select nearest neighbor searcher. The columns of x must be in the same order as those in the searcher object.

Data Types: single | double | half | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point

Output

expand all

Indices of the nearest neighbors in the data, returned as a numeric row vector or 1-by-1 cell array.

  • If you do not select Include ties on the Main tab of the Block Parameters dialog box, then the block returns a 1-by-k numeric row vector, where k is the number of nearest neighbors searched. Each column of the row vector contains the index of a nearest neighbor point in the data, ordered by increasing distance to the query point x.

  • If you select Include ties on the Main tab of the Block Parameters dialog box, then the block returns a 1-by-1 cell array as a variable-size signal containing a numeric row vector of at least k indices of the closest observations in the data to the query point x. The columns of the vector are ordered by increasing distance to the query point.

Data Types: single | double | half | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fixed point

Distances of the nearest neighbors to the query points, returned as a numeric row vector or 1-by-1 cell array.

  • If you do not select Include ties on the Main tab of the Block Parameters dialog box, then the block returns a 1-by-k numeric row vector, where k is the number of nearest neighbors searched. Each column of the row vector contains the distance of a nearest neighbor point in the data to the query point x, according to the distance metric. The columns of the row vector are ordered by increasing distance to the query point.

  • If you select Include ties on the Main tab of the Block Parameters dialog box, then the block returns a 1-by-1 cell array as a variable-size signal containing a numeric row vector of at least k distances of the closest observations in the data to the query point x. The columns of the vector are ordered by increasing distance to the query point.

Dependencies

To enable this port, select Add output port for nearest neighbor distances in the KNN Search block.

Data Types: single | double | half | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fixed point

Parameters

expand all

Main

Specify the name of a workspace variable that contains an ExhaustiveSearcher or KDTreeSearcher object.

Note

The software uses the default settings for all parameters that you can specify in the Block Parameters dialog box. The parameters in the dialog box override those of the searcher object.

Programmatic Use

Block Parameter: NeighborhoodSearcher
Type: workspace variable
Values: ExhaustiveSearcher object | KDTreeSearcher object
Default: "searcher"

Select the check box to include the second outport port D in the KNN Search block.

Programmatic Use

Block Parameter: ShowOutputDistances
Type: character vector
Values: "off" | "on"
Default: "off"

Specify the number of nearest neighbors to find in the data for the query point.

Programmatic Use

Block Parameter: NumNeighbors
Type: positive integer
Values: single | double
Default: 1

If you do not select Include ties on the Main tab of the Block Parameters dialog box, then the block selects the observation with the smallest index among the observations that have the same distance from the query point.

If you select Include ties:

  • The block output includes all nearest neighbors whose distances are equal to the kth smallest distance in the output arguments. If more than five nearest neighbors have equal distance to the kth smallest distance, the block output includes only the first five nearest neighbors with the smallest index values.

  • The Idx and D block outputs are 1-by-1 cell arrays where each cell contains a vector of at least k indices and distances, respectively. The columns in the vectors are ordered by increasing distance to the query point.

Programmatic Use

Block Parameter: IncludeTies
Type: character vector
Values: "off" | "on"
Default: "off"

Specify the distance metric used to find nearest neighbors in the data to the query point.

For both ExhaustiveSearcher and KDTreeSearcher objects, the block supports these distance metrics.

ValueDescription
"chebychev"Chebychev distance (maximum coordinate difference)
"cityblock"City block distance
"euclidean"Euclidean distance
"minkowski"Minkowski distance. The default exponent is 2. You can specify a different exponent in the Block Parameters dialog box.

For an ExhaustiveSearcher object, the block also supports these distance metrics.

ValueDescription
"correlation"One minus the sample linear correlation between observations (treated as sequences of values)
"cosine"One minus the cosine of the included angle between observations (treated as row vectors)
"hamming"Hamming distance, which is the percentage of coordinates that differ
"jaccard"One minus the Jaccard coefficient, which is the percentage of nonzero coordinates that differ
"mahalanobis"Mahalanobis distance, computed using a positive definite covariance matrix. The block computes the covariance matrix from the data in the searcher object, by default. You can specify a customized covariance matrix in the Block Parameters dialog box.
"seuclidean"Standardized Euclidean distance. Each coordinate difference between the query point x and the data is scaled by dividing by the corresponding element of the standard deviation computed from the data. You can specify a different scaling method in the Block Parameters dialog box.
"spearman"One minus the sample Spearman's rank correlation between observations (treated as sequences of values)

Note

  • The distance metric setting overrides the Distance property of the specified searcher object.

  • The KNN Search block does not support the "fasteuclidean" or "fastseuclidean" distance metric (see Distance Metrics).

Programmatic Use

Block Parameter: DistanceMetric
Type: character vector
Values: "euclidean" | "chebychev" | "cityblock" | "minkowski" | "correlation" | "cosine" | "hamming" | "jaccard" | "mahalanobis" | "seuclidean" | "spearman"
Default: "euclidean"

The block computes the covariance matrix from the data in the searcher object, by default. You can specify a customized covariance matrix by selecting Customized and entering a positive definite matrix in the Customized matrix box.

Note

This setting overrides the DistParameter property of the specified searcher object.

Programmatic Use

Block Parameter: CovarianceMatrix
Type: positive definite matrix
Values: "Computed using data in searcher" | "Customized"
Default: "Computed using data in searcher"

Dependencies

To enable this parameter, set Distance Metric to "mahalanobis".

The block computes the scale parameter value from the data in the searcher object, by default. You can specify a customized scale parameter value by selecting Customized and entering a nonnegative numeric row vector in the Customized scale text box. The row vector must have the same number of columns as the number of predictor variables in the searcher object. When the block computes the standardized Euclidean distance, each coordinate of the data is scaled by the corresponding element of Scale, as is the query point.

Note

This setting overrides the DistParameter property of the specified searcher object.

Programmatic Use

Block Parameter: Scale
Type: nonnegative numeric row vector
Values: "Standard deviation of data in searcher" | "Customized"
Default: "Standard deviation of data in searcher"

Dependencies

To enable this parameter, set Distance Metric to "seuclidean".

Specify the exponent for the Minkowski distance metric. For the default case of P = 2, the Minkowski distance gives the Euclidean distance. For the special case of P = 1, the Minkowski distance gives the city block distance. For the special case of P = ∞, the Minkowski distance gives the Chebychev distance.

Note

This setting overrides the DistParameter property of the specified searcher object.

Programmatic Use

Block Parameter: MinkExp
Type: positive integer
Values: positive integer
Default: 2

Dependencies

To enable this parameter, set Distance Metric to "minkowski".

Data Types

Fixed-Point Operational Parameters

Specify the rounding mode for fixed-point operations. For more information, see Rounding Modes (Fixed-Point Designer).

Block parameters always round to the nearest representable value. To control the rounding of a block parameter, enter an expression into the mask field using a MATLAB® rounding function.

Programmatic Use

Block Parameter: RndMeth
Type: character vector
Values: "Ceiling" | "Convergent" | "Floor" | "Nearest" | "Round" | "Simplest" | "Zero"
Default: "Floor"

Specify whether overflows saturate or wrap.

ActionRationaleImpact on OverflowsExample

Select this check box (on).

Your model has possible overflow, and you want explicit saturation protection in the generated code.

Overflows saturate to either the minimum or maximum value that the data type can represent.

The maximum value that the int8 (signed 8-bit integer) data type can represent is 127. Any block operation result greater than this maximum value causes overflow of the 8-bit integer. With the check box selected, the block output saturates at 127. Similarly, the block output saturates at a minimum output value of –128.

Clear this check box (off).

You want to optimize the efficiency of your generated code.

You want to avoid overspecifying how a block handles out-of-range signals. For more information, see Troubleshoot Signal Range Errors (Simulink).

Overflows wrap to the appropriate value that the data type can represent.

The maximum value that the int8 (signed 8-bit integer) data type can represent is 127. Any block operation result greater than this maximum value causes overflow of the 8-bit integer. With the check box cleared, the software interprets the value causing the overflow as int8, which can produce an unintended result. For example, a block result of 130 (binary 1000 0010) expressed as int8 is –126.

Programmatic Use

Block Parameter: SaturateOnIntegerOverflow
Type: character vector
Values: "off" | "on"
Default: "off"

Select this parameter to prevent the fixed-point tools from overriding the data type you specify for the block. For more information, see Use Lock Output Data Type Setting (Fixed-Point Designer).

Programmatic Use

Block Parameter: LockScale
Type: character vector
Values: "off" | "on"
Default: "off"
Data Type

Specify the data type for the Idx output. The type can be inherited, specified directly, or expressed as a data type object such as Simulink.NumericType.

Click the Show data type assistant button to display the Data Type Assistant, which helps you set the data type attributes. For more information, see Specify Data Types Using Data Type Assistant (Simulink).

Programmatic Use

Block Parameter: IndicesDataTypeStr
Type: character vector
Values: "Inherit: auto" | "double" | "single" | "half" | "int8" | "uint8" | "int16" | "uint16" | "int32" | "uint32" | "int64" | "uint64" | "fixdt(1,16,0)" | "fixdt(1,16,2^0,0)" | "<data type expression>"
Default: "Inherit: auto"

Specify the minimum value of the Idx output range that Simulink® checks.

Simulink uses the minimum value to perform:

Note

The Index data type Minimum parameter does not saturate or clip the actual Idx output signal. To do so, use the Saturation (Simulink) block instead.

Programmatic Use

Block Parameter: IndicesOutMin
Type: scalar
Values: "[]" | scalar
Default: "[]"

Specify the maximum value of the Idx output range that Simulink checks.

Simulink uses the maximum value to perform:

Note

The Index data type Maximum parameter does not saturate or clip the actual Idx output signal. To do so, use the Saturation (Simulink) block instead.

Programmatic Use

Block Parameter: IndicesOutMax
Type: scalar
Values: "[]" | scalar
Default: "[]"

Specify the data type for the distance (D) output. The type can be inherited, specified directly, or expressed as a data type object such as Simulink.NumericType.

Click the Show data type assistant button to display the Data Type Assistant, which helps you set the data type attributes. For more information, see Specify Data Types Using Data Type Assistant (Simulink).

Programmatic Use

Block Parameter: DistanceDataTypeStr
Type: character vector
Values: "Inherit: auto" | "double" | "single" | "half" | "int8" | "uint8" | "int16" | "uint16" | "int32" | "uint32" | "int64" | "uint64" | "fixdt(1,16,0)" | "fixdt(1,16,2^0,0)" | "<data type expression>"
Default: "Inherit: auto"

Note

Fixed-point data types are not supported for the Spearman distance metric.

Dependencies

To enable this parameter, select Add output port for nearest neighbor distances on the Main tab of the Block Parameters dialog box.

Specify the minimum value of the distance (D) output range that Simulink checks.

Simulink uses the minimum value to perform:

Note

The Distance data type Maximum parameter does not saturate or clip the actual D output signal. To do so, use the Saturation (Simulink) block instead.

Programmatic Use

Block Parameter: DistanceOutMin
Type: scalar
Values: "[]" | scalar
Default: "[]"

Dependencies

To enable this parameter, select Add output port for nearest neighbor distances on the Main tab of the Block Parameters dialog box.

Specify the maximum value of the distance (D) output range that Simulink checks.

Simulink uses the maximum value to perform:

Note

The Distance data type Maximum parameter does not saturate or clip the actual D output signal. To do so, use the Saturation (Simulink) block instead.

Programmatic Use

Block Parameter: DistanceOutMax
Type: scalar
Values: "[]" | scalar
Default: "[]"

Dependencies

To enable this parameter, select Add output port for nearest neighbor distances on the Main tab of the Block Parameters dialog box.

Block Characteristics

Data Types

Boolean | double | enumerated | fixed point | half | integer | single

Direct Feedthrough

yes

Multidimensional Signals

no

Variable-Size Signals

yes

Zero-Crossing Detection

no

Alternative Functionality

You can use a MATLAB Function block with the knnsearch object function of a nearest neighbor searcher object (ExhaustiveSearcher or KDTreeSearcher). For an example, see Predict Class Labels Using MATLAB Function Block.

When deciding whether to use the KNN Search block in the Statistics and Machine Learning Toolbox™ library or a MATLAB Function block with the knnsearch function, consider the following:

  • If you use the Statistics and Machine Learning Toolbox library block, you can use the Fixed-Point Tool (Fixed-Point Designer) to convert a floating-point model to fixed point.

  • Support for variable-size arrays must be enabled for a MATLAB Function block with the knnsearch function.
