circularArray

Create circular antenna array

expand all in page

Description

The circularArray object creates a circular antenna array. Circular array finds application in direction of arrival (DoA) systems. You can use circular arrays to perform 2-D scanning, while lowering element counts. These arrays also have the ability for 360-degree scanning. The individual elements in the circular array are part of the same array environment. This property reduces the impact of edge effects and other coupling variation.

Creation

Syntax

array = circularArray
array = circularArray(Name=Value)

Description

array = circularArray creates a circular antenna array in the xy-plane.

array = circularArray(Name=Value) sets properties using one or more name-value arguments. Name is the property name and Value is the corresponding value. You can specify several name-value arguments in any order as Name1=Value1,...,NameN=ValueN. Properties that you do not specify, retain their default values.

For example, array = circularArray(Element=monopole,NumElements=8) creates a circular array of 8 monopole antennas.

example

Properties

expand all

Individual antenna type, specified as a single antenna object for homogeneous array or a vector of antenna objects of same type with varying dimensions and load for heterogeneous array. The antenna object can be an element from the Antenna Catalog or an antenna without a substrate created using customAntennaGeometry, customAntennaMesh, customAntennaStl, or customAntenna objects.

Note

Following antennas are not supported as an element:

Example: dipole

Example: [monopole monopole(Height=2)]

Example: customAntenna

Number of elements in the array,specified as a positive scalar integer. The elements in the array are arranged along the x-axis.

Example: 4

Data Types: double

Radius of array, specified as a positive scalar integer in meters.

Example: 0.4

Data Types: double

Starting angle offset for first element in array, specified as a real scalar in degrees.

Example: 8

Data Types: double

Excitation amplitude for antenna elements in the array, specified as a real positive vector of size 'Element'.

Example: [0 1]

Data Types: double

Phase shift for each element in the array, specified as a real vector of size 'Element' in degrees.

Example: [0 2]

Data Types: double

Tilt angle of the array in degrees, specified as a scalar or vector. For more information, see Rotate Antennas and Arrays.

Example: 90

Example: Tilt=[90 90],TiltAxis=[0 1 0;0 1 1] tilts the array at 90 degrees about the two axes, defined by the vectors.

Data Types: double

Tilt axis of the array, specified as one of these values:

  • Three-element vectors of Cartesian coordinates in meters. In this case, each vector starts at the origin and lies along the specified points on the x-, y-, and z-axes.

  • Two points in space, specified as a 2-by-3 matrix corresponding to two three-element vectors of Cartesian coordinates. In this case, the array rotates around the line joining the two points.

  • "x", "y", or "z" to describe a rotation about the x-, y-, or z-axis, respectively.

For more information, see Rotate Antennas and Arrays.

Example: [0 1 0]

Example: [0 0 0;0 1 0]

Example: "Z"

Data Types: double | string

Object Functions

arrayFactorArray factor in dB
axialRatioCalculate and plot axial ratio of antenna or array
beamwidthBeamwidth of antenna
chargeCharge distribution on antenna or array surface
correlationCorrelation coefficient between two antennas in array
currentCurrent distribution on antenna or array surface
designDesign prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects
efficiencyCalculate and plot radiation efficiency of antenna or array
EHfieldsElectric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays
feedCurrentCalculate current at feed for antenna or array
impedanceCalculate and plot input impedance of antenna or scan impedance of array
infoDisplay information about antenna, array, or platform
layoutDisplay array or PCB stack layout
memoryEstimateEstimate memory required to solve antenna or array mesh
meshMesh properties of metal, dielectric antenna, or array structure
meshconfigChange meshing mode of antenna, array, custom antenna, custom array, or custom geometry
msiwriteWrite antenna or array analysis data to MSI planet file
optimizeOptimize antenna or array using SADEA optimizer
patternPlot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array
patternAzimuthAzimuth plane radiation pattern of antenna or array
patternElevationElevation plane radiation pattern of antenna or array
patternMultiplyRadiation pattern of array using pattern multiplication
peakRadiationCalculate and mark maximum radiation points of antenna or array on radiation pattern
phaseShiftCalculate phase shift values for arrays or multi-feed PCB stack
rcsCalculate and plot monostatic and bistatic radar cross section (RCS) of platform, antenna, or array
returnLossCalculate and plot return loss of antenna or scan return loss of array
showDisplay antenna, array structures, shapes, or platform
sparametersCalculate S-parameters for antenna or array
stlwriteWrite mesh information to STL file
vswrCalculate and plot voltage standing wave ratio (VSWR) of antenna or array element

Examples

collapse all

Open Live Script

Create a circular antenna array using 10 antenna elements. View the layout of the antenna elements in the array.

ca = circularArray(NumElements=10)
ca =
  circularArray with properties:

           Element: [1x1 dipole]
       NumElements: 10
            Radius: 1
       AngleOffset: 0
    AmplitudeTaper: 1
        PhaseShift: 0
              Tilt: 0
          TiltAxis: [1 0 0]


figure
layout(ca)

Figure contains an axes object. The axes object with title Array Layout, xlabel x (m), ylabel y (m) contains 11 objects of type scatter, text.

View the array.

figure
show(ca)

Figure contains an axes object. The axes object with title circularArray of dipole antennas, xlabel x (m), ylabel y (m) contains 30 objects of type patch, surface. These objects represent PEC, feed.

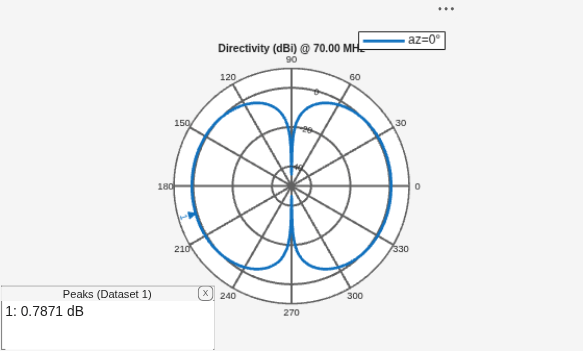

Plot the elevation pattern of the circular array at a frequency of 70 MHz.

figure
patternElevation(ca,70e6)

Figure contains an axes object and an object of type uicontainer. The hidden axes object contains 2 objects of type line, text. This object represents az=0° .

Version History

Introduced in R2016b
