rectangularArray

Create rectangular antenna array

expand all in page

Description

The rectangularArray class creates a rectangular antenna array in the xy-plane. The default rectangular array is a four-element dipole array in a 2-by-2 rectangular lattice. The dipoles are center-fed. Each dipole resonates at 70MHz when isolated.

Creation

Syntax

array = rectangularArray
array = rectangularArray(Name=Value)

Description

example

array = rectangularArray creates a rectangular antenna array in the xy-plane.

example

array = rectangularArray(Name=Value) creates a rectangular array, with additional Properties specified by one or more name-value arguments. Name is the property name and Value is the corresponding value. You can specify several name-value arguments in any order as Name1=Value1, ..., NameN=ValueN. Properties that you do not specify retain their default values.

Output Arguments

expand all

Rectangular array, returned as an rectangularArray object.

Properties

expand all

Individual antenna type, specified as a single antenna object for homogeneous array or a vector of antenna objects of same type with varying dimensions and load for heterogeneous array. The antenna object can be an element from the Antenna Catalog, or a linearArray or rectangularArray, or an antenna without a substrate created using customAntennaGeometry, customAntennaMesh, customAntennaStl, or customAntenna objects.

Note

Following antennas are unsupported as an element:

Example: monopole

Example: [monopole monopole(Height=2)]

Example: rectangularArray

Example: customAntenna

Number of antenna elements in row and column of array, specified as a two-element vector.

Example: [4 4]

Row spacing between two antenna elements, specified as a scalar or vector in meters. By default, the antenna elements are spaced 2m apart.

Example: [5 6]

Data Types: double

Column spacing between two antenna elements, specified as a scalar or vector in meters. By default, the antenna elements are spaced 2m apart.

Example: [3 4]

Data Types: double

Antenna elements spatial arrangement, specified as a text input.

Example: "Triangular"

Data Types: string

Excitation amplitude of antenna elements, specified as a scalar or vector. Set the property value to 0 to model dead elements.

Example: 3

Data Types: double

Phase shift for antenna elements, specified as a scalar or vector in degrees.

Example: [3 3 0 0]

Data Types: double

Tilt angle of the array in degrees, specified as a scalar or vector. For more information, see Rotate Antennas and Arrays.

Example: 90

Example: Tilt=[90 90],TiltAxis=[0 1 0;0 1 1] tilts the array at 90 degrees about the two axes, defined by the vectors.

Data Types: double

Tilt axis of the array, specified as one of these values:

  • Three-element vectors of Cartesian coordinates in meters. In this case, each vector starts at the origin and lies along the specified points on the x-, y-, and z-axes.

  • Two points in space, specified as a 2-by-3 matrix corresponding to two three-element vectors of Cartesian coordinates. In this case, the array rotates around the line joining the two points.

  • "x", "y", or "z" to describe a rotation about the x-, y-, or z-axis, respectively.

For more information, see Rotate Antennas and Arrays.

Example: [0 1 0]

Example: [0 0 0;0 1 0]

Example: "Z"

Data Types: double | string

Object Functions

showDisplay antenna, array structures, shapes, or platform
infoDisplay information about antenna or array
arrayFactorArray factor in dB
beamwidthBeamwidth of antenna
chargeCharge distribution on antenna or array surface
correlationCorrelation coefficient between two antennas in array
currentCurrent distribution on antenna or array surface
designDesign prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects
efficiencyRadiation efficiency of antenna
EHfieldsElectric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays
impedanceInput impedance of antenna or scan impedance of array
layoutDisplay array or PCB stack layout
meshMesh properties of metal, dielectric antenna, or array structure
meshconfigChange meshing mode of antenna, array, custom antenna, custom array, or custom geometry
optimizeOptimize antenna or array using SADEA optimizer
patternPlot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array
patternAzimuthAzimuth plane radiation pattern of antenna or array
patternElevationElevation plane radiation pattern of antenna or array
rcsCalculate and plot radar cross section (RCS) of platform, antenna, or array
returnLossReturn loss of antenna or scan return loss of array
sparametersCalculate S-parameters for antennas and antenna arrays
vswrVoltage standing wave ratio (VSWR) of antenna or array element

Examples

collapse all

Open Live Script

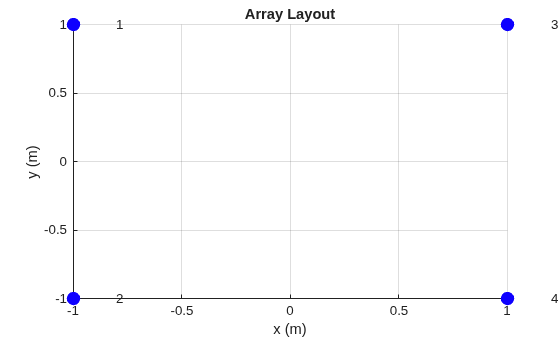

Create and plot the layout of a rectangular array of four dipoles.

ra = rectangularArray;
ra.Size = [2 2];
layout(ra);

Figure contains an axes object. The axes object with title Array layout, xlabel x (m), ylabel y (m) contains 5 objects of type scatter, text.

Open Live Script

Calculate the scan impedance of a 2-by-2 rectangular array of dipoles at 70MHz.

h = rectangularArray(Size=[2 2]);
Z = impedance(h,70e6)
Z = 1×4 complex

  26.6507 -57.4168i  26.6335 -57.4313i  26.6507 -57.4168i  26.6335 -57.4313i
Open Live Script

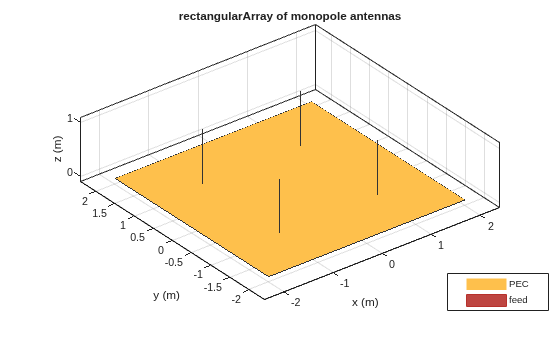

Create a rectangular array of monopoles.

m1 = monopole;
mra = rectangularArray(Element=m1);
show(mra)

Figure contains an axes object. The axes object with title rectangularArray of monopole antennas, xlabel x (m), ylabel y (m) contains 14 objects of type patch, surface. These objects represent PEC, feed.

Open Live Script

Create an array of discones with 3 m. element spacing.

la = linearArray(Element=discone);
la.ElementSpacing = 3;
show(la)

Figure contains an axes object. The axes object with title linearArray of discone antennas, xlabel x (m), ylabel y (m) contains 6 objects of type patch, surface. These objects represent PEC, feed.

Create a rectangular array of the linear array.

ra = rectangularArray(Element=la)
ra =
  rectangularArray with properties:

           Element: [1x1 linearArray]
              Size: [2 2]
        RowSpacing: 2
     ColumnSpacing: 2
           Lattice: 'Rectangular'
    AmplitudeTaper: 1
        PhaseShift: 0
              Tilt: 0
          TiltAxis: [1 0 0]


show(ra)

Figure contains an axes object. The axes object with title rectangularArray of linearArray antennas, xlabel x (m), ylabel y (m) contains 24 objects of type patch, surface. These objects represent PEC, feed.

References

[1] Balanis, C.A. Antenna Theory. Analysis and Design, 3rd Ed. New York: Wiley, 2005.

Version History

Introduced in R2015a
