Propulsion
R2026bPropulsion systems in powertrains include internal combustion spark-ignition (SI) engines, compression-ignition (CI) engines, and electric motors. Use the propulsion blocks to assemble engine subsystems and controllers for hardware-in-the-loop (HIL) engine control design, vehicle-level fuel economy, and performance simulations.
Blocks
Engines and Controllers
 | Mapped CI Engine | Compression-ignition engine model using lookup tables |
 | Mapped SI Engine | Spark-ignition engine model using lookup tables |
 | Simple Engine | Simplified engine model using lookup tables |
 | CI Controller | Compression-ignition controller that includes air mass flow, torque, and EGR estimation |
 | SI Controller | Spark-ignition engine controller that uses the driver torque request |
Components
 | CI Core Engine | Compression-ignition engine from intake to exhaust port |
 | SI Core Engine | Spark-ignition engine from intake to exhaust port |
 | Mapped Core Engine | Steady-state core engine model using lookup tables |
 | Boost Drive Shaft | Boost drive shaft speed |
 | Compressor | Compressor for boosted engines |
 | Control Volume System | Constant volume open thermodynamic system with heat transfer |
 | Flow Boundary | Flow boundary for ambient temperature and pressure |
 | Flow Restriction | Isentropic ideal gas flow through an orifice |
 | Heat Exchanger | Intercooler or exhaust gas recirculation (EGR) cooler |
 | Turbine | Turbine for boosted engines |
Motors and Inverters
 | Flux-Based PMSM | Flux-based permanent magnet synchronous motor |
 | Induction Motor | Three-phase induction motor |
 | Interior PMSM | Three-phase interior permanent magnet synchronous motor with sinusoidal back electromotive force |
 | Mapped Motor | Mapped motor and drive electronics operating in torque-control mode |
 | Surface Mount PMSM | Three-phase exterior permanent magnet synchronous motor with sinusoidal back electromotive force |
 | Three-Phase Voltage Source Inverter | Three-phase voltage source inverter |
Controllers
 | Equivalent Consumption Minimization Strategy | Energy management controller for P0–P4 hybrid electric vehicles |
 | Flux-Based PM Controller | Controller for a flux-based permanent magnet synchronous motor |
 | IM Controller | Internal torque-based, field-oriented controller for an induction motor with an optional outer-loop speed controller |
 | Interior PM Controller | Torque-based, field-oriented controller for an internal permanent magnet synchronous motor |
 | Surface Mount PM Controller | Torque-based, field-oriented controller for a surface mount permanent magnet synchronous motor |
Topics
Engines
- Calibrate and Resize Engines and Electric Motors
Use reference applications and virtual vehicle composer to calibrate and resize engines and electric motors. - Calibrate, Validate, and Optimize CI Engine with Dynamometer Test Harness
Simulate a compression-ignition (CI) engine and controller under a dynamometer test harness using the CI engine dynamometer reference application. - Calibrate, Validate, and Optimize SI Engine with Dynamometer Test Harness
Simulate a spark-ignition (SI) engine and controller under a dynamometer test harness using the SI engine dynamometer reference application. - Calibrate, Validate, and Optimize SI H2 Engine with Dynamometer Test Harness
Simulate a hydrogen-fueled spark-ignition (SI) engine and controller under a dynamometer test harness using the SI H2 engine dynamometer reference application. - Calibrate ECMS Block for Objective Hybrid Vehicle Fuel Economy Assessment
Calibrate the Equivalent Consumption Minimization Strategy block in the HEV P2 reference application.
Electric Motors
- Develop, Resize, and Calibrate Motors with Dynamometer Test Harness
Develop a control test bench, resize e-motors, and calibrate controllers using the motor dynamometer reference application. - Generate Optimal Current Controller Calibration Tables for Permanent Magnet Synchronous Motors
Generate optimized current controller and flux parameters for permanent magnet synchronous motor (PMSM) blocks.
Related Information
- Engine Calibration Maps
- Estimate Motor Parameters Using Motor Control Blockset Parameter Estimation Tool (Motor Control Blockset)
Featured Examples
Build Conventional Vehicle Model
Build a vehicle with an internal combustion engine using the conventional vehicle reference application.
Calibrate Mapped Electric Motors Using Data
Use the Virtual Vehicle Composer to calibrate mapped electric motors from imported data.
Calibrate Mapped CI Engine Using Data
Use the Virtual Vehicle Composer to calibrate mapped CI engines from imported data.
Calibrate Mapped SI Engine Using Data
Use the Virtual Vehicle Composer to calibrate mapped SI engines from imported data.

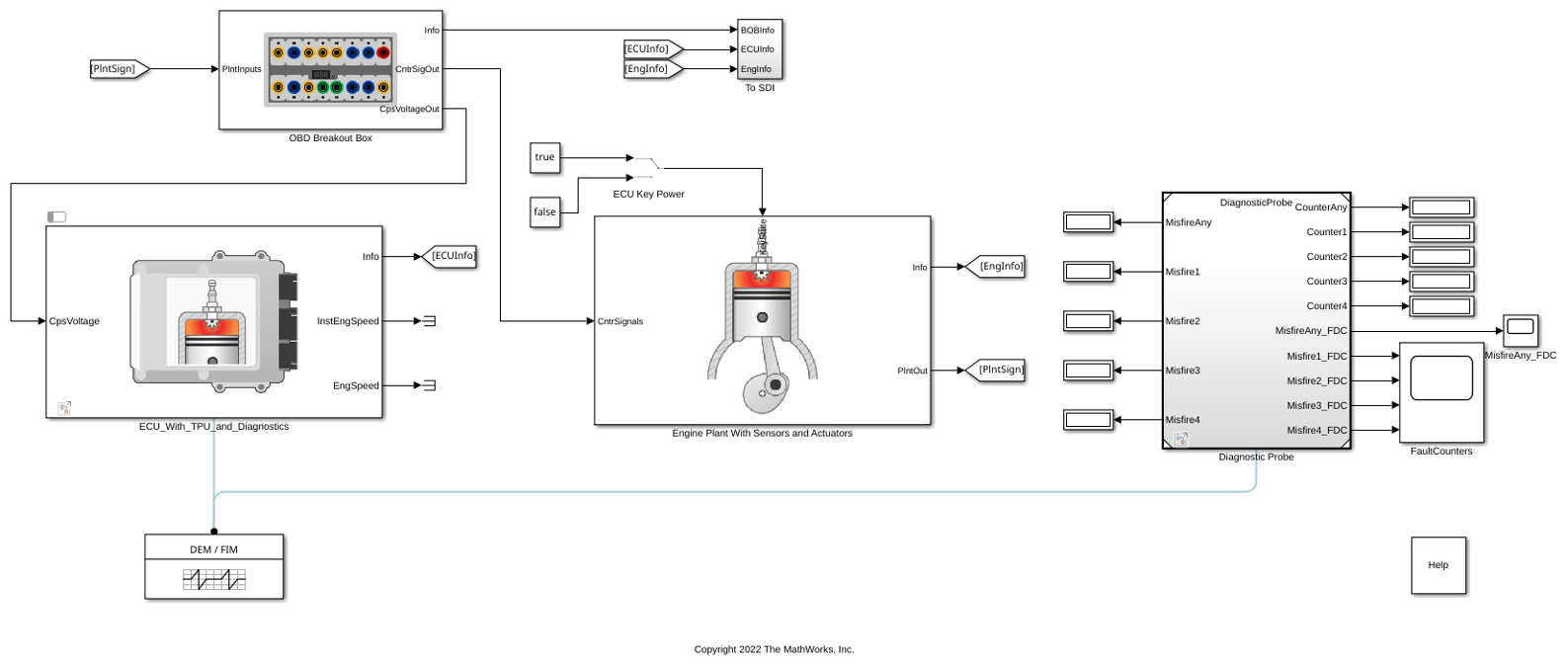

Detect Misfires Using On-Board Diagnostics
Implement onboard-diagnostics (OBD) to detect and report engine misfires.
Resize CI Engines
Resize compression-ignition (CI) engines using the dynamometer reference application.
Resize SI Engines
Resize the spark-ignition (SI) engines using the dynamometer reference application.
Resize Electric Motors
Resize motors using the dynamometer reference application.

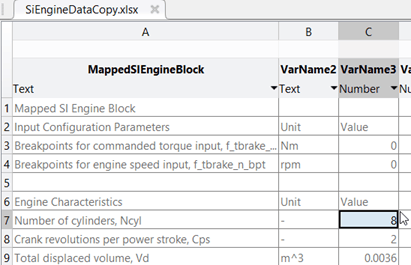

Read and Write Block Parameters to Excel
Read data and write Mapped SI Engine block parameters to an Excel® data file.
