LTV System

Simulate linear time-varying (LTV) systems

Since R2024a

expand all in page
  • LTV System block

Libraries:
Control System Toolbox / Linear Parameter Varying

Description

A linear time-varying (LTV) system is a linear state-space model whose dynamics vary with time. In MATLAB®, an LTV model is represented in a state-space form using coefficients that are time dependent.

Mathematically, you can represent an LTV system as follows.

dx(t)=dx0(t)+A(t)(x(t)−x0(t))+B(t)(u(t)−u0(t))y(t)=y0(t)+C(t)(x(t)−x0(t))+D(t)(u(t)−u0(t))x(0)=xinit

Here,

  • u(t) are the inputs

  • y(t) are the outputs

  • x(t) are the model states with initial value xinit

  • dx(t) is the state derivative vector x˙ for continuous-time systems and the state update vector x[k+1] for discrete-time systems. Here, k is the integer index that counts the number of sampling periods Ts.

  • A(t), B(t), C(t), and D(t) are the state-space matrices dependent of time t.

  • dx0(t), x0(t), u0(t), and y0(t) are the offsets in the values of dx(t), x(t), u(t) and y(t) at a given time t.

    You can obtain the offsets by returning additional linearization information when calling functions such as linearize (Simulink Control Design) or getIOTransfer (Simulink Control Design).

The block accepts an array of state-space models with operating point information. The block extracts the time dependence information from the SamplingGrid property of the LTI array and picks the local dynamics from this operating space. The block uses this array with data interpolation and extrapolation techniques for simulation.

You can obtain the offsets by returning additional linearization information when calling functions such as linearize (Simulink Control Design) or getIOTransfer (Simulink Control Design).

Examples

expand all

This example uses:

Open Live Script

This example shows how to simulate a linear time-varying (LTV) model using the LTV System block. The LTV System block interpolates a state-space array to model the LTV response. In this example, you batch linearize the model defined by the following equation at time snapshots to obtain the array of linear state-space models.

x˙=-11+tx

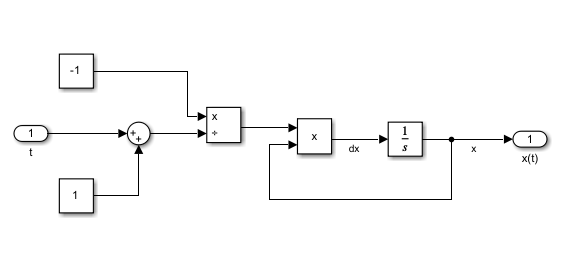

Open the model.

mdl = 'nonLinModel';
open_system(mdl);

Specify the initial condition.

xinit = 10;

Simulate the model and extract operating points at time snapshots.

tlin = logspace(-1,log10(30),20);
op = findop(mdl,tlin);

Specify model linear analysis points.

io(1) = linio('nonLinModel/Ramp',1,'input');
io(2) = linio('nonLinModel/Plant',1,'output');

Compute the linearizations along with offsets.

opt = linearizeOptions('StoreOffsets',true);
[linsys,~,info] = linearize(mdl,op,io,opt);
linsys.SamplingGrid = struct('Time',tlin);

This linearization result is a state-space array of the system.

size(linsys)
20x1 array of state-space models.
Each model has 1 outputs, 1 inputs, and 1 states.

You can now use this array with the LTV System block.

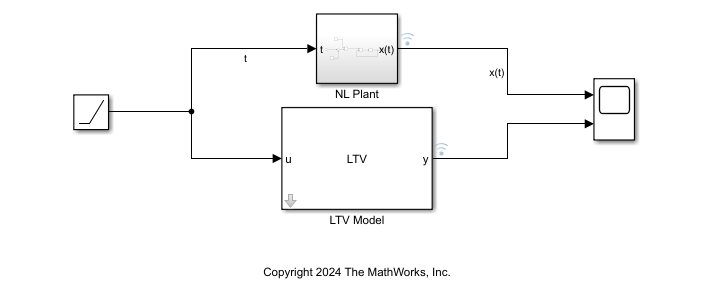

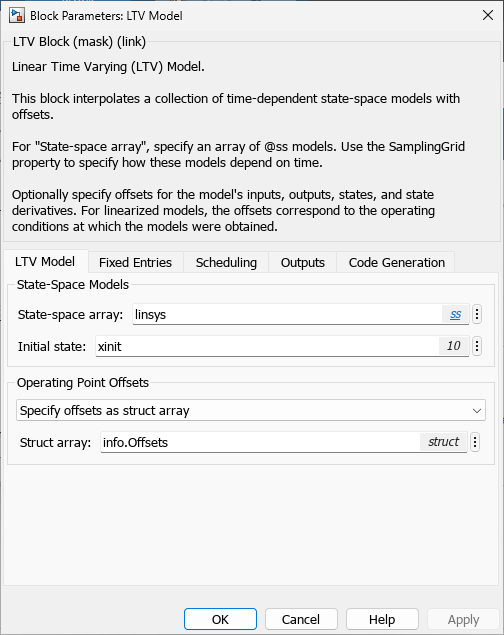

Open the CompareNLandLTV model. This model contains the preconfigured LTV block.

ltvMdl = "CompareNLandLTV";
open_system(ltvMdl)

Simulate the LTV model and compare the results.

out = sim(ltvMdl);
plot(out.logsout{2}.Values.Time,out.logsout{2}.Values.Data,...
    out.logsout{1}.Values.Time,out.logsout{1}.Values.Data,"r--")
legend("Nonlinear model","LTV model")
grid on

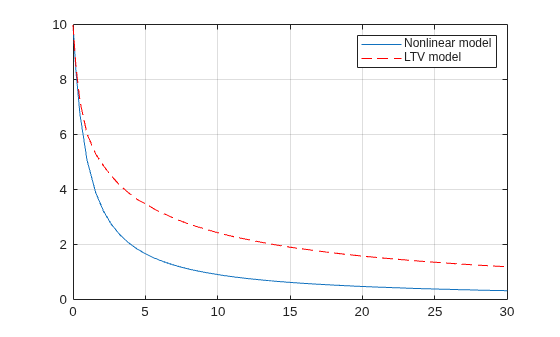

Figure contains an axes object. The axes object contains 2 objects of type line. These objects represent Nonlinear model, LTV model.

The LTV model provides a good approximation for the nonlinear model simulation.

Close the models.

close_system(mdl,0);
close_system(ltvMdl,0);

Limitations

  • Internal delays cannot be extrapolated to be less than their minimum value in the state-space model array.

Ports

Input

expand all

Specify the input signal u(t). In multi-input case, this port accepts a signal of the dimension of the input.

Since R2024b

Initial conditions to use with the local model to start the simulation, specified as a vector of length equal to the number of model states.

Dependencies

To enable this port, set Initial condition source to external.

Output

expand all

Response of the linear time-varying model.

Values of the model states

Dependencies

To enable this port, select Output states on the Outputs tab of the block parameters.

Values of the state derivatives.

Dependencies

To enable this port, select Output state derivatives (continuous-time) or updates (discrete-time) on the Outputs tab of the block parameters.

Local state-space model data at the major simulation time steps, returned as a bus signal with these elements.

  • A — State matrix

  • B — Input matrix

  • C — Output matrix

  • D — Feedthrough matrix

  • InputDelay — Input delay

  • OutputDelay — Output delay

  • InternalDelay — Internal delays in the model

Dependencies

To enable this port, select Output interpolated state-space data on the Outputs tab of the block parameters.

LTV model offset data at the major simulation time steps, returned as a bus signal with these elements.

  • InputOffset

  • OutputOffset

  • StateOffset

  • StateDerivativeOffset

Dependencies

To enable this port, select Output interpolated offsets on the Outputs tab of the block parameters.

Parameters

expand all

To edit block parameters interactively, use the Property Inspector. From the Simulink® Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

LTV Model Tab

An array of state-space (ss or idss (System Identification Toolbox)) models. All the models in the array must use the same definition of states.

The state-space array must specify the dependence on time in the SamplingGrid property. You can also specify the model offsets in the Offsets property of the array when you set the Operating Point Offsets parameter to Use offsets in state-space array, See the ss model reference page for more information on these properties.

When the block is in a model with synchronous state control (see the State Control (HDL Coder) block), you must specify an array of discrete-time models.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter: sys
Values: ss or idss model array name in quotes

Example: set_param(gcb,"sys","sysArrayName")

Since R2024b

Specify the initial condition source.

  • internal — Specify the initial conditions of the states using the Initial condition parameter.

  • external — Specify the initial conditions of the states at the IC input port of the block.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter: InitialConditionSource
Values: internal (default) | external

Initial conditions to use with the local model to start the simulation, specified as a vector of length equal to the number of model states.

Dependencies

To enable this parameter, set Initial condition source to internal.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter: InitialCondition
Values: "0" (default) | initial state values in quotes

Example: set_param(gcb,"InitialCondition","[0 0.1]")

Specify the format for operating point offsets.

  • Specify Offsets as double arrays — Specify offsets using the Input offset, Output offset, State Offset, and State derivative/update offset parameters.

  • Specify offsets as struct array — Specify offsets as a structure array with fields u, y, x, and dx specifying the input, output, state, and state derivative offsets, respectively.

  • Use offsets in state-space array — Use the offsets specified in the Offsets property of the state-space array.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter: opSpecOption
Values: "Specify Offsets as double arrays" (default) | "Specify offsets as struct array" | "Use offsets in state-space array"

Example: set_param(gcb,"opSpecOption","Specify offsets as struct array")

Offsets in input u(t), specified as one of the following:

  • 0 — Use when there are no input offsets.

  • Double vector of length equal to the number of inputs — Use when input offset is the same across the scheduling space.

  • Double array of size nu-by-1-by-N — Use when offsets are present and they vary across the scheduling space. Here, nu is the number of inputs and N is the number of time snapshots. For example, if your model has three inputs, two outputs, and four states and is scheduled over 10 time snapshots, the array size must be 3-by-1-by-10. Use size(sys) to determine the size of the state-space array sys.

Dependencies

To enable this parameter, set the Operating Point Offsets format to Specify Offsets as double arrays

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter: uOffset
Values: "0" (default) | array name in quotes

Example: set_param(gcb,"uOffset","uOffArray")

Offsets in output y(t), specified as one of the following:

  • 0 Use when there are no output offsets.

  • Double vector of length equal to the number of outputs. Use when output offsets are the same across the scheduling space.

  • Double array of size ny-by-1-by-N — Use when offsets are present and they vary across the scheduling space. Here, ny is the number of outputs and N is the number of time snapshots. For example, if your model has three inputs, two outputs, and four states and is scheduled over 10 time snapshots, the array size must be 2-by-1-by-10. Use size(sys) to determine the size of the state-space array sys.

Dependencies

To enable this parameter, set the Operating Point Offsets format to Specify Offsets as double arrays

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter: yOffset
Values: "0" (default) | array name in quotes

Example: set_param(gcb,"yOffset","yOffArray")

Offsets in states x(t), specified as one of the following:

  • 0 — Use when there are no state offsets.

  • Double vector of length equal to the number of states — Use when the state offsets are the same across the scheduling space.

  • Double array of size nx-by-1-by-N — Use when offsets are present and they vary across the scheduling space. Here, nx is the number of states and N is the number of time snapshots. For example, if your model has three inputs, two outputs, and four states and is scheduled over 10 time snapshots, the array size must be 4-by-1-by-10. Use size(sys) to determine the size of the state-space array sys.

Dependencies

To enable this parameter, set the Operating Point Offsets format to Specify Offsets as double arrays

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter: xOffset
Values: "0" (default) | array name in quotes

Example: set_param(gcb,"xOffset","xOffArray")

Offsets in state derivative or update variable dx(t), specified as one of the following:

  • If you obtained the linear system array by linearization under equilibrium conditions, select the Assume equilibrium operating conditions option. This option corresponds to an offset of dx¯(t)=0 for a continuous-time system and dx¯(t)=x¯(t) for a discrete-time system. This option is selected by default.

  • If the linear system contains at least one system that you obtained under non-equilibrium conditions, clear the Assume equilibrium operating conditions option. Specify one of the following in the Offset value field:

    • If the dx offset values are the same across the scheduling space, specify as a double vector of length equal to the number of states.

    • If the dx offsets are present and they vary across the scheduling space, specify as a double array of size nx-by-1-by-N — Use when offsets are present and they vary across the scheduling space. Here, nx is the number of states and N is the number of time snapshots. For example, if your model has three inputs, two outputs, and four states and is scheduled over 10 time snapshots, the array size must be 4-by-1-by-10. Use size(sys) to determine the size of the state-space array sys.

Dependencies

To enable this parameter, set the Operating Point Offsets format to Specify Offsets as double arrays and disable Assume equilibrium operating conditions.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter: dxOffset
Values: "0" (default) | array name in quotes

Example: set_param(gcb,"dxOffset","dxOffArray")

Model offsets, specified as a structure with these fields.

FieldDescription
uInput offsets
yOutput offsets
xState offsets
dxState derivative offsets

  • If offset values are the same across the scheduling space, specify as a double vector of length equal to the number of inputs, outputs, or states for the corresponding fields.

  • If the offsets vary across scheduling space, specify a multidimensional array for each field. For instance, suppose that your model has three inputs, two outputs, and four states. If you linearize your model using a 5-by-6 array of operating points, the structure array size must be 5-by-6 and each entry must contain a vector of length equal to the number of inputs, outputs, or states for the corresponding fields.

The linearize (Simulink Control Design) function returns offsets in this format in the info.Offsets output when you linearize with StoreOffsets option set to true.

Dependencies

To enable this parameter, set the Operating Point Offsets format to Specify Offsets as struct array

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter: Offset
Values: "struct" (default) | structure array name in quotes

Example: set_param(gcb,"Offset","OffsetStructName")

Fixed Entries Tab

In certain cases, your LTV model may contain coefficients with small variations. Using the parameters on this tab, you can specify which model matrices are fixed and their nominal values to override entries in model data. In some situations, you may want to replace a time-dependent matrix such as A(t) with a fixed value A* for simulation. For example, A* may represent an average value over the scheduling range. By default, the block uses the State-space array data to decide which entries are fixed and which entries vary (for performance reasons, the block only interpolates varying entries).

With this tab, you can override this default behavior, for example, to try and simplify the LTV model. For example, you can decide that the third entry of A does not vary much and that you want to fix it to its average value. The logical arrays specify which entries should be treated as fixed, and Read values from specifies which value to use for these fixed entries. false corresponds to not overriding the LTI array data, that is, rely on the data to decide whether this entry is fixed or varying.

Specify the location of these coefficients as one of the following:

  • Scalar Boolean (true or false), if all entries of a matrix are to be treated the same way.

    The default value is false for the state-space matrices and delay vectors, which means that they are treated as free.

  • Logical matrix of a size compatible with the size of the corresponding matrix:

    State-space matrix

    Size of fixed entry matrix

    A matrix

    nx-by-nx

    B matrix

    nx-by-nu

    C matrix

    ny-by-nx

    D matrix

    ny-by-nu

    Input delay

    nu-by-1

    Output delay

    ny-by-1

    Internal delay

    ni-by-1

    where, nu is the number of inputs, ny is the number of outputs, nx is the number of states, ni is the length of internal delay vector.

  • Numerical indices to specify the location of fixed entries. See sub2ind reference page for more information on how to generate numerical indices corresponding to a given subscript (i,j) for an element of a matrix.

After you specify the location, provide the values of fixed coefficient using the Read values from parameter.

State-space model that provides the values of the fixed coefficients, specified as one of the following:

  • First model in state-space array — The first model in the state-space array is used for the fixed coefficients of the LPV model. In the following example, the state-space array is specified by object sys and the fixed coefficients are taken from model sys(:,:,1).

    % Specify a 4-by-5 array of state-space models.
sys = rss(4,2,3,4,5);
a = 1:4;
b = 10:10:50;
[av,bv] = ndgrid(a,b);
% Use "alpha" and "beta" variables as scheduling parameters.
sys.SamplingGrid = struct('alpha',av,'beta',bv);

    Fixed coefficients are taken from the model sysFixed = sys(:,:,1), which corresponds to [alpha=1, beta=10]. If the (2,1) entry of A matrix is forced to be fixed, its value used during the simulation is sysFixed.A(2,1).

  • Custom state-space model — Specify a different state-space model for fixed entries. Specify a variable for the fixed model in the Custom model field. The fixed model must use the same state basis as the state-space array in the LPV model.

Scheduling Tab

Interpolation method. Defines how the state-space data must be computed for scheduling parameter values that are located away from their grid locations.

Specify one of the following options:

  • Flat — Choose the state-space data at the grid point closest, but not larger than, the current point. The current point is the value of the scheduling parameters at current time.

  • Nearest — Choose the state-space data at the closest grid point in the scheduling space.

  • Linear — Obtain state-space data by linear interpolation of the nearest 2d neighbors in the scheduling space, where d = number of scheduling parameters.

The default interpolation scheme is Linear for regular grids of scheduling parameter values. For irregular grids, the Nearest interpolation scheme is always used regardless of the choice you made. To learn more about regular and irregular grids, see Regular vs. Irregular Grids.

The Linear method provides the highest accuracy but takes longer to compute. The Flat and Nearest methods are good for models that have mode-switching dynamics.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter: IMethod
Values: "Linear" (default) | "Nearest" | "Flat"

Example: set_param(gcb,"IMethod","Flat")

Extrapolation method. Defines how to compute the state-space data for scheduling parameter values that fall outside the range over which the state-space array has been provided (as specified in the SamplingGrid property).

Specify one of the following options:

  • Clip (default) — Disables extrapolation and returns the data corresponding to the last available scheduling grid point that is closest to the current point.

  • Linear — Fits a line between the first or last pair of values for each scheduling parameter, depending upon whether the current value is less than the first or greater than the last grid point value, respectively. This method returns the point on that line corresponding to the current value. Linear extrapolation requires that the interpolation scheme be linear too.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter: EMethod
Values: "Clip" (default) | "Linear"

Example: set_param(gcb,"EMethod","Linear")

The block determines the location of the current scheduling parameter values in the scheduling space using a prelookup algorithm. Select Linear search or Binary search. Each search method has speed advantages in different situations. For more information on this parameter, see the Prelookup (Simulink) block reference page.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter: IndexSearch
Values: "Binary Search" (default) | "Linear Search"

Example: set_param(gcb,"IndexSearch","Linear Search")

Select this check box when you want the block to start its search using the index found at the previous time step. For more information on this parameter, see the Prelookup (Simulink) block reference page.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter: IndexBegin
Values: "on" (default) | "off"

Example: set_param(gcb,"IndexBegin","off")

Code Generation Tab

Block data type, specified as double or single.

Dependencies

To enable this option, use a discrete-time state-space model as input.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter: DataType
Values: "double" (default) | "single"

Example: set_param(gcb,"DataType","single")

Initial memory allocation for the number of input points to store for models that contain delays. If the number of input points exceeds the initial buffer size, the block allocates additional memory. The default size is 1024.

When you run the model in Accelerator mode or build the model, make sure the initial buffer size is large enough to handle maximum anticipated delay in the model.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter: InitBufferSize
Values: "1024" (default) | positive integer greater than 5 in quotes

Example: set_param(gcb,"InitBufferSize","512")

Specify whether to use a fixed buffer size to save delayed input and output data from previous time steps. Use this option for continuous-time LTV systems that contain input or output delays. If the buffer is full, new data replaces data already in the buffer. The software uses linear extrapolation to estimate output values that are not in the buffer.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter: FixedBuffer
Values: "off" (default) | "on"

Example: set_param(gcb,"FixedBuffer","on")

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2024a

expand all

See Also

|

Topics
