Estimate State-Space Model

Estimate state-space model using time or frequency data in the Live Editor

expand all in page

Description

The Estimate State-Space Model task lets you interactively estimate and validate a state-space model using time or frequency data. You can define and vary the model structure and specify optional parameters, such as initial condition handling and search method. The task automatically generates MATLAB® code for your live script. For more information about Live Editor tasks generally, see Add Interactive Tasks to a Live Script.

State-space models are models that use state variables to describe a system by a set of first-order differential or difference equations, rather than by one or more nth-order differential or difference equations. State variables can be reconstructed from the measured input-output data, but are not themselves measured during the experiment.

The state-space model structure is a good choice for quick estimation because, apart from the estimation data, the model requires you to specify only one parameter, the model order. For more information about state-space estimation, see What Are State-Space Models?

The Estimate State-Space Model task is independent of the more general System Identification app. Use the System Identification app when you want to compute and compare estimates for multiple model structures.

To get started, load experiment data that contains input and output data into your MATLAB workspace and then import that data into the task. Then specify a model structure to estimate. The task provides configuration controls and plotted results that help you experiment with different model parameters and compare how well the output of each model you specify fits the input/output measurements.

Related Functions

The code that Estimate State-Space Model generates uses the following functions.

The task estimates an idss state-space model.

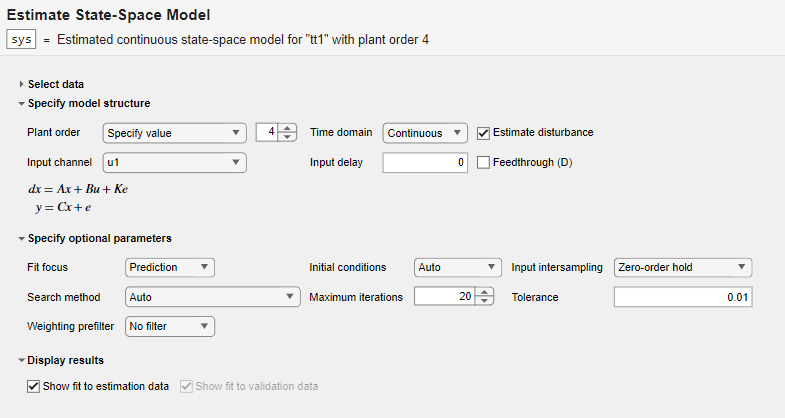

Estimate State-Space Model task in Live Editor

Open the Task

To add the Estimate State-Space Model task to a live script in the MATLAB Editor:

  • On the Live Editor tab, select Task > Estimate State-Space Model.

  • In a code block in your script, type a relevant keyword, such as state, space, or estimate. Select Estimate State Space Model from the suggested command completions.

Examples

expand all

Open Live Script

Use the Estimate State-Space Model Live Editor Task to estimate a state-space model and compare the model output to the measurement data.

Set Up Data

Load the measurement data tt1 into your MATLAB workspace. tt1 is a timetable that contains one input variable u and one output variable y.

load sdata1 tt1

Import Data into the Task

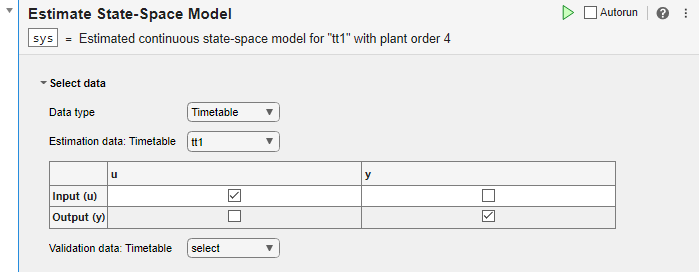

In the Select data section, set Data Type to Timetable and set Estimation data to tt11.

The task displays a table that contains the tt1 input and output variable names.

Estimate the Model Using Default Settings

Examine the model structure and optional parameters.

In the Specify model structure section, the plant order is set to its default value of 4 and the model is in the continuous-time domain. Equations below the parameters in this section display the specified structure.

In the Specify optional parameters section, parameters display the default options for state-space estimation.

Execute the task from the Live Editor tab by clicking the green arrow. You can also select Autorun to run the task automatically every time you update a parameter.

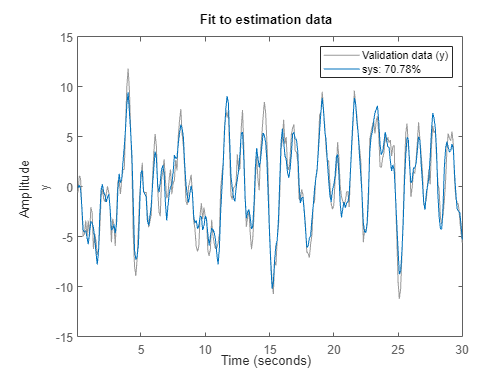

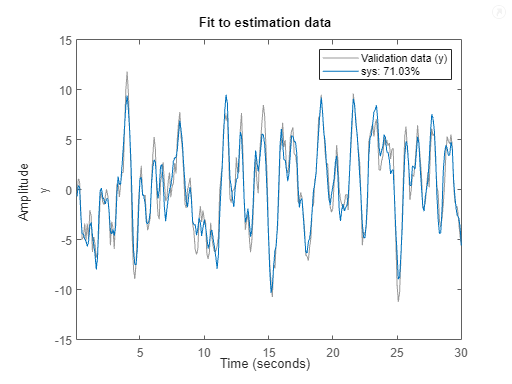

A plot displays the estimation data, the estimated model output, and the fit percentage.

Experiment with Parameter Settings

Experiment with the parameter settings and see how they influence the fit.

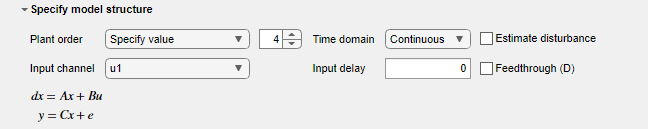

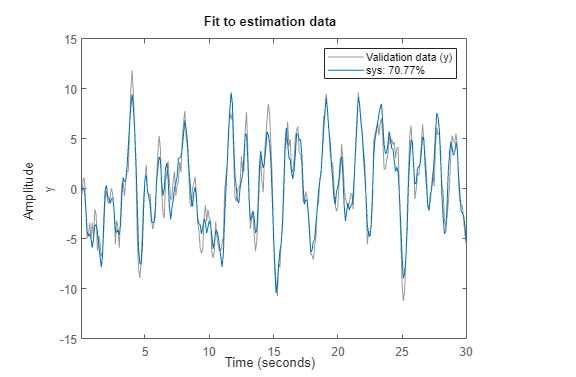

For instance, in Specify model structure, the Estimate disturbance box is selected, so the disturbance matrix K is present in the equations. If you clear the box, the K term disappears. Run the updated configuration, and see how the fit changes.

s

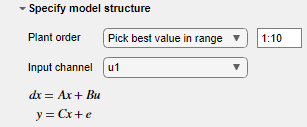

Change the Plant Order setting to Pick best value in range. The default setting is 1:10.

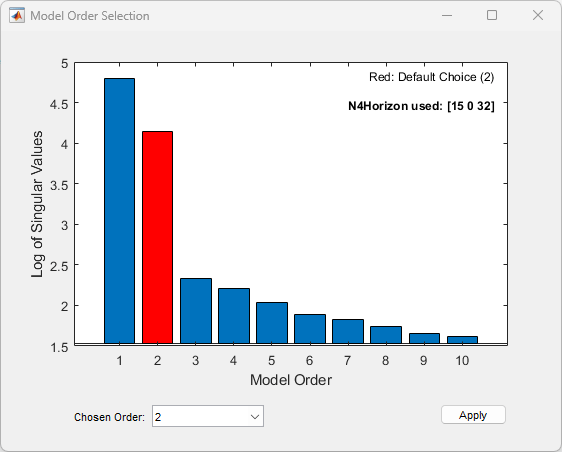

When you run the model, a Model Order Selection plot displays the contribution of each state to the model dynamic behavior. With the initial task settings for the other parameters, the plot displays a recommendation of 2 for the model order.

Accept this recommendation by clicking Apply, and see how this change affects the fit.

Generate Code

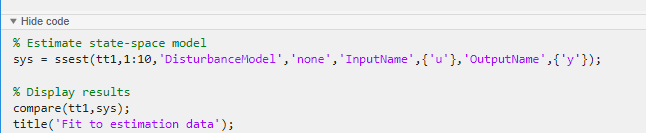

To display the code that the task generates, click at the bottom of the parameter section. The code that you see reflects the current parameter configuration of the task.

Open Live Script

Use separate estimation and validation data so that you can validate the estimated state-space model.

Set Up Data

Load the measurement data umat1 and ymat1 into your MATLAB workspace and examine its contents. Also load the sample time Ts.

load sdata1.mat umat1 ymat1 Ts

Split the data into two sets, with one half for estimation and one half for validation. The original data set has 300 samples, so each new data set has 150 samples.

u_est = umat1(1:150);
u_val = umat1(151:300);
y_est = ymat1(1:150);
y_val = ymat1(151:300);
Ts
Ts =
0.1000

Import Data into Task

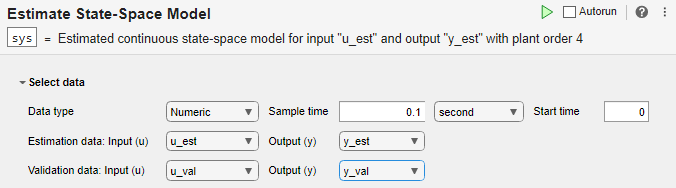

In the Select data section, set Data type to Numeric. Set Sample time to the value of Ts, which is 0.1 seconds. Select the appropriate data sets for estimation and validation.

Estimate and Validate Model

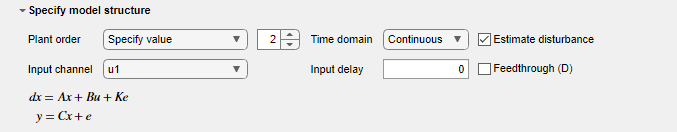

The example Estimate State-Space Model with Live Editor Task recommends a model order of 2. Use that value for Plant Order. Leave other parameters at their default values. Note that Input Channel refers not to the input data set, but to the channel index within the input data set, which for a single-input system is always u1.

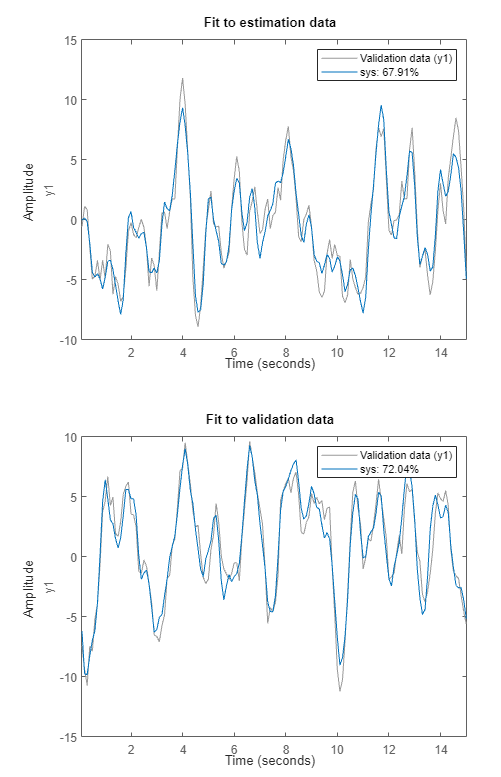

Execute the task from the Live Editor tab using Run. Executing the task creates two plots. The first plot shows the estimation results and the second plot shows the validation results.

The fit to the estimation data is somewhat worse than in Estimate State-Space Model with Live Editor Task. Estimation in the current example has only half the data with which to estimate the model. The fit to the validation data for this example is better than the fit to the estimation data.

Parameters

expand all

Select Data

The task accepts numeric measurement values that are uniformly sampled in time. Input and output signals can contain multiple channels. Data can be packaged as numeric arrays (for Numeric or Frequency), as a timetable, or in a data object, such as an iddata or idfrd object. For multiexperiment data, numeric and timetable data can be packaged as cell arrays. For cell arrays of timetables, all timetables must contain the same variable names. Data objects handle multiexperiment data internally.

The data type you choose determines whether you must specify additional parameters.

  • Numeric — Specify Sample Time and Start Time in the time units that you select.

  • Timetable — Specify no additional parameters because the timetable already contains information on sample time and start time.

  • Frequency — Specify Frequency by selecting the variable name of a frequency vector in your MATLAB workspace. Specify the units for this frequency vector. Specify Sample Time in seconds.

  • Data Object — Specify no additional parameters because the data object already contains information on time or frequency sampling.

Select the input and output variable names from the MATLAB workspace choices. Use these parameters when Data Type is Numeric or Frequency.

Specifying validation data is optional but recommended.

Select the timetable variable name from the MATLAB workspace choices. Use this parameter when Data Type is Timetable. The task displays the timetable variable names for the input and output. Estimation and validation timetables must contain the same variable names.

Select the data object variable name from the MATLAB workspace choices. Use this parameter when Data Type is Data Object.

Specify Model Structure

The task allows you to specify a single value or a range of values for the order of the model to estimate.

  • Specify value — Specify the order of the model explicitly.

  • Pick best value in range — Specify a range of values, such as 1:10. When you run the task, the Hankel singular-value plot visualizes the relative energy contribution of each state in the estimated model and recommends the lowest order that reproduces critical dynamic behavior. Proceed with this recommendation or select another order in Chosen Order. Click Apply to accept the model order and proceed.

Select a continuous-time or discrete-time model.

Select this option to estimate the disturbance model. When you select this option, the model equations update to show the K matrix and e term.

For each input channel, assign values for Input Delay and Feedthrough.

  • Input Channel — Select an input channel. The input channel is always of the form ui, where i is the ith channel of the input u.

  • Input Delay — Enter the input delay in number of samples (discrete-time model) or number of time units (continuous-time model) for the channel. For instance, to specify a 0.2-second input delay for a continuous-time system for which the time unit is milliseconds, enter 200.

  • Feedthrough — Select this option to estimate channel feedthrough from input to output. When you select this option, the model equations update to show the Du term.

Specify Optional Parameters

Fit focus specifies what error to minimize in the loss function during estimation.

  • Prediction — Minimize the one-step-ahead prediction error between measured and predicted outputs. This estimation approach focuses on producing a good predictor model for the estimation inputs and outputs. Prediction focus generally produces the best estimation results because it uses both input and output measurements, thus accounting for disturbances.

  • Simulation — Minimize the error between measured and simulated outputs. This estimation approach focuses on producing a simulated model response that has a good fit with the estimation inputs and outputs. Simulation focus is generally best for validation, especially with data sets not used for the original estimation.

Set this option when you want to choose a specific method for initializing the model states. With the default setting of Auto, the software chooses the method based on the estimation data. Choices are:

  • Zero — The initial state is set to zero.

  • Estimate — The initial state is treated as an independent estimation parameter.

  • Backcast — The initial state is estimated using the best least-squares fit.

Input intersampling is a property of the input data. The task uses this property when estimating continuous models. Specify Input Intersampling when your data type is Time or Frequency. If you are using an iddata object, the object already contains the intersampling information. Choices for this property are:

  • Zero-order hold — Piecewise-constant input signal between samples

  • Triangle approximation — Piecewise-linear input signal between samples, also known as first-order hold

  • Band-limited — Input signal has zero power above the Nyquist frequency

  • Auto — For each iteration, the software cycles through the methods until it finds the first direction descent that leads to a reduction in estimation cost.

  • Gauss-Newton — Subspace Gauss-Newton least-squares search.

  • Levenberg-Marquardt — Levenberg-Marquardt least-squares search.

  • Adaptive Gauss-Newton —Adaptive subspace Gauss-Newton search.

  • Gradient Search — Steepest descent least-squares search.

Set the maximum number of iterations during error minimization. The iterations stop when Max. Iterations is reached or another stopping criterion is satisfied, such as Tolerance.

When the percentage of expected improvement is less than Tolerance, the iterations stop.

Set this option when you want to apply a weighting prefilter to the loss function that the task minimizes when you estimate the model. When you select an option, you must also select the associated variable in your workspace that contains the filter information. The available options depend on the domain of the data.

Weighting PrefilterData DomainFilter Information
No FilterTime and frequency
PassbandsTime and frequencyPassband ranges, specified as a 1-by-2 row vector or an n-by-2 matrix, where n is the number of passbands.
LTI FilterTime and frequencySISO LTI model.
Frequency Weights VectorFrequencyFrequency weights, specified as a column vector with the same length as the frequency vector.
Inverse of magnitude of the frequency responseFrequency responseThe weighting filter is1/|G(ω)|, where G(ω) is the complex frequency-response data. SISO and SIMO systems only.
Inverse of square root of magnitude of the frequency responseFrequency responseThe weighting filter is 1/|G(ω)|. SISO and SIMO systems only.

For instance, suppose that you are performing estimation with SISO frequency-domain data and that in your MATLAB workspace, you have a column vector W that contains frequency weights for the prefilter. In the task, select Weighting prefilter > Frequency weights vector and the variable W.

Display Results

Plot a comparison of the model output and the original measured data, along with the fit percentage. If you have separate validation data, a second plot compares the model response to the validation input data with the measured output from the validation data set.

Version History

Introduced in R2019b
