MapAxes Properties
MapAxes
properties control the appearance and behavior of a
MapAxes
object. By changing property values, you can modify certain aspects
of the map axes. Use dot notation to query and set properties.
p = projcrs(26919); newmap(p) mx = gca; c = mx.OutlineColor; mx.OutlineColor = "blue";
Map
ProjectedCRS
— Projected coordinate reference system
projcrs(8857)
(default) | projcrs
object
Projected coordinate reference system (CRS), specified as a projcrs
object. MapAxes
objects use the projection method and projection
parameters stored in the projected CRS to transform geographic (latitude-longitude)
coordinates to projected (xy) coordinates.
When you change the projected CRS, MATLAB® automatically updates the map axes to use the new projected CRS.
To change the projection parameters of the CRS, access the underlying ProjectionParameters
property of the projcrs
object.
p = projcrs(26919); newmap(p) mx = gca; mx.ProjectionParameters.LongitudeOfNaturalOrigin = -75;
For examples of how to customize the projection used by map axes, see Change Projection and Projection Parameters.
By default, map axes objects use the World Geodetic System of 1984 (WGS 84) / Equal
Earth Greenwich projected CRS, which has the EPSG code 8857
.
The projected CRS must have a forward and inverse projection implementation. Most projected CRSs have a forward and inverse projection implementation.
Scalebar
— Scale bar
GeographicScalebar
object
This property is read-only.
Scale bar, stored as a GeographicScalebar
object. The scale bar
shows proportional distances on the map.
Change the appearance and behavior of the scale bar by setting properties of the
GeographicScalebar
object. For example, this code shows how to hide
the scale
bar.
newmap
mx = gca;
mx.Scalebar.Visible = "off";
For more information about the properties of GeographicScalebar
objects, see GeographicScalebar Properties.
Font
FontColor
— Text color for title, tick labels, and scale bar
[1 1 1]
(default) | RGB triplet | hexadecimal color code | "r"
| "g"
| "b"
| ...
Text color for the title, the tick labels, and the scale bar, specified as an RGB triplet, a hexadecimal color code, a color name, or a short name.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range
[0,1]
, for example,[0.4 0.6 0.7]
.A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (
#
) followed by three or six hexadecimal digits, which can range from0
toF
. The values are not case sensitive. Therefore, the color codes"#FF8800"
,"#ff8800"
,"#F80"
, and"#f80"
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name | Short Name | RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|---|---|
"red" | "r" | [1 0 0] | "#FF0000" | |
"green" | "g" | [0 1 0] | "#00FF00" | |
"blue" | "b" | [0 0 1] | "#0000FF" | |
"cyan"
| "c" | [0 1 1] | "#00FFFF" | |
"magenta" | "m" | [1 0 1] | "#FF00FF" | |
"yellow" | "y" | [1 1 0] | "#FFFF00" | |
"black" | "k" | [0 0 0] | "#000000" | |
"white" | "w" | [1 1 1] | "#FFFFFF" | |
"none" | Not applicable | Not applicable | Not applicable | No color |
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.
RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|
[0 0.4470 0.7410] | "#0072BD" | |
[0.8500 0.3250 0.0980] | "#D95319" | |
[0.9290 0.6940 0.1250] | "#EDB120" | |
[0.4940 0.1840 0.5560] | "#7E2F8E" | |
[0.4660 0.6740 0.1880] | "#77AC30" | |
[0.3010 0.7450 0.9330] | "#4DBEEE" | |
[0.6350 0.0780 0.1840] | "#A2142F" |
To use a different text color for the title than for the tick labels and scale bar,
set the Color
property of the title, such as
mx.Title.Color = "blue"
.
To use a different text color for the scale bar than for the title and tick labels,
set the FontColor
property of the scale bar, such as
mx.Scalebar.FontColor = "blue"
.
Example: mx.FontColor = [0 0 1];
Example: mx.FontColor = "b";
Example: mx.FontColor = "blue";
Example: mx.FontColor = "#0000FF";
FontName
— Font name
supported font name | "FixedWidth"
Font name, specified as a supported font name or "FixedWidth"
. To
display and print text properly, you must choose a font that your system supports. The
default font depends on your operating system and locale.
To use a fixed-width font that looks good in any locale, specify
"FixedWidth"
. The fixed-width font relies on the root FixedWidthFontName
property. Setting the root FixedWidthFontName
property causes the
display to immediately update to use the new font.
FontSize
— Font size
numeric scalar
Font size, specified as a numeric scalar. The font size affects the title, tick labels, and
scale bar, as well as any legends or color bars associated with the axes. The default
font size depends on the specific operating system and locale. By default, the axes
object measures the font size in points. To change the units, set the
FontUnits
property.
MATLAB automatically scales some of the text to a percentage of the axes font size.
Titles — 110% of the axes font size by default. To control title scaling, use the
TitleFontSizeMultiplier
andLabelFontSizeMultiplier
properties.Legends and color bars — 90% of the axes font size by default. To specify a different font size, set the
FontSize
property for theLegend
orColorBar
object instead.Scale bar — 80% of the axes font size by default. To specify a different font size, set the
FontSize
property for theGeographicScalebar
object instead.
FontSizeMode
— Selection mode for font size
'auto'
(default) | 'manual'
Selection mode for the font size, specified as one of these values:
'auto'
— Font size specified by MATLAB. If you resize the axes to be smaller than the default size, the font size might scale down to improve readability and layout.'manual'
— Font size specified manually. Do not scale the font size as the axes size changes. To specify the font size, set theFontSize
property.
FontWeight
— Character thickness
"normal"
(default) | "bold"
Character thickness, specified as "normal"
or
"bold"
.
MATLAB uses the FontWeight
property to select a font from
those available on your system. Not all fonts have a bold weight. Therefore, specifying
a bold font weight can still result in the normal font weight.
FontAngle
— Character slant
"normal"
(default) | "italic"
Character slant, specified as "normal"
or
"italic"
.
Not all fonts have both font styles. Therefore, the italic font might look the same as the normal font.
TitleFontSizeMultiplier
— Scale factor for title font size
1.1
(default) | numeric value greater than 0
Scale factor for the title font size, specified as a numeric value greater than 0. The scale factor is applied to the value of the FontSize
property to determine the font size for the title.
TitleFontWeight
— Title character thickness
'bold'
(default) | 'normal'
Title character thickness, specified as one of these values:
'normal'
— Default weight as defined by the particular font'bold'
— Thicker characters than normal
SubtitleFontWeight
— Subtitle character thickness
'normal'
(default) | 'bold'
Subtitle character thickness, specified as one of these values:
'normal'
— Default weight as defined by the particular font'bold'
— Thicker characters than normal
FontUnits
— Font size units
'points'
(default) | 'inches'
| 'centimeters'
| 'normalized'
| 'pixels'
Font size units, specified as one of these values.
Units | Description |
---|---|
'points' | Points. One point equals 1/72 inch. |
'inches' | Inches. |
'centimeters' | Centimeters. |
'normalized'
| Interpret font size as a fraction of the axes height. If you
resize the axes, the font size modifies accordingly. For example, if
the FontSize is 0.1 in
normalized units, then the text is 1/10 of the height value stored
in the axes Position property. |
'pixels' | Pixels. Starting in R2015b, distances in pixels are independent of your system resolution on Windows® and Macintosh systems.
|
To set both the font size and the font units in a single function call, you first must set the
FontUnits
property so that the Axes
object
correctly interprets the specified font size.
Ticks
TickDir
— Tick mark direction
"in"
(default) | "out"
| "both"
| "none"
Tick mark direction, specified as one of these values:
"in"
— Direct the tick marks inward from the axis lines."out"
— Direct the tick marks outward from the axis lines."both"
— Center the tick marks over the axis lines."none"
— Do not display any tick marks.
TickLabelFormat
— Tick label format
"dms"
(default) | "dd"
| "dm"
| "-dd"
| "-dm"
| "-dms"
Tick label format, specified as one of these options:
Format | Description | Example |
---|---|---|
"dd" | Decimal degrees plus compass direction | 23°N |
"dm" | Degrees and decimal minutes plus compass direction | 18°30'W |
"dms" (default) | Degrees, minutes, and decimal seconds plus compass direction | 110°06'18.5"E |
"-dd" | Decimal degrees with a minus sign (–) to indicate south and west | -115.25° |
"-dm" | Degrees and decimal minutes with a minus sign (–) to indicate south and west | -5°45.5' |
"-dms" | Degrees, minutes, and decimal seconds with a minus sign (–) to indicate south and west | -3°21'05" |
Graticule
GraticuleColor
— Color of graticule lines
[0.15 0.15 0.15]
(default) | RGB triplet | hexadecimal color code | "r"
| "g"
| "b"
| ...
Color of the graticule lines, specified as an RGB triplet, a hexadecimal color code, a color name, or a short name.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range
[0,1]
, for example,[0.4 0.6 0.7]
.A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (
#
) followed by three or six hexadecimal digits, which can range from0
toF
. The values are not case sensitive. Therefore, the color codes"#FF8800"
,"#ff8800"
,"#F80"
, and"#f80"
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name | Short Name | RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|---|---|
"red" | "r" | [1 0 0] | "#FF0000" | |
"green" | "g" | [0 1 0] | "#00FF00" | |
"blue" | "b" | [0 0 1] | "#0000FF" | |
"cyan"
| "c" | [0 1 1] | "#00FFFF" | |
"magenta" | "m" | [1 0 1] | "#FF00FF" | |
"yellow" | "y" | [1 1 0] | "#FFFF00" | |
"black" | "k" | [0 0 0] | "#000000" | |
"white" | "w" | [1 1 1] | "#FFFFFF" | |
"none" | Not applicable | Not applicable | Not applicable | No color |
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.
RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|
[0 0.4470 0.7410] | "#0072BD" | |
[0.8500 0.3250 0.0980] | "#D95319" | |
[0.9290 0.6940 0.1250] | "#EDB120" | |
[0.4940 0.1840 0.5560] | "#7E2F8E" | |
[0.4660 0.6740 0.1880] | "#77AC30" | |
[0.3010 0.7450 0.9330] | "#4DBEEE" | |
[0.6350 0.0780 0.1840] | "#A2142F" |
To set the outline color of the axes, use the OutlineColor
property.
GraticuleLineStyle
— Line style for graticule lines
"-"
(default) | "--"
| ":"
| "-."
| "none"
Line style for graticule lines, specified as one of the line styles in this table.
Line Style | Description | Resulting Line |
---|---|---|
"-" | Solid line |
|
"--" | Dashed line |
|
":" | Dotted line |
|
"-." | Dash-dotted line |
|
"none" | No line | No line |
GraticuleLineWidth
— Width of graticule lines
0.5
(default) | positive scalar
Width of the graticule lines, specified as a positive scalar in point units. One point equals 1/72 of an inch.
When the GraticuleLineWidthMode
property has a value of
"auto"
, the value of GraticuleLineWidth
matches the value of LineWidth
.
GraticuleLineWidthMode
— Selection mode for GraticuleLineWidth
"auto"
(default) | "manual"
Selection mode for the GraticuleLineWidth
property, specified
as one of these values:
"auto"
— Automatically select the width of graticule lines based on the value of theLineWidth
property."manual"
— Manually specify the width of graticule lines. To specify the value, set theGraticuleLineWidth
property.
GraticuleAlpha
— Transparency of graticule lines
0.15
(default) | value in the range [0, 1]
Transparency of the graticule lines, specified as a value in the range [0, 1]. A
value of 1
means opaque and a value of 0
means
completely transparent.
Labels
Title
— Text object for title
text object
Text object for the axes title. To add a title, set the String
property of the text object. To change the title appearance, such as the font style or color, set other properties. For a complete list, see Text Properties.
ax = gca; ax.Title.String = 'My Title'; ax.Title.FontWeight = 'normal';
Alternatively, use the title
function to add a title and control the appearance.
title('My Title','FontWeight','normal')
Note
This text object is not contained in the axes Children
property, cannot be returned by findobj
, and does not use default values defined for text objects.
Subtitle
— Text object for subtitle
text object
Text object for the axes subtitle. To add a subtitle, set the String
property of the text object. To change its appearance, such as the font angle, set other
properties. For a complete list, see Text Properties.
ax = gca; ax.Subtitle.String = 'An Insightful Subtitle'; ax.Subtitle.FontAngle = 'italic';
Alternatively, use the subtitle
function to add a subtitle and control the
appearance.
subtitle('An Insightful Subtitle','FontAngle','italic')
Or use the title
function, and specify two
character vector input arguments and two output arguments. Then set properties on the
second text object returned by the
function.
[t,s] = title('Clever Title','An Insightful Subtitle'); s.FontAngle = 'italic';
Note
This text object is not contained in the axes Children
property, cannot be returned by findobj
, and does not use default values defined for text objects.
TitleHorizontalAlignment
— Title and subtitle horizontal alignment
"center"
(default) | "left"
| "right"
Title and subtitle horizontal alignment, specified as one of these values:
"center"
— Center the title and subtitle over the map axes."left"
— Align the title and subtitle with the left edge of an invisible box that circumscribes the map axes."right"
— Align the title and subtitle with the right edge of an invisible box that circumscribes the map axes.
Legend
— Legend associated with axes
empty GraphicsPlaceholder
(default) | Legend
object
This property is read-only.
Legend associated with the axes, stored as a Legend
object. To add
a legend to the axes, use the legend
function. Then, you can use this
property to modify the legend. For a complete list of properties, see Legend Properties.
newmap geoplot(1:10,1:10) hold on geoplot(5:14,1:10) legend(["Line 1" "Line 2"],FontSize=12) mx = gca; mx.Legend.TextColor = "red";
You also can use this property to determine if the axes has a legend.
newmap mx = gca; lgd = mx.Legend if ~isempty(lgd) disp("Legend Exists") end
Multiple Plots
ColorOrder
— Color order
seven predefined colors (default) | three-column matrix of RGB triplets
Color order, specified as a three-column matrix of RGB triplets. This property
defines the palette of colors MATLAB uses to create plot objects such as Line
and
Scatter
objects. Each row of the matrix is an RGB triplet. An RGB
triplet is a three-element vector whose elements specify the intensities of the red,
green, and blue components of a color. The intensities must be in the range [0, 1]. This
table lists the default colors.
Colors | ColorOrder Matrix |
---|---|
|
[ 0 0.4470 0.7410 0.8500 0.3250 0.0980 0.9290 0.6940 0.1250 0.4940 0.1840 0.5560 0.4660 0.6740 0.1880 0.3010 0.7450 0.9330 0.6350 0.0780 0.1840] |
MATLAB assigns colors to objects according to their order of creation. For example, when plotting lines, the first line uses the first color, the second line uses the second color, and so on. If there are more lines than colors, then the cycle repeats.
Changing the Color Order Before or After Plotting
You can change the color order in either of these ways:
Call the
colororder
function to change the color order for all the axes in a figure. The colors of existing plots in the figure update immediately. If you place additional axes into the figure, those axes also use the new color order. If you continue to call plotting commands, those commands also use the new colors.Set the
ColorOrder
property on the axes, call thehold
function to set the axes hold state to"on"
, and then call the desired plotting functions. Unlike thecolororder
function, this process sets the color order for the specific axes rather than the entire figure. You must set thehold
state to"on"
to ensure that subsequent plotting commands do not reset the axes to use the default color order.
LineStyleOrder
— Line style order
"-"
solid line (default) | character vector | cell array of character vectors | string array
Line style order, specified as a character vector, a cell array of character
vectors, or a string array. This property lists the line styles that MATLAB uses to display multiple plot lines in the axes. MATLAB assigns styles to lines according to their order of creation. By default,
it changes to the next line style only after cycling through all the colors in the
ColorOrder
property with the current line style. Set the LineStyleCyclingMethod
property to "withcolor"
to cycle
through both together, or "beforecolor"
to cycle through the line
styles first. The default LineStyleOrder
has only one line style,
"-"
.
To customize the line style order, create a cell array of character vectors or a
string array. Specify each element of the array as a line specifier or marker specifier
from these tables. You can combine a line and a marker specifier into a single element,
such as '-*'
.
Line Specifier | Description |
---|---|
"-" (default) | Solid line |
"--" | Dashed line |
":" | Dotted line |
"-." | Dash-dotted line |
Marker Specifier | Description |
---|---|
"+" | Plus sign markers |
"o" | Circle markers |
"*" | Star markers |
"." | Point markers |
"x" | Cross markers |
"s" | Square markers |
"d" | Diamond markers |
"^" | Upward-pointing triangle markers |
"v" | Downward-pointing triangle markers |
">" | Right-pointing triangle markers |
"<" | Left-pointing triangle markers |
"p" | Five-pointed star (pentagram) markers |
"h" | Six-pointed star (hexagram) markers |
Changing Line Style Order Before or After Plotting
You can change the line style order before or after plotting into the axes. When
you set the LineStyleOrder
property to a new value, MATLAB updates the styles of any lines that are in the axes. If you continue
plotting into the axes, your plotting commands continue using the line styles from the
updated list.
LineStyleCyclingMethod
— How to cycle through line styles
"aftercolor"
(default) | "beforecolor"
| "withcolor"
Since R2023a
How to cycle through the line styles when there are multiple lines in the axes, specified as one of the values from this table.
The examples in this table were created using the default colors in the
ColorOrder
property and three line styles
(["-","-o","--"]
) in the LineStyleOrder
property.
Value | Description | Example |
---|---|---|
| Cycle through the line styles of the |
|
"beforecolor" | Cycle through the line styles of the
|
|
"withcolor" | Cycle through the line styles of the
|
|
NextSeriesIndex
— SeriesIndex
value for next object
whole number
This property is read-only.
SeriesIndex
value for the next plot object added to the axes,
returned as a whole number greater than or equal to 0
. This property
is useful when you want to track how the objects cycle through the colors and line
styles. This property maintains a count of the objects in the axes that have a numeric
SeriesIndex
property value. MATLAB uses it to assign a SeriesIndex
value to each new
object. The count starts at 1
when you create the axes, and it
increases by 1
for each additional object. Thus, the count is
typically n+1, where n is the number of objects in
the axes.
If you manually change the ColorOrderIndex
or
LineStyleOrderIndex
property on the axes, the value of the
NextSeriesIndex
property changes to 0
. As a
consequence, objects that have a SeriesIndex
property no longer
update automatically when you change the ColorOrder
or
LineStyleOrder
properties on the axes.
NextPlot
— Properties to reset
"replace"
(default) | "add"
| "replacechildren"
| "replaceall"
Properties to reset when adding a new plot to the axes, specified as one of these values:
"add"
— Add new plots to the existing axes. Do not delete existing plots or reset axes properties before displaying the new plot."replacechildren"
— Delete existing plots before displaying the new plot. Reset theColorOrderIndex
andLineStyleOrderIndex
properties to1
, but do not reset other axes properties. The next plot added to the axes uses the first color and line style based on theColorOrder
andLineStyleOrder
properties. This value is similar to usingcla
before every new plot."replace"
— Delete existing plots and reset axes properties, exceptProjectedCRS
,Position
, andUnits
, to their default values before displaying the new plot."replaceall"
— Delete existing plots and reset axes properties, exceptPosition
andUnits
, to their default values before displaying the new plot. This value is similar to usingcla reset
before every new plot.
Figures also have a NextPlot
property.
Alternatively, you can use the newmap
function to prepare figures and axes for subsequent graphics commands.
SortMethod
— Order for rendering objects
'depth'
| 'childorder'
Order for rendering objects, specified as one of these values:
'depth'
— Draw objects in back-to-front order based on the current view. Use this value to ensure that objects in front of other objects are drawn correctly.'childorder'
— Draw objects in the order in which they are created by graphics functions, without considering the relationship of the objects in three dimensions. This value can result in faster rendering, particularly if the figure is very large, but also can result in improper depth sorting of the objects displayed.
ColorOrderIndex
— Color order index
1
(default) | positive integer
Color order index, specified as a positive integer. This property specifies the next
color MATLAB selects from the axes ColorOrder
property when it creates
the next plot object, such as a Line
or Scatter
object. For example, if the color order index value is 1
, then the
next object added to the axes uses the first color in the
ColorOrder
matrix. If the index value exceeds the number of
colors in the ColorOrder
matrix, then the index value modulo of the
number of colors in the ColorOrder
matrix determines the color of
the next object.
When the NextPlot
property of the axes is set to
'add'
, then the color order index value increases every time you
add a new plot to the axes. To start again with first color, set the
ColorOrderIndex
property to 1
.
LineStyleOrderIndex
— Line style order index
1
(default) | positive integer
Line style order index, specified as a positive integer. This property specifies the
next line style MATLAB selects from the axes LineStyleOrder
property to create the next plot line. For example, if this property is set to
1
, then the next plot line you add to the axes uses the first item
in the LineStyleOrder
property. If the index value exceeds the
number of line styles in the LineStyleOrder
array, then the index
value modulo of the number of elements in the LineStyleOrder
array
determines the style of the next line.
When the NextPlot
property of the axes is set to
"add"
, MATLAB increments the index value after cycling through all the colors in the
ColorOrder
property with the current
line style. To start again with first line style, set the
LineStyleOrderIndex
property to 1
.
Color and Transparency Maps
Colormap
— Color map
parula (default) | m
-by-3
array of RGB triplets
Color map, specified as an m
-by-3
array of RGB (red, green, blue) triplets that define m
individual colors.
Example: ax.Colormap = [1 0 1; 0 0 1; 1 1 0]
sets the color map to three colors: magenta, blue, and yellow.
MATLAB accesses these colors by their row number.
Alternatively, use the colormap
function to change the color map.
ColorScale
— Scale for color mapping
'linear'
(default) | 'log'
Scale for color mapping, specified as one of these values:
'linear'
— Linear scale. The tick values along the colorbar also use a linear scale.'log'
— Log scale. The tick values along the colorbar also use a log scale.
CLim
— Color limits
[0 1]
(default) | two-element vector of the form [cmin cmax]
Color limits for objects in axes that use the colormap, specified as a two-element
vector of the form [cmin cmax]
. This property determines how data
values map to the colors in the colormap where:
cmin
specifies the data value that maps to the first color in the colormap.cmax
specifies the data value that maps to the last color in the colormap.
The axes object interpolates data values between cmin
and cmax
across the colormap. Values outside this range use either
the first or last color, whichever is closest.
CLimMode
— Selection mode for CLim
'auto'
(default) | 'manual'
Selection mode for the CLim
property, specified
as one of these values:
'auto'
— Automatically select the limits based on the color data of the graphics objects contained in the axes.'manual'
— Manually specify the values. To specify the values, set theCLim
property. The values do not change when the limits of the axes children change.
Alphamap
— Transparency map
array of 64 values from 0
to 1
(default) | array of finite alpha values from 0
to 1
Transparency map, specified as an array of finite alpha values that progress linearly from
0
to 1
. The size of the array can be
m-by-1 or 1-by-m. MATLAB accesses alpha values by their index in the array. An alphamap can be any
length.
AlphaScale
— Scale for transparency mapping
'linear'
(default) | 'log'
Scale for transparency mapping, specified as one of these values:
'linear'
— Linear scale'log'
— Log scale
ALim
— Alpha limits
[0 1]
(default) | two-element vector of form [amin amax]
Alpha limits, specified as a two-element vector of the form [amin
amax]
. This property affects the AlphaData
values of
graphics objects, such as scatter and bubble chart objects. This property determines how
the AlphaData
values map to the figure alphamap, where:
amin
specifies the data value that maps to the first alpha value in the figure alphamap.amax
specifies the data value that maps to the last alpha value in the figure alphamap.
The MapAxes
object interpolates data values between
amin
and amax
across the figure alphamap. Values
outside this range use either the first or last alphamap value, whichever is
closest.
The Alphamap
property of the figure
contains the alphamap. For more information, see the alpha
function.
ALimMode
— Selection mode for ALim
'auto'
(default) | 'manual'
Selection mode for the ALim
property, specified
as one of these values:
'auto'
— Automatically select the limits based on theAlphaData
values of the graphics objects contained in the axes.'manual'
— Manually specify the alpha limits. To specify the alpha limits, set theALim
property.
Map Styling
Color
— Background color
[1 1 1]
(default) | RGB triplet | hexadecimal color code | "r"
| "g"
| "b"
| ...
Background color, specified as an RGB triplet, a hexadecimal color code, a color name, or a short name.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range
[0,1]
, for example,[0.4 0.6 0.7]
.A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (
#
) followed by three or six hexadecimal digits, which can range from0
toF
. The values are not case sensitive. Therefore, the color codes"#FF8800"
,"#ff8800"
,"#F80"
, and"#f80"
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name | Short Name | RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|---|---|
"red" | "r" | [1 0 0] | "#FF0000" | |
"green" | "g" | [0 1 0] | "#00FF00" | |
"blue" | "b" | [0 0 1] | "#0000FF" | |
"cyan"
| "c" | [0 1 1] | "#00FFFF" | |
"magenta" | "m" | [1 0 1] | "#FF00FF" | |
"yellow" | "y" | [1 1 0] | "#FFFF00" | |
"black" | "k" | [0 0 0] | "#000000" | |
"white" | "w" | [1 1 1] | "#FFFFFF" | |
"none" | Not applicable | Not applicable | Not applicable | No color |
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.
RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|
[0 0.4470 0.7410] | "#0072BD" | |
[0.8500 0.3250 0.0980] | "#D95319" | |
[0.9290 0.6940 0.1250] | "#EDB120" | |
[0.4940 0.1840 0.5560] | "#7E2F8E" | |
[0.4660 0.6740 0.1880] | "#77AC30" | |
[0.3010 0.7450 0.9330] | "#4DBEEE" | |
[0.6350 0.0780 0.1840] | "#A2142F" |
Example: mx.Color = [0 0 1];
Example: mx.Color = "b";
Example: mx.Color = "blue";
Example: mx.Color = "#0000FF";
OutlineColor
— Color of map outline, ticks, and edge of scale bar
[1 1 1]
(default) | RGB triplet | hexadecimal color code | "r"
| "g"
| "b"
| ...
Color of the map outline, the ticks, and the edge of the scale bar, specified as an RGB triplet, a hexadecimal color code, a color name, or a short name.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range
[0,1]
, for example,[0.4 0.6 0.7]
.A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (
#
) followed by three or six hexadecimal digits, which can range from0
toF
. The values are not case sensitive. Therefore, the color codes"#FF8800"
,"#ff8800"
,"#F80"
, and"#f80"
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name | Short Name | RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|---|---|
"red" | "r" | [1 0 0] | "#FF0000" | |
"green" | "g" | [0 1 0] | "#00FF00" | |
"blue" | "b" | [0 0 1] | "#0000FF" | |
"cyan"
| "c" | [0 1 1] | "#00FFFF" | |
"magenta" | "m" | [1 0 1] | "#FF00FF" | |
"yellow" | "y" | [1 1 0] | "#FFFF00" | |
"black" | "k" | [0 0 0] | "#000000" | |
"white" | "w" | [1 1 1] | "#FFFFFF" | |
"none" | Not applicable | Not applicable | Not applicable | No color |
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.
RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|
[0 0.4470 0.7410] | "#0072BD" | |
[0.8500 0.3250 0.0980] | "#D95319" | |
[0.9290 0.6940 0.1250] | "#EDB120" | |
[0.4940 0.1840 0.5560] | "#7E2F8E" | |
[0.4660 0.6740 0.1880] | "#77AC30" | |
[0.3010 0.7450 0.9330] | "#4DBEEE" | |
[0.6350 0.0780 0.1840] | "#A2142F" |
To use a different color for the edge of the scale bar than for the map outline and
ticks, set the EdgeColor
property of the scale bar, such as
mx.Scalebar.EdgeColor = "blue"
.
Example: mx.OutlineColor = [0 0 1];
Example: mx.OutlineColor = "b";
Example: mx.OutlineColor = "blue";
Example: mx.OutlineColor = "#0000FF";
LineWidth
— Line width
0.5
(default) | positive scalar
Line width of the axes outline, the tick marks, the graticule lines, and the edge of the scale bar, specified as a positive scalar in point units. One point equals 1/72 inch.
You can use a different line width for the graticule lines than for the axes outline
and tick marks by setting the GraticuleLineWidth
property. The
LineWidth
property controls the width of the graticule lines only
when the value of the GraticuleLineWidthMode
property is
"auto"
.
To use a different line width for the edge of the scale bar than for the axes
outline, the tick marks, and the graticule lines, set the LineWidth
property of the scale bar, such as mx.Scalebar.LineWidth = 2
.
MapLayout
— Map layout
"normal"
(default) | "cartographic"
Map layout, specified as one of these options:
"normal"
— Display data within the box specified byPosition
. For many projected CRSs, this box includes the quadrangle defined byCartographicLatitudeLimits
andCartographicLongitudeLimits
and some areas surrounding the quadrangle. The axes does not display data where the projection has undefined numeric results or extreme map distortion."cartographic"
— Display only the data within the quadrangle defined by theCartographicLatitudeLimits
andCartographicLongitudeLimits
properties.
The "normal"
option is appropriate for most data visualization
and exploration workflows. The "cartographic"
option is useful when
creating static maps or when preparing maps for publication. For more information about
creating maps using the "cartographic"
option, see Create Map of Quadrangle Using Cartographic Map Layout.
This table compares the "normal"
and
"cartographic"
options for several projected CRSs. The figures
within the table show the box specified by Position
in red.
Projected CRS | "normal" | "cartographic" |
---|---|---|
A projected CRS for a temperate region. This row shows
maps created from a |
|
|
A projected CRS for a polar region. This row shows maps
created from a |
|
|
A projected CRS for a global region. This row shows
maps created from a In this case, the map layouts
for the |
|
|
CartographicLatitudeLimits
— Latitude limits for quadrangle used by MapLayout
two-element vector of form [latmin latmax]
Latitude limits for the quadrangle used by MapLayout
, specified
as a two-element vector of the form [latmin latmax]
, where
latmax
is greater than latmin
.
By default, MATLAB sets this property using the area of use for
the projected CRS. When a projected CRS does not indicate the area of use, MATLAB sets this property to [-90 90]
.
Changing the value of this property does not change the value of
ProjectedCRS
.
Panning or zooming within the map does not change the value of this property.
To change the geographic limits of a map that is in the default layout
(MapLayout
is "normal"
), use the geolimits
function instead of the CartographicLatitudeLimits
and
CartographicLongitudeLimits
properties.
CartographicLongitudeLimits
— Longitude limits for quadrangle used by MapLayout
two-element vector of form [lonmin lonmax]
Longitude limits for the quadrangle used by MapLayout
,
specified as a two-element vector of the form [lonmin lonmax]
. In
most cases, lonmax
is greater than lonmin
.
By default, MATLAB sets this property using the area of use for
the projected CRS. When a projected CRS does not indicate the area of use, MATLAB sets this property to [-180 180]
.
Changing the value of this property does not change the value of
ProjectedCRS
.
Panning or zooming within the map does not change the value of this property.
To change the geographic limits of a map that is in the default layout
(MapLayout
is "normal"
), use the geolimits
function instead of the CartographicLatitudeLimits
and
CartographicLongitudeLimits
properties.
Position
OuterPosition
— Size and location, including labels and margin
[0 0 1 1]
(default) | four-element vector
Size and location, including the labels and a margin, specified as a four-element vector of the form [left bottom width height]
. By default, MATLAB measures the values in units normalized to the container. To change the units, set the Units
property. The default value of [0 0 1 1]
includes the whole interior of the container.
The
left
andbottom
elements define the distance from the lower-left corner of the container (typically a figure, panel, or tab) to the lower-left corner of the outer position boundary.The
width
andheight
elements are the outer position boundary dimensions.
This figure shows the areas defined by the OuterPosition
values (blue) and the Position
values (red).
Note
Setting this property has no effect when the parent container is a
TiledChartLayout
object.
InnerPosition
— Inner size and location
[0.1300 0.1100 0.7750 0.8150]
(default) | four-element vector
Inner size and location, specified as a four-element vector of the form
[left bottom width height]
. This property is equivalent to the
Position
property.
Note
Setting this property has no effect when the parent container is a
TiledChartLayout
object.
Position
— Size and location, excluding margin for labels
[0.1300 0.1100 0.7750 0.8150]
(default) | four-element vector
Size and location, excluding a margin for the labels, specified as a four-element vector of the form [left bottom width height]
. By default, MATLAB measures the values in units normalized to the container. To change the units, set the Units
property.
The
left
andbottom
elements define the distance from the lower-left corner of the container (typically a figure, panel, or tab) to the lower-left corner of the position boundary.The
width
andheight
elements are the position boundary dimensions.
If you want to specify the position and account for the text around the axes, then set the
OuterPosition
property instead. This figure shows the areas
defined by the OuterPosition
values (blue) and the
Position
values (red).
Note
Setting this property has no effect when the parent container is a
TiledChartLayout
object.
PositionConstraint
— Position to hold constant
"outerposition"
| "innerposition"
Position property to hold constant when adding, removing, or changing decorations, specified as one of the following values:
"outerposition"
— TheOuterPosition
property remains constant when you add, remove, or change decorations such as a title or an axis label. If any positional adjustments are needed, MATLAB adjusts theInnerPosition
property."innerposition"
— TheInnerPosition
property remains constant when you add, remove, or change decorations such as a title or an axis label. If any positional adjustments are needed, MATLAB adjusts theOuterPosition
property.
Note
Setting this property has no effect when the parent container is a
TiledChartLayout
object.
Units
— Position units
"normalized"
(default) | "inches"
| "centimeters"
| "points"
| "pixels"
| "characters"
Position units, specified as one of these values.
Units | Description |
---|---|
"normalized" (default) | Normalized with respect to the container, which is typically the figure or a panel. The
lower-left corner of the container maps to (0,0)
and the upper-right corner maps to (1,1) . |
"inches" | Inches. |
"centimeters" | Centimeters. |
"characters" | Based on the default
|
"points" | Typography points. One point equals 1/72 of an inch. |
"pixels" | Pixels. Starting in R2015b, distances in pixels are independent of your system resolution on Windows and Macintosh systems.
|
When specifying the units using a name-value argument during object creation, you must set the
Units
property before specifying the properties that you want
to use these units, such as Position
.
Layout
— Layout options
empty LayoutOptions
array (default) | TiledChartLayoutOptions
object | GridLayoutOptions
object
Layout options, specified as a TiledChartLayoutOptions
or a
GridLayoutOptions
object. This property is useful when the axes
object is either in a tiled chart layout or a grid layout.
To position the axes within the grid of a tiled chart layout, set the
Tile
and TileSpan
properties on the
TiledChartLayoutOptions
object. For example, consider a 3-by-3
tiled chart layout. The layout has a grid of tiles in the center, and four tiles along
the outer edges. In practice, the grid is invisible and the outer tiles do not take up
space until you populate them with axes or charts.
This code places the axes ax
in the third tile of the
grid.
ax.Layout.Tile = 3;
To make the axes span multiple tiles, specify the TileSpan
property as a two-element vector. For example, this axes spans 2
rows and 3
columns of tiles.
ax.Layout.TileSpan = [2 3];
To place the axes in one of the surrounding tiles, specify the
Tile
property as 'north'
,
'south'
, 'east'
, or 'west'
.
For example, setting the value to 'east'
places the axes in the tile
to the right of the
grid.
ax.Layout.Tile = 'east';
To place the axes into a layout within an app, specify this property as a
GridLayoutOptions
object. For more information about working with
grid layouts in apps, see uigridlayout
.
If the axes is not a child of either a tiled chart layout or a grid layout (for example, if it is a child of a figure or panel) then this property is empty and has no effect.
Interactivity
Toolbar
— Data exploration toolbar
AxesToolbar
object (default)

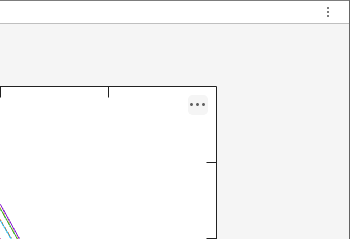

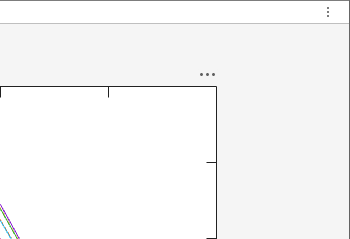

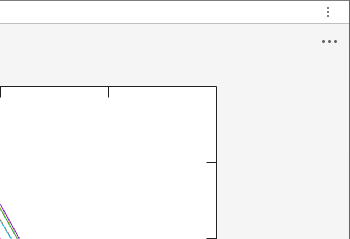

Data exploration toolbar, specified as an AxesToolbar
object. The
toolbar appears at the top-right corner of the axes when you hover over it.
By default, the toolbar includes buttons for exporting content, zooming into the map
center, zooming out of the map center, and restoring the original view. You can
customize the toolbar buttons using the axtoolbar
and axtoolbarbtn
functions.
If you do not want the toolbar to appear when you hover over the axes, set the
Visible
property of the AxesToolbar
object to
"off"
.
newmap
mx = gca;
mx.Toolbar.Visible = "off";
For more information, see AxesToolbar Properties.
Interactions
— Interactions
array of interaction objects | []
Interactions, specified as an array of PanInteraction
, ZoomInteraction
, or DataTipInteraction
objects or as an empty array. The interactions you
specify are available within your chart through gestures. You do not have to select any
axes toolbar buttons to use them. For example, a PanInteraction
object
enables you to pan within a chart by dragging. For a list of interaction objects, see
Control Chart Interactivity.
By default, charts within map axes have pan, zoom, and data tip interactions. You
can replace the default set with a new set of interactions, but you cannot access or
modify any of the interactions in the default set. For example, this code replaces the
default set of interactions with the PanInteraction
and
ZoomInteraction
objects.
newmap mx = gca; mx.Interactions = [panInteraction zoomInteraction];
To remove all interactions from the axes, set this property to an empty array. To
temporarily disable the current set of interactions, call the disableDefaultInteractivity
function. You can reenable them by calling the
enableDefaultInteractivity
function.
InteractionOptions
— Options to customize interaction behavior for apps
MapAxesInteractionOptions
object
Since R2024a
Options to customize interaction behavior for apps, specified as a
MapAxesInteractionOptions
object. Use the properties of the
MapAxesInteractionOptions
object to customize the behavior of
interactions for map axes objects in apps. For a complete list of properties, see
MapAxesInteractionOptions Properties.
The options set by the MapAxesInteractionOptions
object apply to
the built-in interactions specified by the Interactions
property of the map axes object and to interactions enabled
using the axes toolbar.
To use this property, you must create the map axes object in App
Designer, or in a figure created using the uifigure
function.
Visible
— State of visibility
'on'
(default) | on/off logical value
State of visibility, specified as 'on'
or 'off'
, or as numeric or logical 1
(true
) or 0
(false
). A value of 'on'
is equivalent to true
, and 'off'
is equivalent to false
. Thus, you can use the value of this property as a logical value. The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState
.
'on'
— Display the axes and its children.'off'
— Hide the axes without deleting it. You still can access the properties of an invisible axes object.
Note
When the Visible
property is 'off'
, the axes
object is invisible, but child objects such as lines remain visible.
CurrentPoint
— Location of mouse pointer
two-element vector
This property is read-only.
Location of the mouse pointer, stored as a two-element vector of the form
[lat lon]
. The elements of the vector indicate the location of the
last click within the axes. lat
is the latitude in degrees, and
lon
is the longitude in degrees.
If the figure has a defined WindowButtonMotionFcn
callback,
then the value indicates the last location of the pointer. The figure also has a
CurrentPoint
property.
ContextMenu
— Context menu
empty GraphicsPlaceholder
array (default) | ContextMenu
object
Context menu, specified as a ContextMenu
object. Use this property
to display a context menu when you right-click the object. Create the context menu using
the uicontextmenu
function.
Note
If the PickableParts
property is set to
'none'
or if the HitTest
property is set
to 'off'
, then the context menu does not appear.
Selected
— Selection state
'off'
(default) | on/off logical value
Selection state, specified as 'on'
or 'off'
, or
as numeric or logical 1
(true
) or
0
(false
). A value of 'on'
is equivalent to true, and 'off'
is equivalent to
false
. Thus, you can use the value of this property as a logical
value. The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState
.
'on'
— Selected. If you click the object when in plot edit mode, then MATLAB sets itsSelected
property to'on'
. If theSelectionHighlight
property also is set to'on'
, then MATLAB displays selection handles around the object.'off'
— Not selected.
SelectionHighlight
— Display of selection handles
'on'
(default) | on/off logical value
Display of selection handles when selected, specified as 'on'
or
'off'
, or as numeric or logical 1
(true
) or 0
(false
). A
value of 'on'
is equivalent to true, and 'off'
is
equivalent to false
. Thus, you can use the value of this property as
a logical value. The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState
.
'on'
— Display selection handles when theSelected
property is set to'on'
.'off'
— Never display selection handles, even when theSelected
property is set to'on'
.
Callbacks
ButtonDownFcn
— Mouse-click callback
''
(default) | function handle | cell array | character vector
Mouse-click callback, specified as one of these values:
Function handle
Cell array containing a function handle and additional arguments
Character vector that is a valid MATLAB command or function, which is evaluated in the base workspace (not recommended)
Use this property to execute code when you click the object. If you specify this property using a function handle, then MATLAB passes two arguments to the callback function when executing the callback:
Clicked object — Access properties of the clicked object from within the callback function.
Event data — Empty argument. Replace it with the tilde character (
~
) in the function definition to indicate that this argument is not used.
For more information on how to use function handles to define callback functions, see Create Callbacks for Graphics Objects.
Note
If the PickableParts
property is set to
'none'
or if the HitTest
property is set
to 'off'
, then this callback does not execute.
CreateFcn
— Creation function
''
(default) | function handle | cell array | character vector
Object creation function, specified as one of these values:
Function handle.
Cell array in which the first element is a function handle. Subsequent elements in the cell array are the arguments to pass to the callback function.
Character vector containing a valid MATLAB expression (not recommended). MATLAB evaluates this expression in the base workspace.
For more information about specifying a callback as a function handle, cell array, or character vector, see Create Callbacks for Graphics Objects.
This property specifies a callback function to execute when MATLAB creates the object. MATLAB initializes all property values before executing the CreateFcn
callback. If you do not specify the CreateFcn
property, then MATLAB executes a default creation function.
Setting the CreateFcn
property on an existing component has no effect.
If you specify this property as a function handle or cell array, you can access the object that is being created using the first argument of the callback function. Otherwise, use the gcbo
function to access the object.
DeleteFcn
— Deletion function
''
(default) | function handle | cell array | character vector
Object deletion function, specified as one of these values:
Function handle.
Cell array in which the first element is a function handle. Subsequent elements in the cell array are the arguments to pass to the callback function.
Character vector containing a valid MATLAB expression (not recommended). MATLAB evaluates this expression in the base workspace.
For more information about specifying a callback as a function handle, cell array, or character vector, see Create Callbacks for Graphics Objects.
This property specifies a callback function to execute when MATLAB deletes the object. MATLAB executes the DeleteFcn
callback before destroying the
properties of the object. If you do not specify the DeleteFcn
property, then MATLAB executes a default deletion function.
If you specify this property as a function handle or cell array, you can access the object that is being deleted using the first argument of the callback function. Otherwise, use the gcbo
function to access the object.
Callback Execution Control
Interruptible
— Callback interruption
'on'
(default) | on/off logical value
Callback interruption, specified as 'on'
or 'off'
, or as
numeric or logical 1
(true
) or
0
(false
). A value of 'on'
is equivalent to true
, and 'off'
is equivalent to
false
. Thus, you can use the value of this property as a logical
value. The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState
.
This property determines if a running callback can be interrupted. There are two callback states to consider:
The running callback is the currently executing callback.
The interrupting callback is a callback that tries to interrupt the running callback.
MATLAB determines callback interruption behavior whenever it executes a command that
processes the callback queue. These commands include drawnow
, figure
, uifigure
, getframe
, waitfor
, and pause
.
If the running callback does not contain one of these commands, then no interruption occurs. MATLAB first finishes executing the running callback, and later executes the interrupting callback.
If the running callback does contain one of these commands, then the
Interruptible
property of the object that owns the running
callback determines if the interruption occurs:
If the value of
Interruptible
is'off'
, then no interruption occurs. Instead, theBusyAction
property of the object that owns the interrupting callback determines if the interrupting callback is discarded or added to the callback queue.If the value of
Interruptible
is'on'
, then the interruption occurs. The next time MATLAB processes the callback queue, it stops the execution of the running callback and executes the interrupting callback. After the interrupting callback completes, MATLAB then resumes executing the running callback.
Note
Callback interruption and execution behave differently in these situations:
If the interrupting callback is a
DeleteFcn
,CloseRequestFcn
, orSizeChangedFcn
callback, then the interruption occurs regardless of theInterruptible
property value.If the running callback is currently executing the
waitfor
function, then the interruption occurs regardless of theInterruptible
property value.If the interrupting callback is owned by a
Timer
object, then the callback executes according to schedule regardless of theInterruptible
property value.
BusyAction
— Callback queuing
'queue'
(default) | 'cancel'
Callback queuing, specified as 'queue'
or 'cancel'
. The BusyAction
property determines how MATLAB handles the execution of interrupting callbacks. There are two callback states to consider:
The running callback is the currently executing callback.
The interrupting callback is a callback that tries to interrupt the running callback.
The BusyAction
property determines callback queuing behavior only
when both of these conditions are met:
Under these conditions, the BusyAction
property of the
object that owns the interrupting callback determines how MATLAB handles the interrupting callback. These are possible values of the
BusyAction
property:
'queue'
— Puts the interrupting callback in a queue to be processed after the running callback finishes execution.'cancel'
— Does not execute the interrupting callback.
PickableParts
— Ability to capture mouse clicks
"visible"
(default) | "all"
| "none"
Ability to capture mouse clicks, specified as one of these values:
"visible"
— Capture mouse clicks only when visible. TheVisible
property must be set to"on"
. TheHitTest
property determines if theMapAxes
object responds to the click or if an ancestor does."all"
— Capture mouse clicks regardless of visibility. TheVisible
property can be set to"on"
or"off"
. TheHitTest
property determines if theMapAxes
object responds to the click or if an ancestor does."none"
— Cannot capture mouse clicks. Clicking theMapAxes
object passes the click to the object below it in the current view of the figure window, which is typically the axes or the figure. TheHitTest
property has no effect.
If you want an object to be clickable when it is underneath other objects that you
do not want to be clickable, then set the PickableParts
property of
the other objects to "none"
so that the click passes through
them.
HitTest
— Response to captured mouse clicks
'on'
(default) | on/off logical value
Response to captured mouse clicks, specified as 'on'
or
'off'
, or as numeric or logical 1
(true
) or 0
(false
). A
value of 'on'
is equivalent to true, and 'off'
is
equivalent to false
. Thus, you can use the value of this property as
a logical value. The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState
.
'on'
— Trigger theButtonDownFcn
callback of theMapAxes
object. If you have defined theContextMenu
property, then invoke the context menu.'off'
— Trigger the callbacks for the nearest ancestor of theMapAxes
object that has one of these:HitTest
property set to'on'
PickableParts
property set to a value that enables the ancestor to capture mouse clicks
Note
The PickableParts
property determines if the MapAxes
object can capture mouse
clicks. If it cannot, then the HitTest
property has no
effect.
BeingDeleted
— Deletion status
on/off logical value
This property is read-only.
Deletion status, returned as an on/off logical value of type matlab.lang.OnOffSwitchState
.
MATLAB sets the BeingDeleted
property to
'on'
when the DeleteFcn
callback begins
execution. The BeingDeleted
property remains set to
'on'
until the component object no longer exists.
Check the value of the BeingDeleted
property to verify that the object is not about to be deleted before querying or modifying it.
Parent/Child
Parent
— Parent container
Figure
object | Panel
object | Tab
object | TiledChartLayout
object | GridLayout
object
Parent container, specified as a Figure
,
Panel
, Tab
,
TiledChartLayout
, or GridLayout
object.
Children
— Children
empty GraphicsPlaceholder
array | array of graphics objects
Children, returned as an array of graphics objects. Use this property to view a list of the children or to reorder the children by setting the property to a permutation of itself.
You cannot add or remove children using the Children
property. To
add a child to this list, set the Parent
property of the child
graphics object to the MapAxes
object.
HandleVisibility
— Visibility of object handle
'on'
(default) | 'off'
| 'callback'
Visibility of the object handle in the Children
property of the
parent, specified as one of these values:
'on'
— Object handle is always visible.'off'
— Object handle is invisible at all times. This option is useful for preventing unintended changes by another function. Set theHandleVisibility
to'off'
to temporarily hide the handle during the execution of that function.'callback'
— Object handle is visible from within callbacks or functions invoked by callbacks, but not from within functions invoked from the command line. This option blocks access to the object at the command line, but permits callback functions to access it.
If the object is not listed in the Children
property of the
parent, then functions that obtain object handles by searching the object
hierarchy or querying handle properties cannot return it. Examples of such
functions include the get
, findobj
, gca
, gcf
, gco
, newplot
, cla
, clf
, and close
functions.
Hidden object handles are still valid. Set the root
ShowHiddenHandles
property to 'on'
to list all object handles regardless of their
HandleVisibility
property setting.
Identifiers
Type
— Type of graphics object
'mapaxes'
This property is read-only.
Type of graphics object, stored as 'mapaxes'
.
Tag
— Object identifier
''
(default) | character vector | string scalar
Object identifier, specified as a character vector or string scalar. You can specify a unique Tag
value to serve as an identifier for an object. When you need access to the object elsewhere in your code, you can use the findobj
function to search for the object based on the Tag
value.
UserData
— User data
[]
(default) | array
User data, specified as any MATLAB array. For example, you can specify a scalar, vector, matrix, cell array, character array, table, or structure. Use this property to store arbitrary data on an object.
If you are working in App Designer, create public or private properties in the app to share data instead of using the UserData
property. For more information, see Share Data Within App Designer Apps.
More About
Area of Use
The area of use is the region for which a projected CRS is valid.
Many projcrs
objects specify the area of use. To find the area of use
for a projected CRS, display the well-known text (WKT) string of the CRS and search for the
BBOX
attribute.
This code shows how to display the WKT string for a projcrs
object
stored in a map axes object by using the wktstring
function.
newmap
mx = gca;
p = mx.ProjectedCRS;
wktstring(p,Format="Formatted")
Version History
Introduced in R2023a
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
Asia Pacific
- Australia (English)
- India (English)
- New Zealand (English)
- 中国
- 日本Japanese (日本語)
- 한국Korean (한국어)
