Registration

Align 2-D and 3-D medical images using rigid and deformable registration

Use medical image registration functions and the Medical Registration Estimator app to align related pairs of images or volumes. To get started with the app, see Get Started with Medical Registration Estimator. For more information on the types of registration functionality in the toolbox, see Medical Image Registration.

Apps

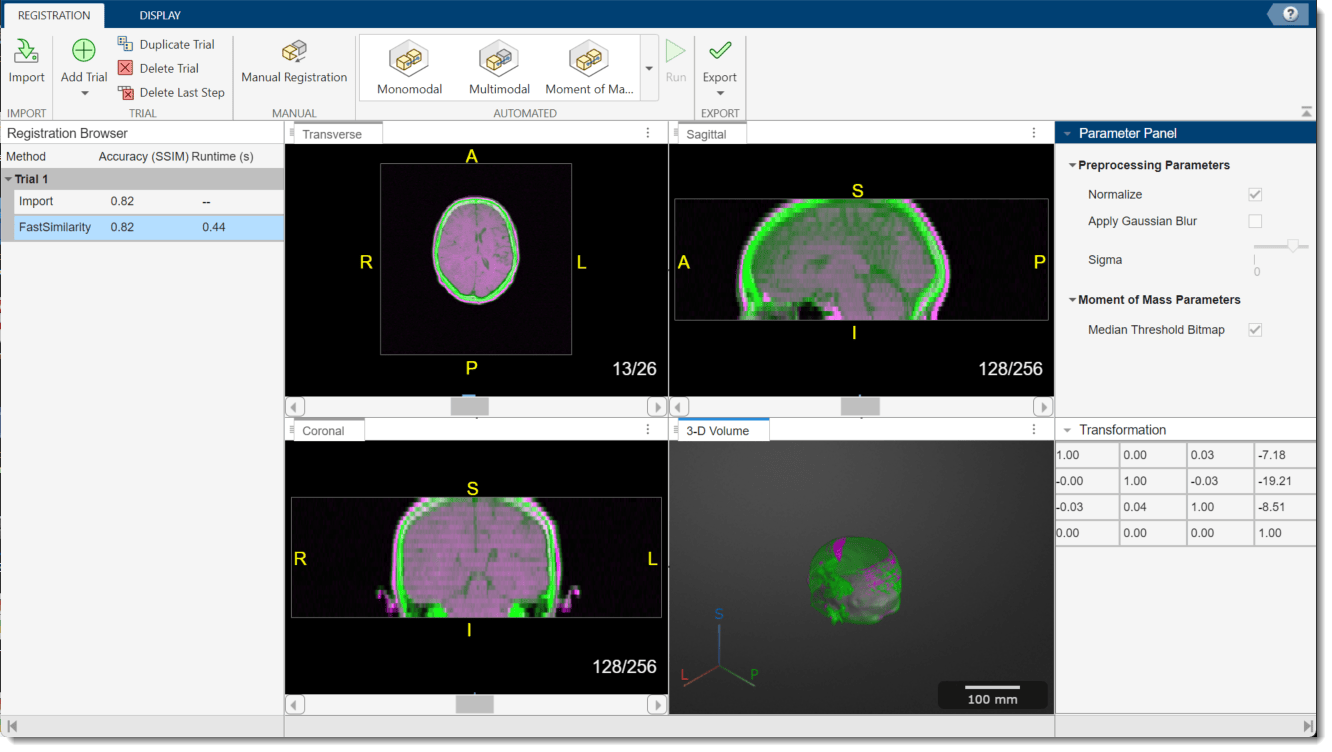

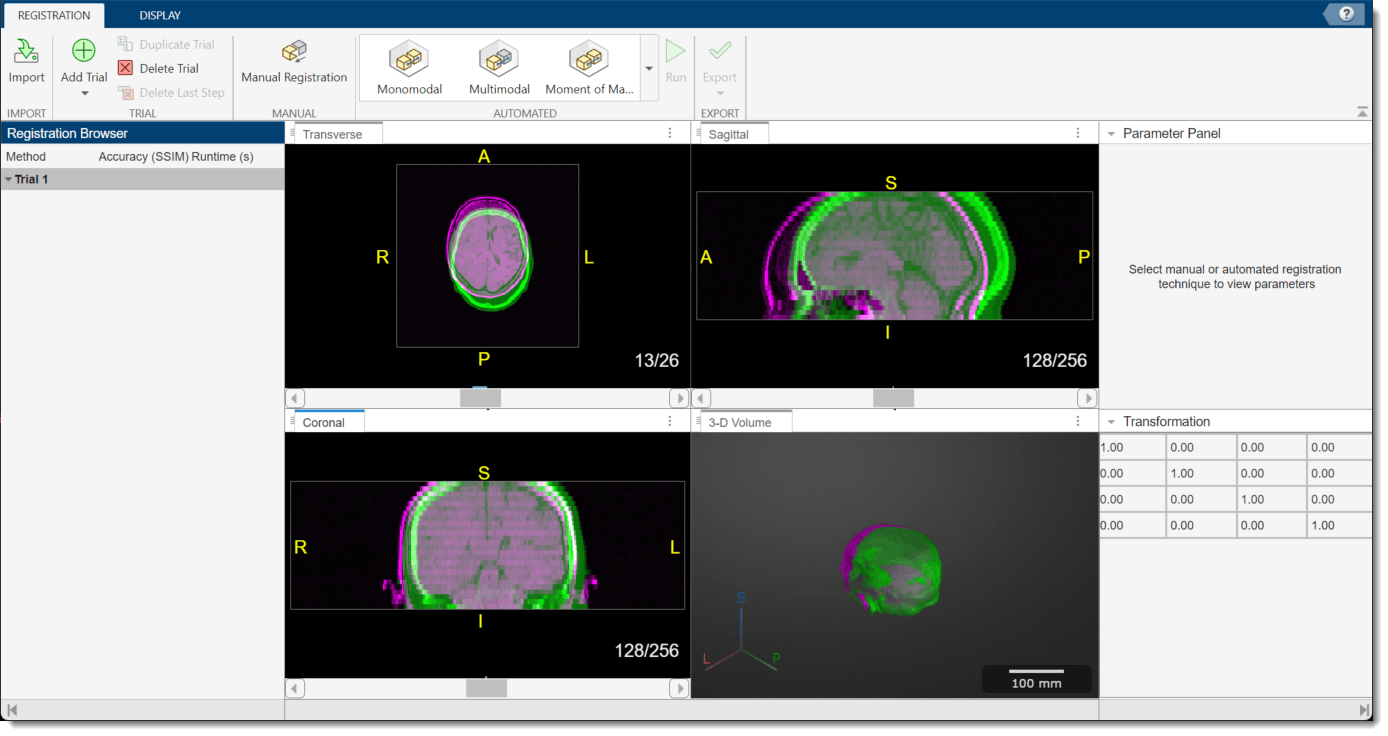

Medical Registration EstimatorRegister 3-D medical image volumes (Since R2024b)
Registration EstimatorRegister 2-D grayscale images

Functions

expand all

Fast Registration

imregmomentFast registration of grayscale images or intensity volumes using moment of mass method (Since R2022b)

Optimization-Based Registration

imregisterIntensity-based image registration
imregtformEstimate geometric transformation that aligns two 2-D or 3-D images
imregconfigConfigurations for intensity-based registration
MattesMutualInformationMattes mutual information metric configuration
MeanSquaresMean square error metric configuration
RegularStepGradientDescentRegular step gradient descent optimizer configuration
OnePlusOneEvolutionaryOne-plus-one evolutionary optimizer configuration

Deformable Registration

imregdeformDeformable registration of grayscale images or intensity volumes using total variation method (Since R2022b)
imregdemonsEstimate displacement field that aligns two 2-D or 3-D images

Surface Registration

imregicpSurface registration using iterative closest point algorithm (Since R2022b)

Groupwise Registration

imreggroupwiseGroupwise deformable registration (Since R2022b)

Correlation-Based Registration

imregcorrEstimate geometric transformation that aligns two 2-D images using cross correlation
normxcorr2Normalized 2-D cross-correlation
fitgeotform2dFit 2-D geometric transformation to control point pairs (Since R2022b)
fitgeotform3dFit 3-D geometric transformation to control point pairs (Since R2024a)
imwarpApply geometric transformation to image
resampleResample medical image volume in different patient coordinate system (Since R2022b)
