Battery Pack Modeling
Simscape™ Battery™ includes MATLAB® objects and methods to automate the creation of Simscape battery models. These MATLAB objects allow you to define your own battery design specifications, visualize your battery in a 3-D space, customize the modeling resolution during simulation, and generate a Simulink® library that contains your custom generated battery blocks. You can use these blocks to assist with virtual battery design and verification, help develop battery control algorithms using Simulink, explore design sensitivities, and design thermal management strategies.
You can develop and test battery control strategies by simulating your custom battery blocks with the blocks in the Battery Management System (BMS) library of Simscape Battery. You can also thermally couple your custom battery models in Simulink with the blocks in the Thermal Management System library. Alternatively, you can define your own custom battery control and cooling system blocks.
Apps
| Battery Builder | Define battery system and automatically generate dynamic models (Since R2023a) |
Functions
Objects
Simscape Blocks
Topics
- Battery Modeling Workflow
Learn how to create your battery models by using Simscape Battery.
- Manage Battery Run-Time Parameters with Centralized Script
Learn how to easily manage and characterize the run-time parameters of your battery models.
- Model Heat Exchange Between Cells
Learn how to model cell-to-cell heat exchange in your battery system.
- Build Model of Battery Pack with Cell Aging
Create and build a Simscape system model of a battery pack with cell aging.
- Build Model of Battery Pack with Cell Balancing Circuit
Create and build a Simscape system model of a battery pack with cell balancing circuit.
- Build Model of Battery Pack for Grid Application
Create and build a Simscape system model of a battery pack for grid applications.
- Build Model of Hybrid-Cell Battery Pack
This example shows how to build a Simscape™ system model of a hybrid-cell battery pack with two sets of cell run-time parameters.
Featured Examples
Get Started with Battery Builder App

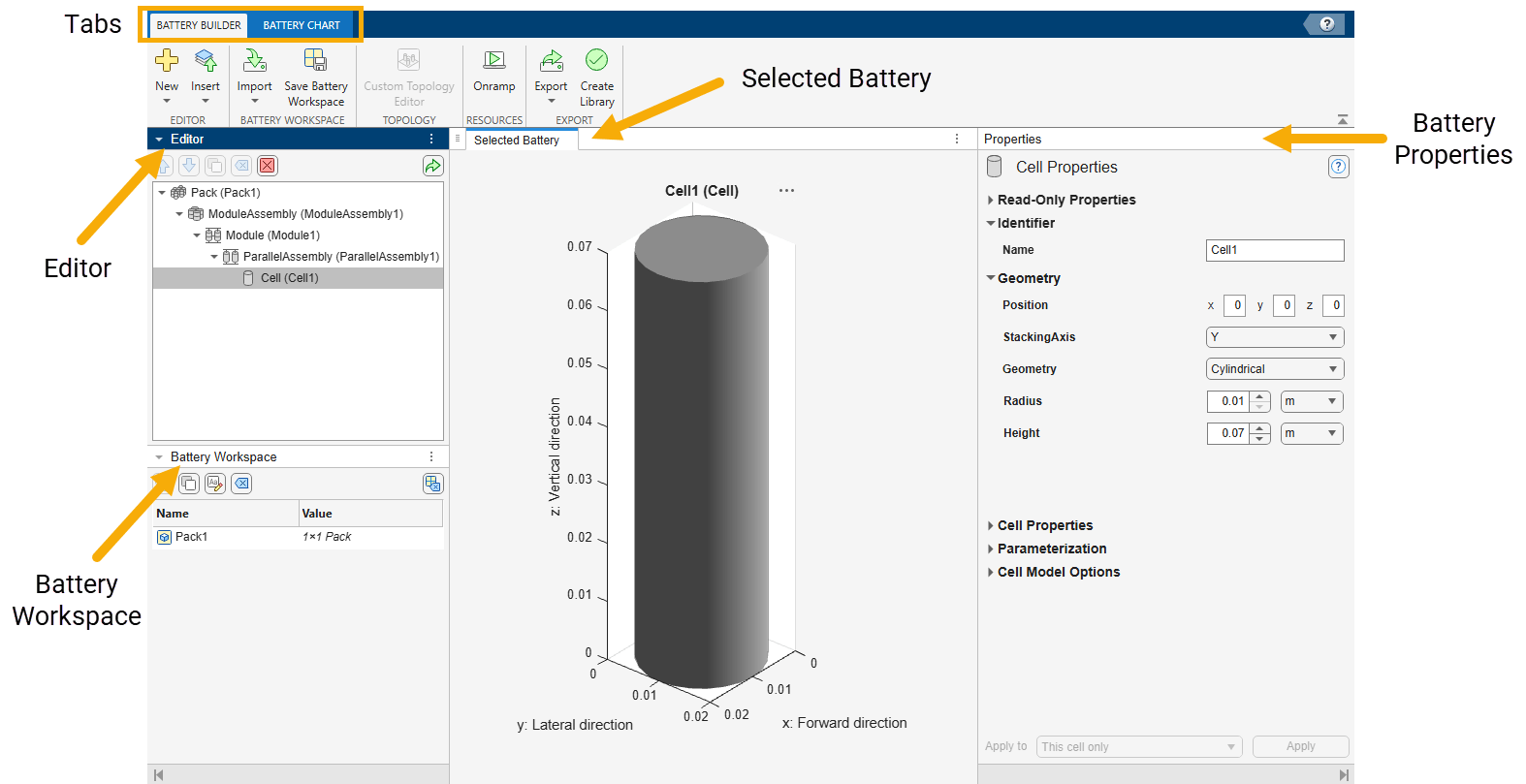

Use the Battery Builder app to interactively create a battery pack with thermal effects and build a Simscape™ model that you can use as a starting point for your simulations.
Build Detailed Model of Battery Pack from Cylindrical Cells

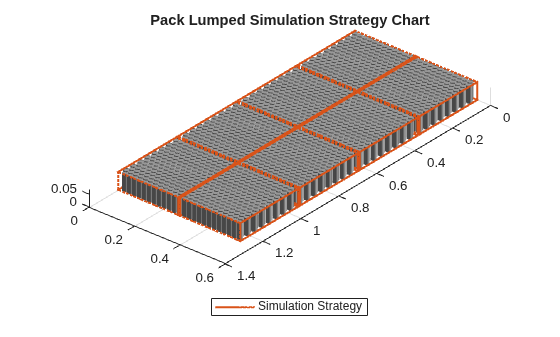

Create and build Simscape™ system models for various battery designs and configurations based on cylindrical battery cells in Simscape Battery™. The buildBattery function allows you to automatically generate Simscape models for these Simscape Battery objects:
Build Detailed Model of Battery Pack from Pouch Cells
Create and build Simscape™ system models for various battery designs and configurations based on pouch battery cells in Simscape Battery™. The buildBattery function allows you to automatically generate Simscape models for these Simscape Battery objects:
Build Battery Model from Custom Cell Component

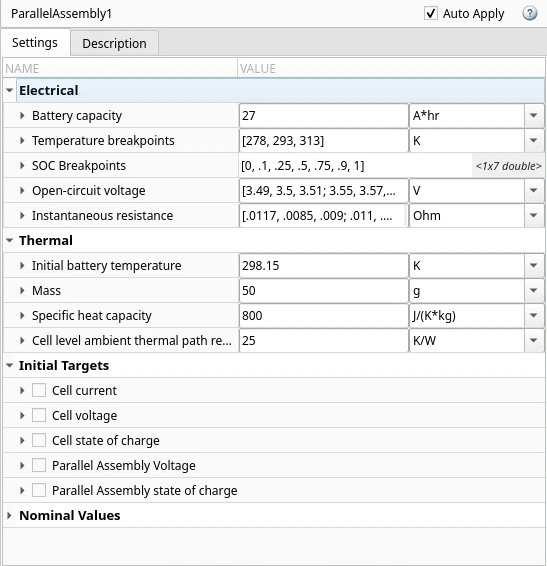

Create and build a Simscape™ model of a battery parallel assembly from a custom cell component. To build a battery system, you can either use the cell blocks in the Simscape Battery™ library or use a custom cell component. This approach allows you to use a custom cell component tailored to your requirements to build a battery system.
Design Battery Module for Automotive Requirements

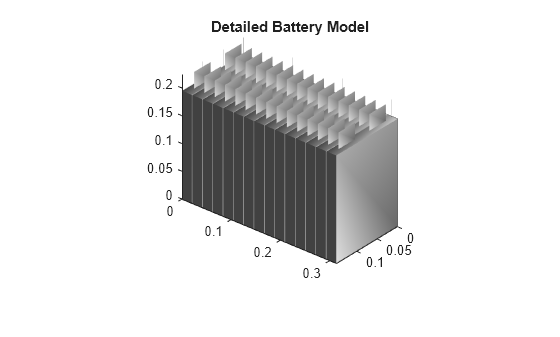

Design a battery module and a cooling plate from battery cell test data. Modular battery units are a good solution to decrease the cost of automotive battery packs. Battery modules can help meet requirements of different customers in similar industry domains. The battery cells are typically parameterized using pulse discharge and charge data. This example uses the hybrid pulse power characterization (HPPC) test [1] to estimate the battery ohmic resistance and other dynamic resistance values.
Inject Faults in Battery Models

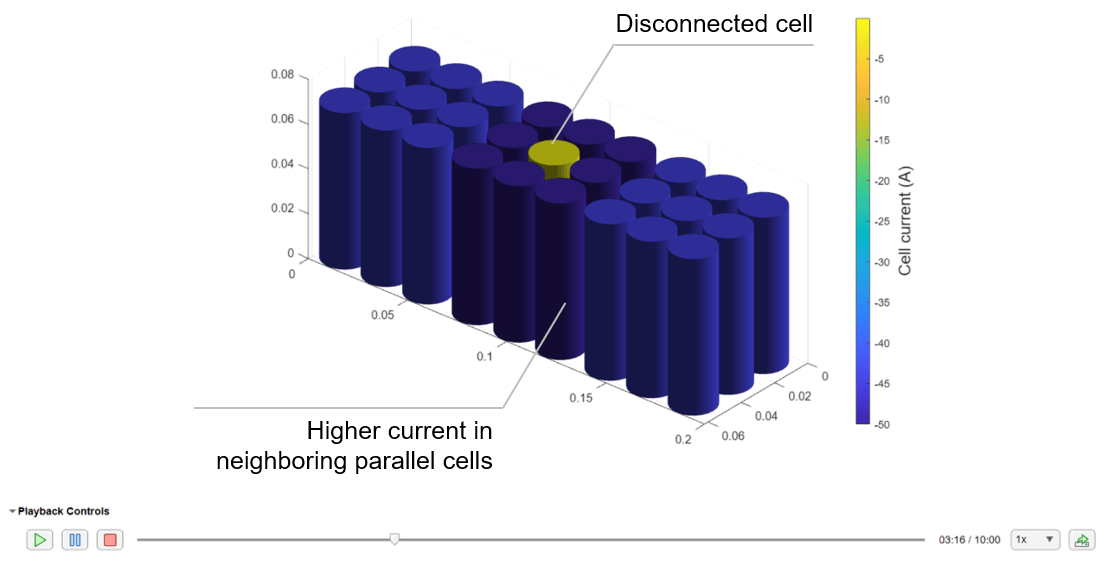

Inject faults in battery models during simulations using Simscape™ Battery™ and Simulink® software. First, you explore the effect of disconnecting a battery cell from the other cells of a parallel assembly inside a battery module. A cell disconnection typically happens due to a weld failure or a failure in the cell current interruption device. Then, you add an internal short-circuit fault to a cell of a parallel assembly inside a battery module. The fault triggers a set of exothermic reactions, known as a thermal runaway. You activate both faults during the simulation by using a timed trigger at a simulation time of 30 seconds.
Apply Temperature-Dependent Cell Parameter Variations to Battery Module
Apply temperature-dependent parameter variations to the individual cell models in a battery module generated using Simscape™ Battery™ objects and functions. Modeling temperature-dependent parameter variation is essential for achieving accurate performance predictions, optimizing efficiency, and designing and developing advanced battery systems.
Teaching Resources
Battery Systems: Introduction
Learn basic battery pack terminology, design, cell modeling, and system management using MATLAB, Simulink, and Simscape.
