Discrete FIR Filter

Model FIR filters

Libraries:
Simulink / Discrete
HDL Coder / Discrete
HDL Coder / HDL Floating Point Operations

Description

The Discrete FIR Filter block independently filters each channel of the input signal with the specified digital FIR filter. The block can implement static filters with fixed coefficients, and time-varying filters with coefficients that change over time. You can tune the coefficients of a static filter during simulation.

This block filters each channel of the input signal independently over time. The Input processing parameter allows you to specify whether the block treats each element of the input as an independent channel (sample-based processing), or each column of the input as an independent channel (frame-based processing). To perform frame-based processing, you must have a DSP System Toolbox™ license.

The output dimensions equal the input dimensions, except when you specify a matrix of filter taps for the Coefficients parameter. When you do so, the output dimensions depend on the number of different sets of filter taps you specify.

This block supports custom state attributes to customize and generate code more efficiently. For an example, see Custom State Attributes in Discrete FIR Filter block. Under certain conditions, the block also supports SIMD code generation. For details, see Code Generation.

The outputs of this block numerically match the outputs of the DSP System Toolbox Digital Filter Design (DSP System Toolbox) block.

This block supports the Simulink^® state logging feature. For more information, see State.

Filter Structure Support

You can change the filter structure implemented with the Discrete FIR Filter block by selecting one of the following from the Filter structure parameter:

Direct form
Direct form symmetric
Direct form antisymmetric
Direct form transposed
Lattice MA

You must have an available DSP System Toolbox license to run a model with any of these filter structures other than Direct form.

For more information on the filter structures, see Algorithms.

Specifying Initial States

The Discrete FIR Filter block initializes the internal filter states to zero by default, which has the same effect as assuming that past inputs and outputs are zero. You can optionally use the Initial states parameter to specify nonzero initial conditions for the filter delays.

To determine the number of initial states you must specify and how to specify them, see the table on valid initial states. The Initial states parameter can take one of the forms described in the next table.

Valid Initial States

Initial Condition Description

Initial Condition	Description
Scalar	The block initializes all delay elements in the filter to the scalar value.
Vector or matrix (for applying different delay elements to each channel)	Each vector or matrix element specifies a unique initial condition for a corresponding delay element in a corresponding channel: The vector length equals the product of the number of input channels and the number of delay elements in the filter, `#_of_filter_coeffs-1` (or `#_of_reflection_coeffs` for `Lattice MA`). The matrix must have the same number of rows as the number of delay elements in the filter, `#_of_filter_coeffs-1` (`#_of_reflection_coeffs` for `Lattice MA`), and must have one column for each channel of the input signal.

Scalar

The block initializes all delay elements in the filter to the scalar value.

Vector or matrix
(for applying different delay elements to each channel)

Each vector or matrix element specifies a unique initial condition for a corresponding delay element in a corresponding channel:

The vector length equals the product of the number of input channels and the number of delay elements in the filter, #_of_filter_coeffs-1 (or #_of_reflection_coeffs for Lattice MA).
The matrix must have the same number of rows as the number of delay elements in the filter, #_of_filter_coeffs-1 (#_of_reflection_coeffs for Lattice MA), and must have one column for each channel of the input signal.

Examples

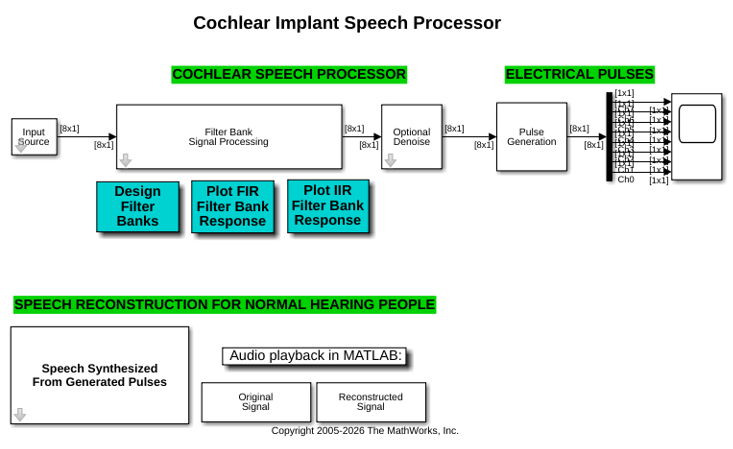

Cochlear Implant Speech Processor

Simulate the design of a cochlear implant that can be placed in the inner ear of a profoundly deaf person to restore partial hearing. Signal processing is used in cochlear implant development to convert sound to electrical pulses. The pulses can bypass the damaged parts of a deaf person's ear and be transmitted to the brain to provide partial hearing.

(DSP System Toolbox)

Active Noise Control with Simulink Real-Time

Design a real-time active noise control system using a Speedgoat® Simulink® Real-Time™ target.

(Audio Toolbox)

Acoustic Noise Cancellation (LMS)

Use the least mean square (LMS) algorithm to subtract noise from an input signal. The example uses a preconfigured Simulink® model. The LMS Filter block in the dspanc model models an adaptive filter that uses the reference signal at its Input port and the desired signal at the Desired port to automatically match the filter response. The LMS Filter block subtracts the filtered noise from the original signal. As the filter converges, the resultant error signal contains only the original signal.

(DSP System Toolbox)

Use the Fixed-Point Tool to Rescale a Fixed-Point Model

Show you how to use the Fixed-Point Tool to refine the scaling of fixed-point data types associated with the feedback controller model fxpdemo_feedback. The Fixed-Point Tool enables multiple workflows for converting a model to use fixed-point data types.

(Fixed-Point Designer)

Programmable FIR Filter for FPGA

Implement a programmable FIR filter for hardware. You can program the filter to the required response by loading the coefficients into internal registers using a memory-style interface.

(DSP System Toolbox)

Ports

Input

expand all

In — Input signal
scalar | vector | matrix

Input signal to filter, specified as a scalar, vector, or matrix.

The Discrete FIR Filter block accepts real and complex signals of any numeric data type supported by Simulink.

Dependencies

When you set Coefficient source to Dialog parameters, the port for the input signal is unlabeled. When you set Coefficient source to Input port, the port for the input signal is labeled In.

Num — Filter coefficients
scalar | vector

Specify the filter coefficients as a scalar or a vector. When you specify a row vector of filter taps, the block applies a single filter to the input. To apply multiple filters to the input, specify the coefficients in the matrix form through the Coefficients parameter.

Dependencies

To enable this port, set Coefficient source to Input port.

External reset — External reset signal
scalar

External reset signal, specified as a scalar. When the specified trigger event occurs, the block resets the states to their initial conditions.

Tip

The icon for this port changes based on the value of the External reset parameter.

Dependencies

To enable this port, set External reset to Rising, Falling, Either, Level, or Level hold.

⎍ — Enable signal
scalar

Enable signal, specified as a scalar. This port can control execution of the block. The block is enabled when the input to this port is nonzero, and is disabled when the input is 0. The value of the input is checked at the same time step as the block execution.

Dependencies

To enable this port, select the Show enable port check box.

Output

expand all

Port_1 — Filtered output signal
scalar | vector | matrix

Filtered output signal, returned as a scalar, vector, or a matrix. The Discrete FIR Filter block outputs real and complex signals of any numeric data type supported by Simulink.

When the input to the block is fixed-point, the data type of the block output is determined based on the value you specify in the Output parameter. When the input is floating-point, the output data type matches the input data type since floating-point inheritance takes precedence over the fixed-point settings.

When you set Sample time to -1, sample time of the output signal is same as the sample time of the input signal In.

Parameters

expand all

Main

Coefficient source — Source of coefficients
`Dialog parameters` (default) | `Input port`

Choose to specify the filter coefficients using tunable dialog parameters or through an input port, which is useful for time-varying coefficients.

Programmatic Use

Block Parameter: CoefSource

Type: character vector

Values: 'Dialog parameters' | 'Input port'

Default: 'Dialog parameters'

Filter structure — Filter structure
`Direct form` (default) | `Direct form symmetric` | `Direct form antisymmetric` | `Direct form transposed` | `Lattice MA`

Select the filter structure you want the block to implement. For more information, see Algorithms.

Dependencies

You must have an available DSP System Toolbox license to run a model with a Discrete FIR Filter block that implements any filter structure other than Direct form.

Programmatic Use

Block Parameter: FilterStructure

Type: character vector

Values:

'Direct form' | 'Direct form symmetric' | 'Direct form
										antisymmetric' | 'Direct form transposed' | 'Lattice
										MA'

Default: 'Direct form'

Coefficients — Filter coefficients
`[0.5 0.5]` (default) | scalar | vector | matrix

Specify the filter coefficients as a scalar, vector or a matrix.

When you specify a row vector of filter taps, the block applies a single filter to the input. To apply multiple filters to the same input, specify a matrix of coefficients, where each row represents a different set of filter taps. To implement multiple filters, set Filter structure to Direct form and the input must be a scalar.

Dependencies

To enable this parameter, set Coefficient source to Dialog parameters.

Programmatic Use

Block Parameter: Coefficients

Type: character vector

Values: vector

Default: '[0.5 0.5]'

Input processing — Sample- or frame-based processing
`Elements as channels (sample based)` (default) | `Columns as channels (frame based)`

Specify whether the block performs sample- or frame-based processing. You can select one of the following options:

Elements as channels (sample based) — Treat each element of the input as an independent channel (sample-based processing).
Columns as channels (frame based) — Treat each column of the input as an independent channel (frame-based processing).
Note
Frame-based processing requires a DSP System Toolbox license.
For more information, see Sample- and Frame-Based Concepts (DSP System Toolbox).

Programmatic Use

Block Parameter: InputProcessing

Type: character vector

Values:

'Columns as channels (frame based)' | 'Elements as
										channels (sample based)'

Default: 'Elements as channels (sample based)'

Initial states — Initial conditions of filter states
`0` (default) | scalar | vector | matrix

Specify the initial conditions of the filter states. To learn how to specify initial states, see Specifying Initial States.

Programmatic Use

Block Parameter: InitialStates

Type: character vector

Values: scalar | vector | matrix

Default: '0'

Show enable port — Create enable port
`off` (default) | `on`

Select to control execution of this block with an enable port. The block is considered enabled when the input to this port is nonzero, and is disabled when the input is 0. The value of the input is checked at the same time step as the block execution.

Programmatic Use

Block Parameter: ShowEnablePort

Type: character vector

Values: 'off' | 'on'

Default: 'off'

External reset — External state reset
`None` (default) | `Rising` | `Falling` | `Either` | `Level` | `Level hold`

Specify the trigger event to use to reset the states to the initial conditions.

Reset Mode	Behavior
`None`	No reset
`Rising`	Reset on a rising edge
`Falling`	Reset on a falling edge
`Either`	Reset on either a rising or falling edge
`Level`	Reset in either of these cases: When the reset signal is nonzero at the current time step When the reset signal value changes from nonzero at the previous time step to zero at the current time step
`Level hold`	Reset when the reset signal is nonzero at the current time step

Programmatic Use

Block Parameter: ExternalReset

Type: character vector

'Level
                        hold'

Default: 'None'

Sample time (-1 for inherited) — Interval between samples
`-1` (default) | scalar | vector

Specify the time interval between samples. To inherit the sample time, set this parameter to -1. For more information, see Specify Sample Time.

Dependencies

This parameter is visible only if you set it to a value other than -1. To learn more, see Blocks for Which Sample Time Is Not Recommended.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	`SampleTime`
Values:	`"-1"` (default) \| scalar or vector in quotes

View Filter Response — View filter response
button

Click this button to open the Filter Visualization Tool (fvtool (DSP System Toolbox)) and display the filter response of the filter defined in the block dialog box.

Dependencies

To enable this parameter, set the Coefficient source parameter to Dialog source.

This parameter appears only if you have a valid DSP System Toolbox license.

Data Types

Tap sum — Tap sum data type
`Inherit: Same as input` (default) | `Inherit: Inherit via internal rule` | `int8` | `uint8` | `int16` | `uint16` | `int32` | `uint32` | `int64` | `uint64` | `fixdt(1,16,0)` | `<data type expression>`

Specify the tap sum data type of a direct form symmetric or direct form antisymmetric filter, which is the data type the filter uses when it sums the inputs prior to multiplication by the coefficients. You can set it to:

A rule that inherits a data type, for example, Inherit: Inherit via internal rule
A built-in integer, for example, int8
A data type object, for example, a Simulink.NumericType object
An expression that evaluates to a data type, for example, fixdt(1,16,0)

The Data Type Assistant helps you set data attributes. To use the Data Type Assistant, click . For more information, see Specify Data Types Using Data Type Assistant.

Dependencies

This parameter is only visible when you set the Filter structure to Direct form symmetric or Direct form antisymmetric.

Programmatic Use

Block Parameter: TapSumDataTypeStr

Type: character vector

Values:

'Inherit: Same as input' | 'int8' | 'uint8' | 'int16' |
										'uint16' | 'int32' | 'uint32' | 'int64' | 'uint64' |
										'fixdt(1,16,0)' | '<data type
									expression>'

Default: 'Inherit: Same as input'

Coefficients — Coefficient data type
`Inherit: Same wordlength as input` (default) | `int8` | `uint8` | `int16` | `uint16` | `int32` | `uint32` | `int64` | `uint64` | `fixdt(1,16,0)` | `<data type expression>`

Specify the coefficient data type. You can set it to:

A rule that inherits a data type, for example, Inherit: Same word length as input
A built-in integer, for example, int8
A data type object, for example, a Simulink.NumericType object
An expression that evaluates to a data type, for example, fixdt(1,16,0)

The Data Type Assistant helps you set data attributes. To use the Data Type Assistant, click . For more information, see Specify Data Types Using Data Type Assistant.

Programmatic Use

Block Parameter: CoefDataTypeStr

Type: character vector

Values:

'Inherit: Same word length as input'| 'int8' | 'uint8'
										| 'int16' | 'uint16' | 'int32' | 'uint32' | 'int64' |
										'uint64' | 'fixdt(1,16)' | 'fixdt(1,16,0)' | '<data type
										expression>'

Default: 'Inherit: Same wordlength as input'

Coefficients minimum — Minimum value of coefficients
`[]` (default) | scalar

Specify the minimum value that a filter coefficient should have. The default value is [] (unspecified). Simulink software uses this value to perform:

Parameter range checking (see Specify Minimum and Maximum Values for Block Parameters)
Automatic scaling of fixed-point data types

Programmatic Use

Block Parameter: CoeffMin

Type: character vector

Values: scalar

Default: '[]'

Coefficients maximum — Maximum value of coefficients
`[]` (default) | scalar

Specify the maximum value that a filter coefficient should have. The default value is [] (unspecified). Simulink software uses this value to perform:

Parameter range checking (see Specify Minimum and Maximum Values for Block Parameters)
Automatic scaling of fixed-point data types

Programmatic Use

Block Parameter: CoeffMax

Type: character vector

Values: scalar

Default: '[]'

Product output — Product output data type
`Inherit: Inherit via internal rule` (default) | `Inherit: Same as input` | `int8` | `uint8` | `int16` | `uint16` | `int32` | `uint32` | `int64` | `uint64` | `fixdt(1,16,0)` | `<data type expression>`

Specify the product output data type. You can set it to:

A rule that inherits a data type, for example, Inherit: Inherit via internal rule
A built-in data type, for example, int8
A data type object, for example, a Simulink.NumericType object
An expression that evaluates to a data type, for example, fixdt(1,16,0)

The Data Type Assistant helps you set data attributes. To use the Data Type Assistant, click . For more information, see Specify Data Types Using Data Type Assistant.

Programmatic Use

Block Parameter: ProductDataTypeStr

Type: character vector

Values:

'Inherit: Inherit via internal rule' | 'Inherit: Same
										as input' | 'int8' | 'uint8' | 'int16' | 'uint16' | 'int32'
										| 'uint32' | 'int64' | 'uint64' | 'fixdt(1,16,0)' |
										'<data type expression>'

Default: 'Inherit: Inherit via internal rule'

Accumulator — Accumulator data type
`Inherit: Inherit via internal rule` (default) | `Inherit: Same as input` | `Inherit: Same as product output` | `int8` | `uint8` | `int16` | `uint16` | `int32` | `uint32` | `int64` | `uint64` | `fixdt(1,16,0)` | `<data type expression>`

Specify the accumulator data type. You can set it to:

A rule that inherits a data type, for example, Inherit: Inherit via internal rule
A built-in data type, for example, int8
A data type object, for example, a Simulink.NumericType object
An expression that evaluates to a data type, for example, fixdt(1,16,0)

The Data Type Assistant helps you set data attributes. To use the Data Type Assistant, click . For more information, see Specify Data Types Using Data Type Assistant.

Programmatic Use

Block Parameter: AccumDataTypeStr

Type: character vector

Values:

'Inherit: Inherit via internal rule' | 'Inherit: Same
										as input' | 'Inherit: Same as product output' | 'int8' |
										'uint8' | 'int16' | 'uint16' | 'int32' | 'uint32' | 'int64'
										| 'uint64' | 'fixdt(1,16,0)' | '<data type
										expression>'

Default: 'Inherit: Inherit via internal rule'

State — State data type
`Inherit: Same as accumulator` (default) | `Inherit: Same as input` | `int8` | `uint8` | `int16` | `uint16` | `int32` | `uint32` | `int64` | `uint64` | `fixdt(1,16,0)` | `<data type expression>`

Specify the state data type. You can set it to:

A rule that inherits a data type, for example, Inherit: Same as accumulator
A built-in integer, for example, int8
A data type object, for example, a Simulink.NumericType object
An expression that evaluates to a data type, for example, fixdt(1,16,0)

Dependencies

To enable this parameter, set the Filter structure to Lattice MA.

Programmatic Use

Block Parameter: StateDataTypeStr

Type: character vector

Values:

'Inherit: Same as accumulator' | 'Inherit: Same as
										input' | 'int8' | 'uint8' | 'int16' | 'uint16' | 'int32' |
										'uint32' | 'int64' | 'uint64' | 'fixdt(1,16,0)' | '<data
										type expression>'

Default: 'Inherit: Same as accumulator'

Output — Output data type
`Inherit: Same as accumulator` (default) | `Inherit: Same as input` | `int8` | `uint8` | `int16` | `uint16` | `int32` | `uint32` | `int64` | `uint64` | `fixdt(1,16)` | `fixdt(1,16,0)` | `<data type expression>`

Specify the output data type. You can set it to:

A rule that inherits a data type, for example, Inherit: Same as accumulator
A built-in data type, for example, int8
A data type object, for example, a Simulink.NumericType object
An expression that evaluates to a data type, for example, fixdt(1,16,0)

The Data Type Assistant helps you set data attributes. To use the Data Type Assistant, click . For more information, see Specify Data Types Using Data Type Assistant.

When the input to the block is floating-point, the output data type matches the input data type since floating-point inheritance takes precedence over the fixed-point settings.

Programmatic Use

Block Parameter: OutDataTypeStr

Type: character vector

Values:

'Inherit: Same as accumulator' | 'Inherit: Same as
										input' | 'int8' | 'uint8' | 'int16' | 'uint16' | 'int32' |
										'uint32' | 'int64' | 'uint64' | 'fixdt(1,16)' |
										'fixdt(1,16,0)' | '<data type
									expression>'

Default: 'Inherit: Same as accumulator'

Output minimum — Minimum output value for range checking
`[]` (default) | scalar

Lower value of the output range that the software checks.

The software uses the minimum to perform:

Parameter range checking (see Specify Minimum and Maximum Values for Block Parameters) for some blocks.
Simulation range checking (see Specify Signal Ranges and Enable Simulation Range Checking).
Automatic scaling of fixed-point data types.
Optimization of the code that you generate from the model. This optimization can remove algorithmic code and affect the results of some simulation modes such as SIL or external mode. For more information, see Optimize using the specified minimum and maximum values (Embedded Coder).

Tips

Output minimum does not saturate or clip the actual output signal. Use the Saturation block instead.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	`OutMin`
Values:	`'[]'` (default) \| scalar in quotes

Output maximum — Maximum output value for range checking
`[]` (default) | scalar

Upper value of the output range that the software checks.

The software uses the maximum value to perform:

Parameter range checking (see Specify Minimum and Maximum Values for Block Parameters) for some blocks.
Simulation range checking (see Specify Signal Ranges and Enable Simulation Range Checking).
Automatic scaling of fixed-point data types.
Optimization of the code that you generate from the model. This optimization can remove algorithmic code and affect the results of some simulation modes such as SIL or external mode. For more information, see Optimize using the specified minimum and maximum values (Embedded Coder).

Tips

Output maximum does not saturate or clip the actual output signal. Use the Saturation block instead.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	`OutMax`
Values:	`'[]'` (default) \| scalar in quotes

Lock data type settings against changes by the fixed-point tools — Prevent fixed-point tools from overriding data types
`off` (default) | `on`

Select to lock data type settings of this block against changes by the Fixed-Point Tool and the Fixed-Point Advisor. For more information, see Lock the Output Data Type Setting (Fixed-Point Designer).

Programmatic Use

Block Parameter: LockScale

Values: 'off' | 'on'

Default: 'off'

Integer rounding mode — Rounding mode for fixed-point operations
`Floor` (default) | `Ceiling` | `Convergent` | `Nearest` | `Round` | `Simplest` | `Zero`

Specify the rounding mode for fixed-point operations. For more information, see Rounding Modes (Fixed-Point Designer).

Programmatic Use

Block Parameter: RndMeth

Type: character vector

Values:

'Ceiling' | 'Convergent' | 'Floor' |
                                                  'Nearest' | 'Round' | 'Simplest' |
                                                  'Zero'

Default: 'Floor'

Saturate on integer overflow — Method of overflow action
`off` (default) | `on`

Specify whether overflows saturate or wrap.

on — Overflows saturate to either the minimum or maximum value that the data type can represent.
off — Overflows wrap to the appropriate value that the data type can represent.

For example, the maximum value that the signed 8-bit integer int8 can represent is 127. Any block operation result greater than this maximum value causes overflow of the 8-bit integer.

With this parameter selected, the block output saturates at 127. Similarly, the block output saturates at a minimum output value of -128.
With this parameter cleared, the software interprets the overflow-causing value as int8, which can produce an unintended result. For example, a block result of 130 (binary 1000 0010) expressed as int8 is -126.

Tips

Consider selecting this parameter when your model has a possible overflow and you want explicit saturation protection in the generated code.
Consider clearing this parameter when you want to optimize efficiency of your generated code. Clearing this parameter also helps you to avoid overspecifying how a block handles out-of-range signals. For more information, see Troubleshoot Signal Range Errors.
When you select this parameter, saturation applies to every internal operation on the block, not just the output or result.
In general, the code generation process can detect when overflow is not possible. In this case, the code generator does not produce saturation code.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	`SaturateOnIntegerOverflow`
Values:	`'off'` (default) \| `'on'`

Block Characteristics

Data Types	`double` \| `fixed point` \| `integer` \| `single`
Direct Feedthrough	`no`
Multidimensional Signals	`no`
Variable-Size Signals	`yes`
Zero-Crossing Detection	`no`

More About

expand all

Filter Structure Diagrams for Fixed-Point Signals

The following diagrams show the filter structure and the data types used within the Discrete FIR Filter block for fixed-point signals.

Direct Form

You cannot specify the state data type on the block mask for this structure because the input states have the same data types as the input.

Direct Form Symmetric

You cannot specify the state data type on the block mask for this structure because the input states have the same data types as the input.

Direct Form Antisymmetric

You cannot specify the state data type on the block mask for this structure because the input states have the same data types as the input.

Direct Form Transposed

Lattice MA

Model Coverage

If you have a Simulink Coverage™ license, the Discrete FIR Filter block receives decision coverage if you set the External reset block parameter to any option except for None, or if you select the Show enable port block parameter. If your model uses a State Control (HDL Coder) block, you cannot collect coverage for the external reset and enable ports when the State control parameter is Synchronous.

For the External reset block parameter, decision coverage measures a true outcome for time steps where the block resets and a false outcome for time steps where the block does not reset. To receive 100% decision coverage, the block must reset for at least one time step and not reset for at least one time step.

For the Show enable port block parameter, decision coverage measures a true outcome for time steps where the block is enabled and a false outcome for time steps where the block is not enabled. To receive 100% decision coverage, the block must be enabled for at least one time step and not enabled for at least one time step.

If you select the Saturation on integer overflow (Simulink Coverage) parameter, the Discrete FIR Filter block receives saturation on integer overflow coverage. For more information, see Saturate on Integer Overflow Coverage (Simulink Coverage).

Algorithms

These are the structure diagrams used within the Discrete FIR Filter block.

Direct Form

Direct Form Symmetric

It is assumed that the filter coefficients are symmetric. The block only uses the first half of the coefficients for filtering.

Direct Form Antisymmetric

It is assumed that the filter coefficients are antisymmetric. The block only uses the first half of the coefficients for filtering.

Direct Form Transposed

States are complex when either the inputs or the coefficients are complex.

Lattice MA

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

This block supports custom state attributes to customize and generate code more efficiently. To access or set these attributes, open the Model Data Editor. On the Modeling tab, click Model Data Editor. For an example, see Custom State Attributes in Discrete FIR Filter block.

Generate SIMD code using Intel AVX2 code replacement library

Note

Requires Embedded Coder^® license

The Discrete FIR Filter block supports SIMD code generation using Intel AVX2 code replacement library under these conditions:

Filter structure is set to Direct form or Direct form transposed.
Input processing is set to Columns as channels (frame based).
Input signal is real-valued with real filter coefficients.
When Filter structure is set to Direct form, input signal is complex-valued with real or complex filter coefficients.
Input signal has a data type of single or double.

Generate SIMD code by leveraging target hardware instruction set extensions (since R2022b)

Note

Requires Simulink Coder™ or Embedded Coder license

You can generate SIMD code for the Discrete FIR Filter block on all Intel^® platforms, ARM^® Cortex^®-A processors, and Apple silicon processors by using the model configuration parameter Leverage target hardware instruction set extensions under these conditions:

You set Filter structure to Direct form
You set Input processing to Columns as channels (frame based)
Input signal is real-valued with real filter coefficients
Input signal is real-valued or complex-valued.
Data type of the input signal is single (ARM Cortex-A processors)
Data type of the input signal is single or double (Intel platforms)

In addition, configure your model appropriately.

In the Modeling tab of the Simulink model window, click Model Settings and configure these parameters under Code Generation.

In the Optimization pane:
- Provide a specific instruction set in the Leverage target hardware instruction set extensions parameter.
- Select the Optimize reductions parameter.
- Under Optimization levels, set Level to Maximum and Priority to Maximize execution speed.
In the Interface pane, under Software environment, clear non-finite numbers.

To generate SIMD code from this block using this workflow, see Use Intel AVX2 Code Replacement Library to Generate SIMD Code from Simulink Blocks (DSP System Toolbox).

For computationally intensive operations on supported blocks, SIMD intrinsics can significantly improve the performance of the generated code on Intel platforms. For more details, see Optimize Code for Reduction Operations by Using SIMD (Simulink Coder). To generate SIMD code from this block, see Generate SIMD Code from Simulink Blocks for Intel Platforms (Simulink Coder).

HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.

HDL Architecture

The block has HDLDataPath as a default architecture. This architecture provides additional configuration options that affect HDL implementation and synthesized logic.

HDL Block Properties

HDL Block Properties	Description
InputPipeline	Number of input pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is `0`. For more details, see InputPipeline (HDL Coder).
OutputPipeline	Number of output pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is `0`. For more details, see OutputPipeline (HDL Coder).
ConstrainedOutputPipeline	Number of registers to place at the outputs by moving existing delays within your design. Distributed pipelining does not redistribute these registers. The default is `0`. For more details, see ConstrainedOutputPipeline (HDL Coder).
FlattenFilter	Remove hierarchy of Filter subsystem from generated HDL code. The default is `auto`. See FlattenHierarchy (HDL Coder).
DSPStyle	Synthesis attributes for multiplier mapping. The default is `none`. See also DSPStyle (HDL Coder).
SharingFactor	Number of functionally equivalent resources to map to a single shared resource. The default is 0. See also Resource Sharing (HDL Coder).
StreamingFactor	Number of parallel data paths, or vectors, that are time multiplexed to transform into serial, scalar data paths. The default is 0, which implements fully parallel data paths. See also Streaming (HDL Coder).
ConstMultiplierOptimization	Canonical signed digit (CSD) or factored CSD optimization. The default is `none`. See also ConstMultiplierOptimization (HDL Coder).
MultiplerArchitecture	Select the multipler architecture as `linear` or `shiftadd`. The default is `linear`. For more information, see HDL Code Generation section in Product, Matrix Multiply.
MultiplierInputPipeline	Specify the number of pipeline stages to add at filter multiplier inputs. See also MultiplierInputPipeline (HDL Coder).
MultiplierOutputPipeline	Specify the number of pipeline stages to add at filter multiplier outputs. See also MultiplierOutputPipeline (HDL Coder).
AdderChainArchitecture	Select the adder architecture to generate linear chain or tree structure of adders to compute sum of elements. The default is `tree`. For more information, see HDL Code Generation section in Sum.
AdderOutputPipeline	Number of output pipeline stages to insert in the generated code for addition operation. The default is `0`. For more details, see OutputPipeline (HDL Coder).

Data Type Support

The block supports these data types for HDL code generation:

Input Port	Dimension	Fixed-Point	Floating-Point	Built-in Integers	Bus	Boolean	Enumerated	Complex Signal
In	Scalar Vector Matrix	Yes	Half Single Double	Yes	Yes	Yes	Yes	Yes

Input Port

Dimension

Fixed-Point

Floating-Point

Built-in Integers

Bus

Boolean

Enumerated

Complex Signal

Scalar

Vector

Matrix

Yes

Half

Single

Double

Yes

Optimizations

The block participates in these HDL optimizations to optimize the speed, and area.

Area Optimization

Optimization	Description
Resource Sharing (HDL Coder)	Resource sharing is an area optimization in which HDL Coder identifies multiple functionally equivalent resources and replaces them with a single resource.
Streaming (HDL Coder)	Streaming is an area optimization in which HDL Coder transforms a vector data path to a scalar data path (or to several smaller-sized vector data paths).

Speed Optimization

Optimization	Description
Distributed Pipelining (HDL Coder)	Distributed pipelining, or register retiming, is a speed optimization that moves existing delays in a design to reduce the critical path while preserving functional behavior.
Clock-Rate Pipelining (HDL Coder)	Clock-rate pipelining is an optimization framework in HDL Coder that allows other speed and area optimizations to introduce latency at the clock rate.
Adaptive Pipelining (HDL Coder)	Adaptive pipelining optimization creates patterns or combination of blocks with registers that can improve the achievable clock frequency and reduce the area usage on the FPGA boards by inserting pipeline registers to the blocks in your design.
Critical Path Estimation (HDL Coder)	To quickly identify the most likely critical path in your design, use Critical Path Estimation. Critical path estimation speeds up the iterative process of finding the critical path. To know blocks that are characterized in critical path estimation, see Characterized Blocks (HDL Coder).

Limitations and Considerations

The block has these limitations:

You must set Initial conditions to 0. HDL code generation is not supported for nonzero initial states.
Filter Structure: Lattice MA.

To configure the Discrete FIR Filter block for special cases such as a programmable filter or a multichannel filter, use the following block settings:

Filter Case	Considerations
Programmable Filter	HDL Coder supports programmable filters for Discrete FIR Filter blocks. On the filter block mask, set Coefficient source to Input port. Connect a vector signal to the `Num` coefficient port.
Multichannel Filter	HDL Coder supports the use of vector inputs to Discrete FIR Filter blocks, where each element of the vector represents an independent channel. Connect a vector signal to the Discrete FIR Filter block input port. Specify Input processing as `Elements as channels (sample based)`.
Frame-Based Input	HDL Coder supports the use of vector inputs to Discrete FIR Filter blocks, where each element of the vector represents a sample in time. You can use an input vector of up to 512 samples. The frame-based implementation supports fixed-point input and output data types, and uses full-precision internal data types. You can use real input signals with real coefficients, complex input signals with real coefficients, or real input signals with complex coefficients. You can also use frame-based input with programmable coefficients. Connect a vector signal to the Discrete FIR Filter block input port. Specify Input processing as `Columns as channels (frame based)`, and set Filter structure to `Direct form` or `Direct form transposed`. For frame-based input with programmable coefficients, set Filter structure to `Direct form`. When you use frame-based input data you can use either complex input signals and real coefficients, or complex coefficients and real input signals.
Filter with Control Ports	You can generate HDL code for filters with the optional enable port, and with the optional reset port.

Note

For hardware-friendly valid and reset control signals, and to model exact hardware latency behavior in Simulink, use the Discrete FIR Filter (DSP HDL Toolbox) block instead.

PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.

Version History

Introduced in R2008a

expand all

R2024b: Generate SIMD code for Apple silicon processors

In R2024b, if you have Embedded Coder, you can generate SIMD code for the Discrete FIR Filter block for Apple silicon processors by using the model configuration parameter Leverage target hardware instruction set extensions. For more information, see Use Target Hardware Instruction Set Extensions to Generate SIMD Code from Simulink Blocks for Apple silicon (DSP System Toolbox).

R2024b: View filter response

Click the View Filter Response button to visualize the frequency response of the filter that you specify in the block dialog box.

R2023b: Generate SIMD Code for Complex Signals

In R2023b, if you have Embedded Coder, you can generate SIMD code for the Discrete FIR Filter block when the input signal is complex-valued by using the model configuration parameter Leverage target hardware instruction set extensions.

R2023b: Conditional display of the Sample time parameter

The Discrete FIR Filter block no longer displays the Sample time parameter in the block parameters dialog box by default. The parameter is visible only if you set the sample time to a value other the default value (-1) at the command line or in an existing model. For more information, see Blocks for Which Sample Time Is Not Recommended.

Discrete FIR Filter

Description

Filter Structure Support

Specifying Initial States

Examples

Cochlear Implant Speech Processor

Active Noise Control with Simulink Real-Time

Acoustic Noise Cancellation (LMS)

Use the Fixed-Point Tool to Rescale a Fixed-Point Model

Programmable FIR Filter for FPGA

Ports

Input

In — Input signal scalar | vector | matrix

Dependencies

Num — Filter coefficients scalar | vector

Dependencies

External reset — External reset signal scalar

Dependencies

⎍ — Enable signal scalar

Dependencies

Output

Port_1 — Filtered output signal scalar | vector | matrix

Parameters

Main

Coefficient source — Source of coefficients Dialog parameters (default) | Input port

Programmatic Use

Filter structure — Filter structure Direct form (default) | Direct form symmetric | Direct form antisymmetric | Direct form transposed | Lattice MA

Dependencies

Programmatic Use

Coefficients — Filter coefficients [0.5 0.5] (default) | scalar | vector | matrix

Dependencies

Programmatic Use

Input processing — Sample- or frame-based processing Elements as channels (sample based) (default) | Columns as channels (frame based)

Programmatic Use

Initial states — Initial conditions of filter states 0 (default) | scalar | vector | matrix

Programmatic Use

Show enable port — Create enable port off (default) | on

Programmatic Use

External reset — External state reset None (default) | Rising | Falling | Either | Level | Level hold

Programmatic Use

Sample time (-1 for inherited) — Interval between samples -1 (default) | scalar | vector

Dependencies

Programmatic Use

View Filter Response — View filter response button

Dependencies

Data Types

Tap sum — Tap sum data type Inherit: Same as input (default) | Inherit: Inherit via internal rule | int8 | uint8 | int16 | uint16 | int32 | uint32 | int64 | uint64 | fixdt(1,16,0) | <data type expression>

Dependencies

Programmatic Use

Coefficients — Coefficient data type Inherit: Same wordlength as input (default) | int8 | uint8 | int16 | uint16 | int32 | uint32 | int64 | uint64 | fixdt(1,16,0) | <data type expression>

Programmatic Use

Coefficients minimum — Minimum value of coefficients [] (default) | scalar

Programmatic Use

Coefficients maximum — Maximum value of coefficients [] (default) | scalar

Programmatic Use

Product output — Product output data type Inherit: Inherit via internal rule (default) | Inherit: Same as input | int8 | uint8 | int16 | uint16 | int32 | uint32 | int64 | uint64 | fixdt(1,16,0) | <data type expression>

Programmatic Use

Accumulator — Accumulator data type Inherit: Inherit via internal rule (default) | Inherit: Same as input | Inherit: Same as product output | int8 | uint8 | int16 | uint16 | int32 | uint32 | int64 | uint64 | fixdt(1,16,0) | <data type expression>

Programmatic Use

State — State data type Inherit: Same as accumulator (default) | Inherit: Same as input | int8 | uint8 | int16 | uint16 | int32 | uint32 | int64 | uint64 | fixdt(1,16,0) | <data type expression>

Dependencies

Programmatic Use

Output — Output data type Inherit: Same as accumulator (default) | Inherit: Same as input | int8 | uint8 | int16 | uint16 | int32 | uint32 | int64 | uint64 | fixdt(1,16) | fixdt(1,16,0) | <data type expression>

Programmatic Use

Output minimum — Minimum output value for range checking [] (default) | scalar

Tips

Programmatic Use

Output maximum — Maximum output value for range checking [] (default) | scalar

Tips

Programmatic Use

Lock data type settings against changes by the fixed-point tools — Prevent fixed-point tools from overriding data types off (default) | on

Programmatic Use

Integer rounding mode — Rounding mode for fixed-point operations Floor (default) | Ceiling | Convergent | Nearest | Round | Simplest | Zero

Programmatic Use

Saturate on integer overflow — Method of overflow action off (default) | on

Tips

Programmatic Use

Block Characteristics

More About

Filter Structure Diagrams for Fixed-Point Signals

In — Input signal
scalar | vector | matrix

Num — Filter coefficients
scalar | vector

External reset — External reset signal
scalar

⎍ — Enable signal
scalar

Port_1 — Filtered output signal
scalar | vector | matrix

Coefficient source — Source of coefficients
`Dialog parameters` (default) | `Input port`

Filter structure — Filter structure
`Direct form` (default) | `Direct form symmetric` | `Direct form antisymmetric` | `Direct form transposed` | `Lattice MA`

Coefficients — Filter coefficients
`[0.5 0.5]` (default) | scalar | vector | matrix

Input processing — Sample- or frame-based processing
`Elements as channels (sample based)` (default) | `Columns as channels (frame based)`

Initial states — Initial conditions of filter states
`0` (default) | scalar | vector | matrix

Show enable port — Create enable port
`off` (default) | `on`

External reset — External state reset
`None` (default) | `Rising` | `Falling` | `Either` | `Level` | `Level hold`

Sample time (-1 for inherited) — Interval between samples
`-1` (default) | scalar | vector

View Filter Response — View filter response
button

Tap sum — Tap sum data type
`Inherit: Same as input` (default) | `Inherit: Inherit via internal rule` | `int8` | `uint8` | `int16` | `uint16` | `int32` | `uint32` | `int64` | `uint64` | `fixdt(1,16,0)` | `<data type expression>`

Coefficients — Coefficient data type
`Inherit: Same wordlength as input` (default) | `int8` | `uint8` | `int16` | `uint16` | `int32` | `uint32` | `int64` | `uint64` | `fixdt(1,16,0)` | `<data type expression>`

Coefficients minimum — Minimum value of coefficients
`[]` (default) | scalar

Coefficients maximum — Maximum value of coefficients
`[]` (default) | scalar

Product output — Product output data type
`Inherit: Inherit via internal rule` (default) | `Inherit: Same as input` | `int8` | `uint8` | `int16` | `uint16` | `int32` | `uint32` | `int64` | `uint64` | `fixdt(1,16,0)` | `<data type expression>`

Accumulator — Accumulator data type
`Inherit: Inherit via internal rule` (default) | `Inherit: Same as input` | `Inherit: Same as product output` | `int8` | `uint8` | `int16` | `uint16` | `int32` | `uint32` | `int64` | `uint64` | `fixdt(1,16,0)` | `<data type expression>`

State — State data type
`Inherit: Same as accumulator` (default) | `Inherit: Same as input` | `int8` | `uint8` | `int16` | `uint16` | `int32` | `uint32` | `int64` | `uint64` | `fixdt(1,16,0)` | `<data type expression>`

Output — Output data type
`Inherit: Same as accumulator` (default) | `Inherit: Same as input` | `int8` | `uint8` | `int16` | `uint16` | `int32` | `uint32` | `int64` | `uint64` | `fixdt(1,16)` | `fixdt(1,16,0)` | `<data type expression>`

Output minimum — Minimum output value for range checking
`[]` (default) | scalar

Output maximum — Maximum output value for range checking
`[]` (default) | scalar

Lock data type settings against changes by the fixed-point tools — Prevent fixed-point tools from overriding data types
`off` (default) | `on`

Integer rounding mode — Rounding mode for fixed-point operations
`Floor` (default) | `Ceiling` | `Convergent` | `Nearest` | `Round` | `Simplest` | `Zero`

Saturate on integer overflow — Method of overflow action
`off` (default) | `on`

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.
