predict

Predict labels using classification ensemble model

Syntax

labels = predict(ens,X)

labels = predict(ens,X,Name=Value)

[labels,scores]
= predict(___)

Description

labels = predict(ens,X) returns a vector of predicted class labels for the predictor data in the table or matrix X, based on the trained classification ensemble model (full or compact) ens.

example

labels = predict(ens,X,Name=Value) specifies additional options using one or more name-value arguments. For example, you can specify the weak learners to use for predictions, and perform computations in parallel.

[labels,scores] = predict(___) also returns a matrix of classification scores indicating the likelihood that a label comes from a particular class, using any of the input argument combinations in the previous syntaxes. For each observation in X, the predicted class label corresponds to the maximum score among all classes.

Examples

collapse all

Predict Class Labels Using Classification Ensemble

Open Live Script

Load Fisher's iris data set. Determine the sample size.

load fisheriris
N = size(meas,1);

Partition the data into training and test sets. Hold out 10% of the data for testing.

rng(1); % For reproducibility
cvp = cvpartition(N,'Holdout',0.1);
idxTrn = training(cvp); % Training set indices
idxTest = test(cvp);    % Test set indices

Store the training data in a table.

tblTrn = array2table(meas(idxTrn,:));
tblTrn.Y = species(idxTrn);

Train a classification ensemble using AdaBoostM2 and the training set. Specify tree stumps as the weak learners.

t = templateTree('MaxNumSplits',1);
Mdl = fitcensemble(tblTrn,'Y','Method','AdaBoostM2','Learners',t);

Predict labels for the test set. You trained model using a table of data, but you can predict labels using a matrix.

labels = predict(Mdl,meas(idxTest,:));

Construct a confusion matrix for the test set.

confusionchart(species(idxTest),labels)

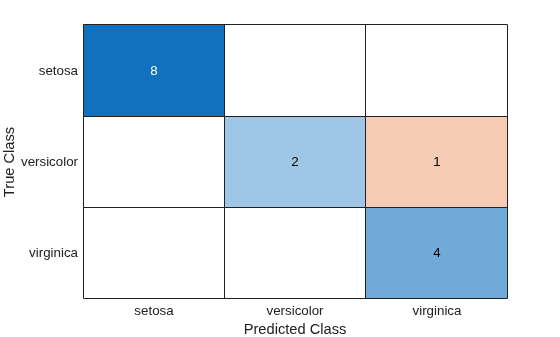

Figure contains an object of type ConfusionMatrixChart.

Mdl misclassifies one versicolor iris as virginica in the test set.

Assess Performance of Ensemble of Boosted Trees

Open Live Script

Create an ensemble of boosted trees and inspect the importance of each predictor. Using test data, assess the classification accuracy of the ensemble.

Load the arrhythmia data set. Determine the class representations in the data.

load arrhythmia
Y = categorical(Y);
tabulate(Y)

  Value    Count   Percent
      1      245     54.20%
      2       44      9.73%
      3       15      3.32%
      4       15      3.32%
      5       13      2.88%
      6       25      5.53%
      7        3      0.66%
      8        2      0.44%
      9        9      1.99%
     10       50     11.06%
     14        4      0.88%
     15        5      1.11%
     16       22      4.87%

The data set contains 16 classes, but not all classes are represented (for example, class 13). Most observations are classified as not having arrhythmia (class 1). The data set is highly discrete with imbalanced classes.

Combine all observations with arrhythmia (classes 2 through 15) into one class. Remove those observations with an unknown arrhythmia status (class 16) from the data set.

idx = (Y ~= "16");
Y = Y(idx);
X = X(idx,:);
Y(Y ~= "1") = "WithArrhythmia";
Y(Y == "1") = "NoArrhythmia";
Y = removecats(Y);

Create a partition that evenly splits the data into training and test sets.

rng("default") % For reproducibility
cvp = cvpartition(Y,"Holdout",0.5);
idxTrain = training(cvp);
idxTest = test(cvp);

cvp is a cross-validation partition object that specifies the training and test sets.

Train an ensemble of 100 boosted classification trees using AdaBoostM1. Specify to use tree stumps as the weak learners. Also, because the data set contains missing values, specify to use surrogate splits.

t = templateTree("MaxNumSplits",1,"Surrogate","on");
numTrees = 100;
mdl = fitcensemble(X(idxTrain,:),Y(idxTrain),"Method","AdaBoostM1", ...
    "NumLearningCycles",numTrees,"Learners",t);

mdl is a trained ClassificationEnsemble model.

Inspect the importance measure for each predictor.

predImportance = predictorImportance(mdl);
bar(predImportance)
title("Predictor Importance")
xlabel("Predictor")
ylabel("Importance Measure")

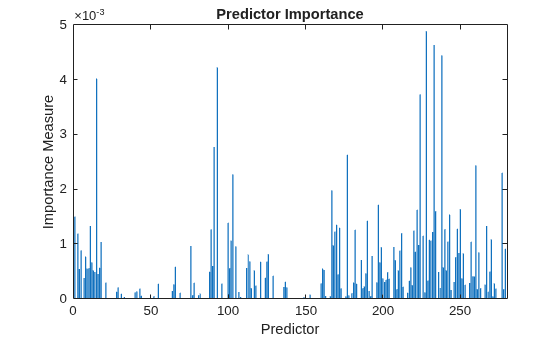

Figure contains an axes object. The axes object with title Predictor Importance, xlabel Predictor, ylabel Importance Measure contains an object of type bar.

Identify the top ten predictors in terms of their importance.

[~,idxSort] = sort(predImportance,"descend");
idx10 = idxSort(1:10)

idx10 = 1×10

   228   233   238    93    15   224    91   177   260   277

Classify the test set observations. View the results using a confusion matrix. Blue values indicate correct classifications, and red values indicate misclassified observations.

predictedValues = predict(mdl,X(idxTest,:));
confusionchart(Y(idxTest),predictedValues)

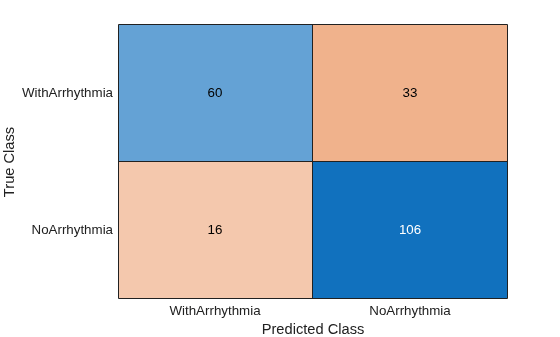

Figure contains an object of type ConfusionMatrixChart.

Compute the accuracy of the model on the test data.

error = loss(mdl,X(idxTest,:),Y(idxTest), ...
    "LossFun","classiferror");
accuracy = 1 - error

accuracy =
0.7731

accuracy estimates the fraction of correctly classified observations.

Input Arguments

collapse all

`ens` — Classification ensemble model
`ClassificationEnsemble` model object | `ClassificationBaggedEnsemble` model object | `CompactClassificationEnsemble` model object

Classification ensemble model, specified as a ClassificationEnsemble or ClassificationBaggedEnsemble model object trained with fitcensemble, or a CompactClassificationEnsemble model object created with compact.

`X` — Predictor data
numeric matrix | table

Predictor data to be classified, specified as a numeric matrix or a table.

Each row of X corresponds to one observation, and each column corresponds to one variable.

For a numeric matrix:

The variables that make up the columns of X must have the same order as the predictor variables used to train ens.
If you trained ens using a table (for example, tbl), X can be a numeric matrix if tbl contains only numeric predictor variables. To treat numeric predictors in tbl as categorical during training, specify categorical predictors using the CategoricalPredictors name-value argument of fitcensemble. If tbl contains heterogeneous predictor variables (for example, numeric and categorical data types) and X is a numeric matrix, predict issues an error.

For a table:

predict does not support multicolumn variables or cell arrays other than cell arrays of character vectors.
If you trained ens using a table (for example, tbl), all predictor variables in X must have the same variable names and data types as those used to train ens (stored in ens.PredictorNames). However, the column order of X does not need to correspond to the column order of tbl. tbl and X can contain additional variables, such as response variables and observation weights, but predict ignores them.
If you trained ens using a numeric matrix, then the predictor names in ens.PredictorNames must be the same as the corresponding predictor variable names in X. To specify predictor names during training, use the PredictorNames name-value argument of fitcensemble. All predictor variables in X must be numeric vectors. X can contain additional variables, such as response variables and observation weights, but predict ignores them.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: predict(ens,X,Learners=[1 2 3 5],UseParallel=true) specifies to use the first, second, third, and fifth learners in the ensemble ens, and to perform computations in parallel.

`Learners` — Indices of weak learners
`[1:ens.NumTrained]` (default) | vector of positive integers

Indices of the weak learners in the ensemble to use with predict, specified as a vector of positive integers in the range [1:ens.NumTrained]. By default, the function uses all learners.

Example: Learners=[1 2 4]

Data Types: single | double

`UseObsForLearner` — Option to use observations for learners
`true(N,T)` (default) | logical matrix

Option to use observations for learners, specified as a logical matrix of size N-by-T, where:

N is the number of rows of X.
T is the number of weak learners in ens.

When UseObsForLearner(i,j) is true (default), learner j is used in predicting the class of row i of X.

Example: UseObsForLearner=logical([1 1; 0 1; 1 0])

Data Types: logical matrix

`UseParallel` — Flag to run in parallel
`false` or `0` (default) | `true` or `1`

Flag to run in parallel, specified as a numeric or logical 1 (true) or 0 (false). If you specify UseParallel=true, the predict function executes for-loop iterations by using parfor. The loop runs in parallel when you have Parallel Computing Toolbox™.

Example: UseParallel=true

Data Types: logical

Output Arguments

collapse all

`labels` — Predicted class labels
categorical array | character array | logical array | numeric array | cell array of character vectors

Predicted class labels, returned as a categorical, character, logical, or numeric array, or a cell array of character vectors. labels has the same data type as the labels used to train ens. (The software treats string arrays as cell arrays of character vectors.)

The predict function classifies an observation into the class yielding the highest score. For an observation with NaN scores, the function classifies the observation into the majority class, which makes up the largest proportion of the training labels.

`scores` — Class scores
numeric matrix

Class scores, returned as a numeric matrix with one row per observation and one column per class. For each observation and each class, the score represents the confidence that the observation originates from that class. A higher score indicates a higher confidence. For more information, see Score (ensemble).

More About

collapse all

Score (ensemble)

For ensembles, a classification score represents the confidence that an observation originates from a specific class. The higher the score, the higher the confidence.

Different ensemble algorithms have different definitions for their scores. Furthermore, the range of scores depends on ensemble type. For example:

Bag scores range from 0 to 1. You can interpret these scores as probabilities averaged over all the trees in the ensemble.
AdaBoostM1, GentleBoost, and LogitBoost scores range from –∞ to ∞. You can convert these scores to probabilities by setting the ScoreTransform property of ens to "doublelogit" before passing ens to predict:
```
ens.ScoreTransform = "doublelogit";
[labels,scores] = predict(ens,X);
```
Alternatively, you can specify ScoreTransform="doublelogit" in the call to fitcensemble when you create ens.

For more information on the different ensemble algorithms and how they compute scores, see Ensemble Algorithms.

Alternative Functionality

Simulink Block

To integrate the prediction of an ensemble into Simulink^®, you can use the ClassificationEnsemble Predict block in the Statistics and Machine Learning Toolbox™ library or a MATLAB^® Function block with the predict function. For examples, see Predict Class Labels Using ClassificationEnsemble Predict Block and Predict Class Labels Using MATLAB Function Block.

When deciding which approach to use, consider the following:

If you use the Statistics and Machine Learning Toolbox library block, you can use the Fixed-Point Tool (Fixed-Point Designer) to convert a floating-point model to fixed point.
Support for variable-size arrays must be enabled for a MATLAB Function block with the predict function.
If you use a MATLAB Function block, you can use MATLAB functions for preprocessing or post-processing before or after predictions in the same MATLAB Function block.

Extended Capabilities

Tall Arrays
Calculate with arrays that have more rows than fit in memory.

Usage notes and limitations:

You cannot use the UseParallel name-value argument with tall arrays.

For more information, see Tall Arrays.

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

Use saveLearnerForCoder, loadLearnerForCoder, and codegen (MATLAB Coder) to generate code for the predict function. Save a trained model by using saveLearnerForCoder. Define an entry-point function that loads the saved model by using loadLearnerForCoder and calls the predict function. Then use codegen to generate code for the entry-point function.
To generate single-precision C/C++ code for predict, specify the name-value argument "DataType","single" when you call the loadLearnerForCoder function.
You can also generate fixed-point C/C++ code for predict. Fixed-point code generation requires an additional step that defines the fixed-point data types of the variables required for prediction. Create a fixed-point data type structure by using the data type function generated by generateLearnerDataTypeFcn, and then use the structure as an input argument of loadLearnerForCoder in an entry-point function. Generating fixed-point C/C++ code requires MATLAB Coder™ and Fixed-Point Designer™.
Generating fixed-point code for predict includes propagating data types for individual learners and, therefore, can be time consuming.

This table contains notes about the arguments of predict. Arguments not included in this table are fully supported.

Argument	Notes and Limitations
`ens`	For the usage notes and limitations of the model object, see Code Generation of the `CompactClassificationEnsemble` object.
`X`	For general code generation, `X` must be a single-precision or double-precision matrix or a table containing numeric variables, categorical variables, or both. For fixed-point code generation, `X` must be a fixed-point matrix. The number of rows, or observations, in `X` can be a variable size, but the number of columns in `X` must be fixed. If you want to specify `X` as a table, then your model must be trained using a table, and your entry-point function for prediction must do the following: Accept data as arrays. Create a table from the data input arguments and specify the variable names in the table. Pass the table to `predict`. For an example of this table workflow, see Generate Code to Classify Data in Table. For more information on using tables in code generation, see Code Generation for Tables (MATLAB Coder) and Table Limitations for Code Generation (MATLAB Coder).
Name-value arguments	Names in name-value arguments must be compile-time constants. For example, to allow user-defined indices up to 5 weak learners in the generated code, include `{coder.Constant('Learners'),coder.typeof(0,[1,5],[0,1])}` in the `-args` value of `codegen` (MATLAB Coder).
`"Learners"`	For fixed-point code generation, the `"Learners"` value must have an integer data type.

For more information, see Introduction to Code Generation.

Automatic Parallel Support
Accelerate code by automatically running computation in parallel using Parallel Computing Toolbox™.

To run in parallel, set the UseParallel name-value argument to true in the call to this function.

For more general information about parallel computing, see Run MATLAB Functions with Automatic Parallel Support (Parallel Computing Toolbox).

You cannot use UseParallel with tall or GPU arrays or in code generation.

GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

Usage notes and limitations:

The predict function does not support ensembles trained using decision tree learners with surrogate splits.

For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Version History

Introduced in R2011a
