TreeBagger
Ensemble of bagged decision trees
Description
A TreeBagger
object is an ensemble of bagged decision trees for
either classification or regression. Individual decision trees tend to overfit.
Bagging, which stands for bootstrap aggregation, is an ensemble method that
reduces the effects of overfitting and improves generalization.
Creation
The TreeBagger
function grows every tree in the
TreeBagger
ensemble model using bootstrap samples of the input data.
Observations not included in a sample are considered "outofbag" for that tree. The function
selects a random subset of predictors for each decision split by using the random forest
algorithm [1].
Syntax
Description
Tip
By default, the TreeBagger
function grows classification decision
trees. To grow regression decision trees, specify the namevalue argument
Method
as "regression"
.
returns an ensemble object (Mdl
= TreeBagger(NumTrees
,Tbl
,ResponseVarName
)Mdl
) of NumTrees
bagged
classification trees, trained by the predictors in the table Tbl
and the
class labels in the variable Tbl.ResponseVarName
.
returns Mdl
= TreeBagger(NumTrees
,Tbl
,formula
)Mdl
trained by the predictors in the table
Tbl
. The input formula
is an explanatory model of
the response and a subset of predictor variables in Tbl
used to fit
Mdl
. Specify formula
using Wilkinson Notation.
returns Mdl
= TreeBagger(___,Name=Value
)Mdl
with additional options specified by one or more namevalue
arguments, using any of the previous input argument combinations. For example, you can specify
the algorithm used to find the best split on a categorical predictor by using the namevalue
argument PredictorSelection
.
Input Arguments
NumTrees
— Number of decision trees
positive integer
Number of decision trees in the bagged ensemble, specified as a positive integer.
Data Types: single
 double
Tbl
— Sample data
table
Sample data used to train the model, specified as a table. Each row of
Tbl
corresponds to one observation, and each column corresponds to one
predictor variable. Optionally, Tbl
can contain one additional column for
the response variable. Multicolumn variables and cell arrays other than cell arrays of
character vectors are not allowed.
If
Tbl
contains the response variable, and you want to use all remaining variables inTbl
as predictors, then specify the response variable by usingResponseVarName
.If
Tbl
contains the response variable, and you want to use only a subset of the remaining variables inTbl
as predictors, then specify a formula by usingformula
.If
Tbl
does not contain the response variable, then specify a response variable by usingY
. The length of the response variable and the number of rows inTbl
must be equal.
ResponseVarName
— Response variable name
name of variable in Tbl
Response variable name, specified as the name of a variable in
Tbl
.
You must specify ResponseVarName
as a character vector or string
scalar. For example, if the response variable Y
is stored as
Tbl.Y
, then specify it as "Y"
. Otherwise, the software
treats all columns of Tbl
, including Y
, as predictors
when training the model.
The response variable must be a categorical, character, or string array; a logical or
numeric vector; or a cell array of character vectors. If Y
is a character
array, then each element of the response variable must correspond to one row of the
array.
A good practice is to specify the order of the classes by using the
ClassNames
namevalue argument.
Data Types: char
 string
formula
— Explanatory model of response variable and subset of predictor variables
character vector  string scalar
Explanatory model of the response variable and a subset of the predictor variables,
specified as a character vector or string scalar in the form "Y~x1+x2+x3"
.
In this form, Y
represents the response variable, and
x1
, x2
, and x3
represent the
predictor variables.
To specify a subset of variables in Tbl
as predictors for training
the model, use a formula. If you specify a formula, then the software does not use any
variables in Tbl
that do not appear in
formula
.
The variable names in the formula must be both variable names in Tbl
(Tbl.Properties.VariableNames
) and valid MATLAB^{®} identifiers. You can verify the variable names in Tbl
by
using the isvarname
function. If the variable names
are not valid, then you can convert them by using the matlab.lang.makeValidName
function.
Data Types: char
 string
Y
— Class labels or response variable
categorical array  character array  string array  logical vector  numeric vector  cell array of character vectors
Class labels or response variable to which the ensemble of bagged decision trees is trained, specified as a categorical, character, or string array; a logical or numeric vector; or a cell array of character vectors.
If you specify
Method
as"classification"
, the following apply for the class labelsY
:Each element of
Y
defines the class membership of the corresponding row ofX
.If
Y
is a character array, then each row must correspond to one class label.The
TreeBagger
function converts the class labels to a cell array of character vectors.
If you specify
Method
as"regression"
, the response variableY
is an nby1 numeric vector, where n is the number of observations. Each entry inY
is the response for the corresponding row ofX
.
The length of Y
and the number of rows of X
must
be equal.
Data Types: categorical
 char
 string
 logical
 single
 double
 cell
X
— Predictor data
numeric matrix
Predictor data, specified as a numeric matrix.
Each row of X
corresponds to one observation (also known as an
instance or example), and each column corresponds to one variable (also known as a
feature).
The length of Y
and the number of rows of X
must
be equal.
Data Types: double
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Namevalue arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: TreeBagger(100,X,Y,Method="regression",Surrogate="on",OOBPredictorImportance="on")
creates a bagged ensemble of 100 regression trees, and specifies to use surrogate splits and to
store the outofbag information for predictor importance estimation.
ChunkSize
— Number of observations in each chunk of data
50000 (default)  positive integer
Number of observations in each chunk of data, specified as a positive integer. This
option applies only when you use TreeBagger
on tall arrays. For more
information, see Extended Capabilities.
Example: ChunkSize=10000
Data Types: single
 double
Cost
— Misclassification cost
square matrix  structure
Misclassification cost, specified as a square matrix or structure.
If you specify the square matrix
Cost
and the true class of an observation isi
, thenCost(i,j)
is the cost of classifying a point into classj
. That is, rows correspond to the true classes and columns correspond to the predicted classes. To specify the class order for the corresponding rows and columns ofCost
, use theClassNames
namevalue argument.If you specify the structure
S
, then it must have two fields:S.ClassNames
, which contains the class names as a variable of the same data type asY
S.ClassificationCosts
, which contains the cost matrix with rows and columns ordered as inS.ClassNames
The default value is Cost(i,j)=1
if i~=j
, and
Cost(i,j)=0
if i=j
.
For more information on the effect of a highly skewed Cost
, see
Algorithms.
Example: Cost=[0,1;2,0]
Data Types: single
 double
 struct
CategoricalPredictors
— Categorical predictors list
vector of positive integers  logical vector  character matrix  string array  cell array of character vectors  "all"
Categorical predictors list, specified as one of the values in this table.
Value  Description

Vector of positive integers
Each entry in the vector is an index value indicating that the corresponding predictor is
categorical. The index values are between 1 and If
Logical vector
A
Character matrix  Each row of the matrix is the name of a predictor variable. The names must match the entries in PredictorNames . Pad the names with extra blanks so each row of the character matrix has the same length.
String array or cell array of character vectors  Each element in the array is the name of a predictor variable. The names must match the entries in PredictorNames .
"all"  All predictors are categorical.
By default, if the
predictor data is in a table (Tbl
), TreeBagger
assumes that a variable is categorical if it is a logical vector, categorical vector, character
array, string array, or cell array of character vectors. If the predictor data is a matrix
(X
), TreeBagger
assumes that all predictors are
continuous. To identify any other predictors as categorical predictors, specify them by using
the CategoricalPredictors
namevalue argument.
For the identified categorical predictors, TreeBagger
creates
dummy variables using two different schemes, depending on whether a categorical variable is
unordered or ordered. For an unordered categorical variable,
TreeBagger
creates one dummy variable for each level of the
categorical variable. For an ordered categorical variable, TreeBagger
creates one less dummy variable than the number of categories. For details, see Automatic Creation of Dummy Variables.
Example: CategoricalPredictors="all"
Data Types: single
 double
 logical
 char
 string
 cell
Method
— Type of decision tree
"classification"
(default)  "regression"
Type of decision tree, specified as "classification"
or
"regression"
. For regression trees, Y
must be
numeric.
Example: Method="regression"
MinLeafSize
— Minimum number of leaf node observations
positive integer
Minimum number of leaf node observations, specified as a positive integer. Each leaf
has at least MinLeafSize
observations per tree leaf. By default,
MinLeafSize
is 1
for classification trees and
5
for regression trees.
Example: MinLeafSize=4
Data Types: single
 double
NumPredictorsToSample
— Number of predictor variables for each decision split
positive integer  "all"
Number of predictor variables (randomly selected) for each decision split, specified as
a positive integer or "all"
. By default,
NumPredictorsToSample
is the square root of the number of variables
for classification trees, and one third of the number of variables for regression trees. If
the default number is not an integer, the software rounds the number to the nearest integer
in the direction of positive infinity. If you set NumPredictorsToSample
to any value except "all"
, the software uses Breiman's random forest
algorithm [1].
Example: NumPredictorsToSample=5
Data Types: single
 double
 char
 string
NumPrint
— Number of grown trees after which software displays message
0 (default)  positive integer
Number of grown trees (training cycles) after which the software displays a message about the training progress in the command window, specified as a nonnegative integer. By default, the software displays no diagnostic messages.
Example: NumPrint=10
Data Types: single
 double
InBagFraction
— Fraction of input data to sample
1 (default)  positive scalar
Fraction of input data to sample with replacement from the input data for growing each new tree, specified as a positive scalar in the range (0,1].
Example: InBagFraction=0.5
Data Types: single
 double
OOBPrediction
— Indicator to store outofbag information
"off"
(default)  "on"

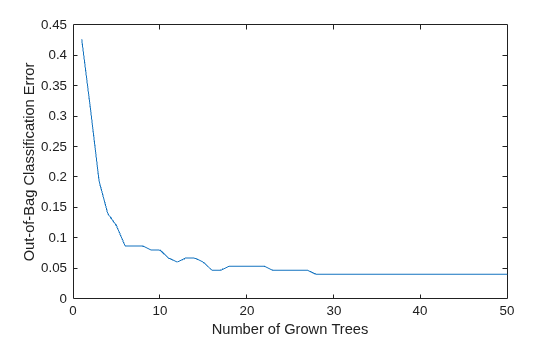

Indicator to store outofbag information in the ensemble, specified as
"on"
or "off"
. Specify
OOBPrediction
as "on"
to store information on which
observations are outofbag for each tree. TreeBagger
can use this
information to compute the predicted class probabilities for each tree in the
ensemble.
Example: OOBPrediction="off"
OOBPredictorImportance
— Indicator to store outofbag estimates of feature importance
"off"
(default)  "on"
Indicator to store outofbag estimates of feature importance in the ensemble,
specified as "on"
or "off"
. If you specify
OOBPredictorImportance
as "on"
, the
TreeBagger
function sets OOBPrediction
to
"on"

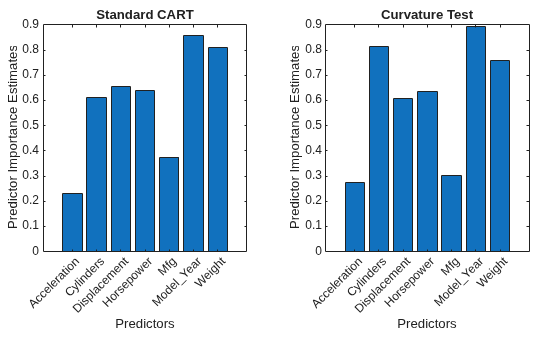

. If you want to analyze predictor importance, specify
PredictorSelection
as "curvature"
or
"interactioncurvature"
.
Example: OOBPredictorImportance="on"
Options
— Options for computing in parallel and setting random streams
structure
Options for computing in parallel and setting random streams, specified as a
structure. Create the Options
structure using statset
. This table lists the option fields and their
values.
Field Name  Value  Default

UseParallel  Set this value to true to run computations in
parallel.  false
UseSubstreams  Set this value to To compute
reproducibly, set  false
Streams  Specify this value as a RandStream object or
cell array of such objects. Use a single object except when the
UseParallel value is true
and the UseSubstreams value is
false . In that case, use a cell array that
has the same size as the parallel pool.  If you do not specify Streams , then
TreeBagger uses the default stream or
streams.
Note
You need Parallel Computing Toolbox™ to run computations in parallel.
Example: Options=statset(UseParallel=true,UseSubstreams=true,Streams=RandStream("mlfg6331_64"))
Data Types: struct
PredictorNames
— Predictor variable names
string array of unique names  cell array of unique character vectors
Predictor variable names, specified as a string array of unique names or cell array of
unique character vectors. The functionality of PredictorNames
depends
on how you supply the training data.
If you supply
X
andY
, then you can usePredictorNames
to assign names to the predictor variables inX
.The order of the names in
PredictorNames
must correspond to the column order ofX
. That is,PredictorNames{1}
is the name ofX(:,1)
,PredictorNames{2}
is the name ofX(:,2)
, and so on. Also,size(X,2)
andnumel(PredictorNames)
must be equal.By default,
PredictorNames
is{'x1','x2',...}
.
If you supply
Tbl
, then you can usePredictorNames
to choose which predictor variables to use in training. That is,TreeBagger
uses only the predictor variables inPredictorNames
and the response variable during training.PredictorNames
must be a subset ofTbl.Properties.VariableNames
and cannot include the name of the response variable.By default,
PredictorNames
contains the names of all predictor variables.A good practice is to specify the predictors for training using either
PredictorNames
orformula
, but not both.
Example: PredictorNames=["SepalLength","SepalWidth","PetalLength","PetalWidth"]
Data Types: string
 cell
SampleWithReplacement
— Indicator for sampling with replacement
"on"
(default)  "off"
Indicator for sampling with replacement, specified as "on"
or
"off"
. Specify SampleWithReplacement
as
"on"
to sample with replacement, or as "off"
to
sample without replacement. If you set SampleWithReplacement
to
"off"
, you must set the namevalue argument
InBagFraction
to a value less than 1.
Example: SampleWithReplacement="on"
Prior
— Prior probability for each class for twoclass learning
"empirical"
(default)  "uniform"
 numeric vector  structure array
Prior probability for each class for twoclass learning, specified as a value in this table.
Value  Description

"empirical"  The class prior probabilities are the class relative frequencies in
Y .
"uniform"  All class prior probabilities are equal to 1/K, where K is the number of classes.
numeric vector  Each element in the vector is a class prior probability. Order the elements
according to Mdl.ClassNames , or specify the order using the
ClassNames namevalue argument. The software normalizes the
elements to sum to 1 .
structure  A structure

If you specify a cost matrix, the Prior
property of the
TreeBagger
model stores the prior probabilities adjusted for the
misclassification cost. For more details, see Algorithms.
This argument is valid only for twoclass learning.
Example: Prior=struct(ClassNames=["setosa" "versicolor"
"virginica"],ClassProbs=1:3)
Data Types: char
 string
 single
 double
 struct
Note
In addition to its namevalue arguments, the TreeBagger
function
accepts the namevalue arguments of fitctree
and fitrtree
listed in Additional NameValue Arguments of TreeBagger Function.
Output Arguments
Mdl
— Ensemble of bagged decision trees
TreeBagger
object
Ensemble of bagged decision trees, returned as a TreeBagger
object.
Properties
Bagging Properties
ComputeOOBPrediction
— Indicator to compute outofbag predictions for training observations
false
or 0 (default)  true
or 1
This property is readonly.
Indicator to compute outofbag predictions for training observations, specified as a
numeric or logical 1 (true
) or 0 (false
). If this
property is true
:
The
TreeBagger
object has the propertiesOOBIndices
andOOBInstanceWeight
.You can use the object functions
oobError
,oobMargin
, andoobMeanMargin
.
ComputeOOBPredictorImportance
— Indicator to compute outofbag variable importance
false
or 0 (default)  true
or 1
This property is readonly.
Indicator to compute the outofbag variable importance, specified as a numeric or
logical 1 (true
) or 0 (false
). If this property is
true
:
The
TreeBagger
object has the propertiesOOBPermutedPredictorDeltaError
,OOBPermutedPredictorDeltaMeanMargin
, andOOBPermutedPredictorCountRaiseMargin
.The property
ComputeOOBPrediction
is alsotrue
.
InBagFraction
— Fraction of observations that are randomly selected
1 (default)  numeric scalar
This property is readonly.
Fraction of observations that are randomly selected with replacement (inbag
observations) for each bootstrap replica, specified as a numeric scalar. The size of each
replica is Nobs×InBagFraction
, where
Nobs is the number of observations in the training data.
Data Types: single
 double
OOBIndices
— Outofbag indices
logical array
This property is readonly.
Outofbag indices, specified as a logical array. This property is a
NobsbyNumTrees
array, where
Nobs is the number of observations in the training data, and
NumTrees
is the number of trees in the ensemble. If the
element is OOBIndices
(i,j)true
, the observation i is outofbag for
the tree j (that is, the TreeBagger
function did not
select the observation i for the training data used to grow the tree
j).
OOBInstanceWeight
— Number of outofbag trees for each observation
numeric vector
This property is readonly.
Number of outofbag trees for each observation, specified as a numeric vector. This
property is a Nobsby1 vector, where Nobs is the
number of observations in the training data. The
element
contains the number of trees used for computing the outofbag response for observation
i.OOBInstanceWeight
(i)
Data Types: single
 double
OOBPermutedPredictorCountRaiseMargin
— Predictor variable importance for raising margin
numeric vector
This property is readonly.
Predictor variable (feature) importance for raising the margin, specified as a numeric vector. This property is a 1byNvars vector, where Nvars is the number of variables in the training data. For each variable, the measure is the difference between the number of raised margins and the number of lowered margins if the values of that variable are permuted across the outofbag observations. This measure is computed for every tree, then averaged over the entire ensemble and divided by the standard deviation over the entire ensemble.
This property is empty ([]
) for regression trees.
Data Types: single
 double
OOBPermutedPredictorDeltaError
— Predictor variable importance for prediction error
numeric vector
This property is readonly.
Predictor variable (feature) importance for prediction error, specified as a numeric vector. This property is a 1byNvars vector, where Nvars is the number of variables (columns) in the training data. For each variable, the measure is the increase in prediction error if the values of that variable are permuted across the outofbag observations. This measure is computed for every tree, then averaged over the entire ensemble and divided by the standard deviation over the entire ensemble.
Data Types: single
 double
OOBPermutedPredictorDeltaMeanMargin
— Predictor variable importance for classification margin
numeric vector
This property is readonly.
Predictor variable (feature) importance for the classification margin, specified as numeric vector. This property is a 1byNvars vector, where Nvars is the number of variables (columns) in the training data. For each variable, the measure is the decrease in the classification margin if the values of that variable are permuted across the outofbag observations. This measure is computed for every tree, then averaged over the entire ensemble and divided by the standard deviation over the entire ensemble.
This property is empty ([]
) for regression trees.
Data Types: single
 double
Tree Properties
DeltaCriterionDecisionSplit
— Split criterion contributions for each predictor
numeric vector
This property is readonly.
Split criterion contributions for each predictor, specified as a numeric vector. This property is a 1byNvars vector, where Nvars is the number of changes in the split criterion. The software sums the changes in the split criterion over splits on each variable, then averages the sums across the entire ensemble of grown trees.
Data Types: single
 double
MergeLeaves
— Indicator to merge leaves
false
or 0 (default)  true
or 1
This property is readonly.
Indicator to merge leaves, specified as a numeric or logical 1 (true
)
or 0 (false
). This property is true
if the software
merges the decision tree leaves with the same parent, for splits that do not decrease the
total risk. Otherwise, this property is false
.
MinLeafSize
— Minimum number of leaf node observations
positive integer
This property is readonly.
Minimum number of leaf node observations, specified as a positive integer. Each leaf has
at least MinLeafSize
observations. By default,
MinLeafSize
is 1 for classification trees and 5 for regression trees.
For decision tree training, fitctree
and fitrtree
set the namevalue argument MinParentSize
to
2*MinLeafSize
.
Data Types: single
 double
NumTrees
— Number of decision trees
positive integer
This property is readonly.
Number of decision trees in the bagged ensemble, specified as a positive integer.
Data Types: single
 double
Prune
— Indicator to estimate optimal sequence of pruned subtrees
false
or 0 (default)  true
or 1
This property is readonly.
Indicator to estimate the optimal sequence of pruned subtrees, specified as a numeric
or logical 1 (true
) or 0 (false
). The
Prune
property is true
if the decision trees are
pruned, and false
if they are not. Pruning decision trees is not
recommended for ensembles.
SampleWithReplacement
— Indicator to sample decision tree with replacement
true
or 1 (default)  false
or 0
This property is readonly.
Indicator to sample each decision tree with replacement, specified as a numeric or
logical 1 (true
) or 0 (false
). This property is
true
if the TreeBagger
function samples each
decision tree with replacement, and false
otherwise.
SurrogateAssociation
— Predictive measures of variable association
numeric matrix
This property is readonly.
Predictive measures of variable association, specified as a numeric matrix. This property is an NvarsbyNvars matrix, where Nvars is the number of predictor variables. The property contains the predictive measures of variable association, averaged across the entire ensemble of grown trees.
If you grow the ensemble with the
Surrogate
namevalue argument set to"on"
, this matrix, for each tree, is filled with the predictive measures of association averaged over the surrogate splits.If you grow the ensemble with the
Surrogate
namevalue argument set to"off"
, theSurrogateAssociation
property is an identity matrix. By default,Surrogate
is set to"off"
.
Data Types: single
 double
TreeArguments
— Namevalue arguments specified for TreeBagger
function
cell array
This property is readonly.
Namevalue arguments specified for the TreeBagger
function,
specified as a cell array. The TreeBagger
function uses these namevalue
arguments when it grows new trees for the bagged ensemble.
Trees
— Decision trees in ensemble
cell array
This property is readonly.
Decision trees in the bagged ensemble, specified as a NumTrees
by1 cell
array. Each tree is a CompactClassificationTree
or
CompactRegressionTree
object.
Predictor Properties
NumPredictorSplit
— Number of decision splits for each predictor
numeric vector
This property is readonly.
Number of decision splits for each predictor, specified as a numeric vector. This property is
a 1byNvars vector, where
Nvars is the number of predictor
variables. Each element of
NumPredictorSplit
represents
the number of splits on the predictor summed over all
trees.
Data Types: single
 double
NumPredictorsToSample
— Number of predictor variables to select
positive integer
This property is readonly.
Number of predictor variables to select at random for each decision split, specified as a positive integer. By default, this property is the square root of the total number of variables for classification trees, and one third of the total number of variables for regression trees.
Data Types: single
 double
OutlierMeasure
— Outlier measure for each observation
numeric vector
This property is readonly.
Outlier measure for each observation, specified as a numeric vector. This property is a Nobsby1 vector, where Nobs is the number of observations in the training data.
Data Types: single
 double
PredictorNames
— Predictor names
cell array of character vectors
This property is readonly.
Predictor names, specified as a cell array of character vectors. The order of the elements in PredictorNames
corresponds to the order in which the predictor names appear in the training data X
.
X
— Predictors
numeric array
This property is readonly.
Predictors used to train the bagged ensemble, specified as a numeric array. This property is a NobsbyNvars array, where Nobs is the number of observations (rows) and Nvars is the number of variables (columns) in the training data.
Data Types: single
 double
Response Properties
DefaultYfit
— Default prediction value
""
 "MostPopular"
 numeric scalar
Default prediction value returned by predict
or
oobPredict
, specified as ""
,
"MostPopular"
, or a numeric scalar. This property controls the predicted
value returned by the predict
or oobPredict
object
function when no prediction is possible (for example, when oobPredict
predicts a response for an observation that is inbag for all trees in the ensemble).
For classification trees, you can set
DefaultYfit
to either""
or"MostPopular"
. If you specify"MostPopular"
(default for classification), the property value is the name of the most probable class in the training data. If you specify""
, the inbag observations are excluded from computation of the outofbag error and margin.For regression trees, you can set
DefaultYfit
to any numeric scalar. The default value for regression is the mean of the response for the training data. If you setDefaultYfit
toNaN
, the inbag observations are excluded from computation of the outofbag error and margin.
Example: Mdl.DefaultYfit="MostPopular"
Data Types: single
 double
 char
 string
Y
— Class labels or response data
cell array of character vectors  numeric vector
This property is readonly.
Class labels or response data, specified as a cell array of character vectors or a numeric vector.
If you set the
Method
namevalue argument to"classification"
, this property represents class labels. Each row ofY
represents the observed classification of the corresponding row ofX
.If you set the
Method
namevalue argument to"regression"
, this property represents response data and is a numeric vector.
Data Types: single
 double
 cell
Training Properties
Method
— Type of ensemble
"classification"
 "regression"
This property is readonly.
Type of ensemble, specified as "classification"
for classification
ensembles or "regression"
for regression ensembles.
Proximity
— Proximity between training data observations
numeric array
This property is readonly.
Proximity between training data observations, specified as a numeric array. This property is a NobsbyNobs array, where Nobs is the number of observations in the training data. The array contains measures of the proximity between observations. For any two observations, their proximity is defined as the fraction of trees for which these observations land on the same leaf. The array is symmetric, with ones on the diagonal and offdiagonal elements ranging from 0 to 1.
Data Types: single
 double
W
— Observation weights
vector of nonnegative values
This property is readonly.
Observation weights, specified as a vector of nonnegative values. This property has the
same number of rows as Y
. Each entry in W
specifies
the relative importance of the corresponding observation in Y
. The
TreeBagger
function uses the observation weights to grow each decision
tree in the ensemble.
Data Types: single
 double
Classification Properties
ClassNames
— Unique class names
cell array of character vectors
This property is readonly.
Unique class names used in the training model, specified as a cell array of character vectors.
This property is empty ([]
) for regression trees.
Cost
— Misclassification cost
numeric square matrix
This property is readonly.
Misclassification cost, specified as a numeric square matrix. The element
Cost(i,j)
is the cost of classifying a point into class
j
if its true class is i
. The rows correspond to the
true class and the columns correspond to the predicted class. The order of the rows and
columns of Cost
corresponds to the order of the classes in
ClassNames
.
This property is empty ([]
) for regression trees.
Data Types: single
 double
Prior
— Prior probabilities
numeric vector
This property is readonly.
Prior probabilities, specified as a numeric vector. The order of the elements in
Prior
corresponds to the order of the elements in
Mdl.ClassNames
.
If you specify a cost matrix by using the Cost
namevalue argument
of the TreeBagger
function, the Prior
property of the
TreeBagger
model object stores the prior probabilities (specified by the
Prior
namevalue argument) adjusted for the misclassification cost. For
more details, see Algorithms.
This property is empty ([]
) for regression trees.
Data Types: single
 double
Object Functions
Create CompactTreeBagger
compact  Compact ensemble of decision trees
Modify Ensemble
Interpret Ensemble
partialDependence  Compute partial dependence
plotPartialDependence  Create partial dependence plot (PDP) and individual conditional expectation (ICE) plots
Measure Performance
error  Error (misclassification probability or MSE)
meanMargin  Mean classification margin
margin  Classification margin
oobError  Outofbag error
oobMeanMargin  Outofbag mean margins
oobMargin  Outofbag margins
oobQuantileError  Outofbag quantile loss of bag of regression trees
quantileError  Quantile loss using bag of regression trees
Predict Responses
oobPredict  Ensemble predictions for outofbag observations
oobQuantilePredict  Quantile predictions for outofbag observations from bag of regression trees
predict  Predict responses using ensemble of bagged decision trees
quantilePredict  Predict response quantile using bag of regression trees
Examples
Train Ensemble of Bagged Classification Trees
Create an ensemble of bagged classification trees for Fisher's iris data set. Then, view the first grown tree, plot the outofbag classification error, and predict labels for outofbag observations.
Load the fisheriris
data set. Create X
as a numeric matrix that contains four petal measurements for 150 irises. Create Y
as a cell array of character vectors that contains the corresponding iris species.
load fisheriris
X = meas;
Y = species;
Set the random number generator to default
for reproducibility.
rng("default")
Train an ensemble of bagged classification trees using the entire data set. Specify 50
weak learners. Store the outofbag observations for each tree. By default, TreeBagger
grows deep trees.
Mdl = TreeBagger(50,X,Y,... Method="classification",... OOBPrediction="on")
Mdl = TreeBagger Ensemble with 50 bagged decision trees: Training X: [150x4] Training Y: [150x1] Method: classification NumPredictors: 4 NumPredictorsToSample: 2 MinLeafSize: 1 InBagFraction: 1 SampleWithReplacement: 1 ComputeOOBPrediction: 1 ComputeOOBPredictorImportance: 0 Proximity: [] ClassNames: 'setosa' 'versicolor' 'virginica'
Mdl
is a TreeBagger
ensemble for classification trees.
The Mdl.Trees
property is a 50by1 cell vector that contains the trained classification trees for the ensemble. Each tree is a CompactClassificationTree

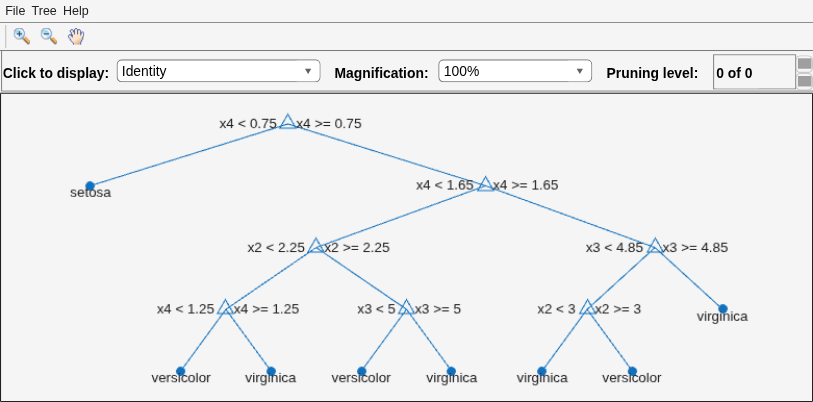

object. View the graphical display of the first trained classification tree.
view(Mdl.Trees{1},Mode="graph")
Plot the outofbag classification error over the number of grown classification trees.
plot(oobError(Mdl)) xlabel("Number of Grown Trees") ylabel("OutofBag Classification Error")
The outofbag error decreases as the number of grown trees increases.
Predict labels for outofbag observations. Display the results for a random set of 10 observations.
oobLabels = oobPredict(Mdl); ind = randsample(length(oobLabels),10); table(Y(ind),oobLabels(ind),... VariableNames=["TrueLabel" "PredictedLabel"])
ans=10×2 table
TrueLabel PredictedLabel
______________ ______________
{'setosa' } {'setosa' }
{'virginica' } {'virginica' }
{'setosa' } {'setosa' }
{'virginica' } {'virginica' }
{'setosa' } {'setosa' }
{'virginica' } {'virginica' }
{'setosa' } {'setosa' }
{'versicolor'} {'versicolor'}
{'versicolor'} {'virginica' }
{'virginica' } {'virginica' }
Train Ensemble of Bagged Regression Trees
Create an ensemble of bagged regression trees for the carsmall
data set. Then, predict conditional mean responses and conditional quartiles.
Load the carsmall
data set. Create X
as a numeric vector that contains the car engine displacement values. Create Y
as a numeric vector that contains the corresponding miles per gallon.
load carsmall
X = Displacement;
Y = MPG;
Set the random number generator to default
for reproducibility.
rng("default")
Train an ensemble of bagged regression trees using the entire data set. Specify 100 weak learners.
Mdl = TreeBagger(100,X,Y,... Method="regression")
Mdl = TreeBagger Ensemble with 100 bagged decision trees: Training X: [94x1] Training Y: [94x1] Method: regression NumPredictors: 1 NumPredictorsToSample: 1 MinLeafSize: 5 InBagFraction: 1 SampleWithReplacement: 1 ComputeOOBPrediction: 0 ComputeOOBPredictorImportance: 0 Proximity: []
Mdl
is a TreeBagger
ensemble for regression trees.
For 10 equally spaced engine displacements between the minimum and maximum insample displacement, predict conditional mean responses (YMean
) and conditional quartiles (YQuartiles
).
predX = linspace(min(X),max(X),10)';
YMean = predict(Mdl,predX);
YQuartiles = quantilePredict(Mdl,predX,...
Quantile=[0.25,0.5,0.75]);

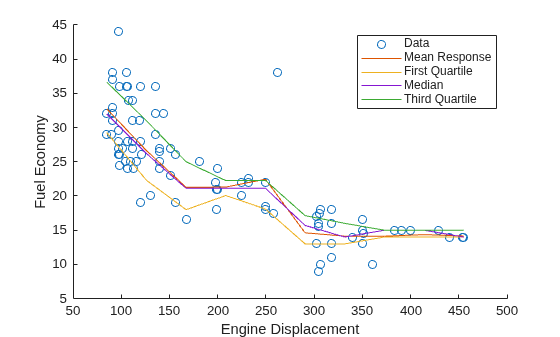

Plot the observations, estimated mean responses, and estimated quartiles.
hold on plot(X,Y,"o"); plot(predX,YMean) plot(predX,YQuartiles) hold off ylabel("Fuel Economy") xlabel("Engine Displacement") legend("Data","Mean Response",... "First Quartile","Median",..., "Third Quartile")
Unbiased Predictor Importance Estimates for Bagged Regression Trees
Create two ensembles of bagged regression trees, one using the standard CART algorithm for splitting predictors, and the other using the curvature test for splitting predictors. Then, compare the predictor importance estimates for the two ensembles.
Load the carsmall
data set and convert the variables Cylinders
, Mfg
, and Model_Year
to categorical variables. Then, display the number of categories represented in the categorical variables.
load carsmall
Cylinders = categorical(Cylinders);
Mfg = categorical(cellstr(Mfg));
Model_Year = categorical(Model_Year);
numel(categories(Cylinders))
ans = 3
numel(categories(Mfg))
ans = 28
numel(categories(Model_Year))
ans = 3
Create a table that contains eight car metrics.
Tbl = table(Acceleration,Cylinders,Displacement,...
Horsepower,Mfg,Model_Year,Weight,MPG);
Set the random number generator to default
for reproducibility.
rng("default")
Train an ensemble of 200 bagged regression trees using the entire data set. Because the data has missing values, specify to use surrogate splits. Store the outofbag information for predictor importance estimation.
By default, TreeBagger
uses the standard CART, an algorithm for splitting predictors. Because the variables Cylinders
and Model_Year
each contain only three categories, the standard CART prefers splitting a continuous predictor over these two variables.
MdlCART = TreeBagger(200,Tbl,"MPG",... Method="regression",Surrogate="on",... OOBPredictorImportance="on");
TreeBagger
stores predictor importance estimates in the property OOBPermutedPredictorDeltaError
.
impCART = MdlCART.OOBPermutedPredictorDeltaError;
Train a random forest of 200 regression trees using the entire data set. To grow unbiased trees, specify to use the curvature test for splitting predictors.
MdlUnbiased = TreeBagger(200,Tbl,"MPG",... Method="regression",Surrogate="on",... PredictorSelection="curvature",... OOBPredictorImportance="on"); impUnbiased = MdlUnbiased.OOBPermutedPredictorDeltaError;
Create bar graphs to compare the predictor importance estimates impCART
and impUnbiased
for the two ensembles.
tiledlayout(1,2,Padding="compact"); nexttile bar(impCART) title("Standard CART") ylabel("Predictor Importance Estimates") xlabel("Predictors") h = gca; h.XTickLabel = MdlCART.PredictorNames; h.XTickLabelRotation = 45; h.TickLabelInterpreter = "none"; nexttile bar(impUnbiased); title("Curvature Test") ylabel("Predictor Importance Estimates") xlabel("Predictors") h = gca; h.XTickLabel = MdlUnbiased.PredictorNames; h.XTickLabelRotation = 45; h.TickLabelInterpreter = "none";
For the CART model, the continuous predictor Weight
is the second most important predictor. For the unbiased model, the predictor importance of Weight
is smaller in value and ranking.
Train Ensemble of Bagged Classification Trees on Tall Array
Train an ensemble of bagged classification trees for observations in a tall array, and find the misclassification probability of each tree in the model for weighted observations. This example uses the data set airlinesmall.csv
, a large data set that contains a tabular file of airline flight data.
When you perform calculations on tall arrays, MATLAB® uses either a parallel pool (default if you have Parallel Computing Toolbox™) or the local MATLAB session. To run the example using the local MATLAB session when you have Parallel Computing Toolbox, change the global execution environment by using the mapreducer
function.
mapreducer(0)
Create a datastore that references the location of the folder containing the data set. Select a subset of the variables to work with, and treat "NA"
values as missing data so that the datastore
function replaces them with NaN
values. Create the tall table tt
to contain the data in the datastore.
ds = datastore("airlinesmall.csv"); ds.SelectedVariableNames = ["Month" "DayofMonth" "DayOfWeek",... "DepTime" "ArrDelay" "Distance" "DepDelay"]; ds.TreatAsMissing = "NA"; tt = tall(ds)
tt = M×7 tall table Month DayofMonth DayOfWeek DepTime ArrDelay Distance DepDelay _____ __________ _________ _______ ________ ________ ________ 10 21 3 642 8 308 12 10 26 1 1021 8 296 1 10 23 5 2055 21 480 20 10 23 5 1332 13 296 12 10 22 4 629 4 373 1 10 28 3 1446 59 308 63 10 8 4 928 3 447 2 10 10 6 859 11 954 1 : : : : : : : : : : : : : :
Determine the flights that are late by 10 minutes or more by defining a logical variable that is true for a late flight. This variable contains the class labels Y
. A preview of this variable includes the first few rows.
Y = tt.DepDelay > 10
Y = M×1 tall logical array 1 0 1 1 0 1 0 0 : :
Create a tall array X
for the predictor data.
X = tt{:,1:end1}
X = M×6 tall double matrix 10 21 3 642 8 308 10 26 1 1021 8 296 10 23 5 2055 21 480 10 23 5 1332 13 296 10 22 4 629 4 373 10 28 3 1446 59 308 10 8 4 928 3 447 10 10 6 859 11 954 : : : : : : : : : : : :
Create a tall array W
for the observation weights by arbitrarily assigning double weights to the observations in class 1.
W = Y+1;
Remove the rows in X
, Y
, and W
that contain missing data.
R = rmmissing([X Y W]); X = R(:,1:end2); Y = R(:,end1); W = R(:,end);
Train an ensemble of 20 bagged classification trees using the entire data set. Specify a weight vector and uniform prior probabilities. For reproducibility, set the seeds of the random number generators using rng
and tallrng
. The results can vary depending on the number of workers and the execution environment for the tall arrays. For details, see Control Where Your Code Runs.
rng("default") tallrng("default") tMdl = TreeBagger(20,X,Y,... Weights=W,Prior="uniform")
Evaluating tall expression using the Local MATLAB Session:  Pass 1 of 1: Completed in 0.44 sec Evaluation completed in 0.47 sec Evaluating tall expression using the Local MATLAB Session:  Pass 1 of 1: Completed in 1.5 sec Evaluation completed in 1.6 sec Evaluating tall expression using the Local MATLAB Session:  Pass 1 of 1: Completed in 3.8 sec Evaluation completed in 3.8 sec
tMdl = CompactTreeBagger Ensemble with 20 bagged decision trees: Method: classification NumPredictors: 6 ClassNames: '0' '1' Properties, Methods
tMdl
is a CompactTreeBagger
ensemble with 20 bagged decision trees. For tall data, the TreeBagger
function returns a CompactTreeBagger
object.
Calculate the misclassification probability of each tree in the model. Attribute a weight contained in the vector W
to each observation by using the Weights
namevalue argument.
terr = error(tMdl,X,Y,Weights=W)
Evaluating tall expression using the Local MATLAB Session:  Pass 1 of 1: Completed in 4.7 sec Evaluation completed in 4.7 sec
terr = 20×1
0.1420
0.1214
0.1115
0.1078
0.1037
0.1027
0.1005
0.0997
0.0981
0.0983
⋮
Find the average misclassification probability for the ensemble of decision trees.
avg_terr = mean(terr)
avg_terr = 0.1022
More About
Additional NameValue Arguments of TreeBagger
Function
In addition to its NameValue Arguments, the
TreeBagger
function accepts the following namevalue arguments of
fitctree
and fitrtree
.
Supported fitctree Arguments  Supported fitrtree Arguments

AlgorithmForCategorical  MaxNumSplits
ClassNames *  MergeLeaves
MaxNumCategories  PredictorSelection
MaxNumSplits  Prune
MergeLeaves  PruneCriterion
PredictorSelection  QuadraticErrorTolerance
Prune  SplitCriterion
PruneCriterion  Surrogate
SplitCriterion  Weights
Surrogate  N/A
Weights  N/A
*When you specify the ClassNames
namevalue argument as a logical
vector, use 0 and 1 values. Do not use false
and true
values. For example, you can specify ClassNames
as [1 0
1]
.
Tips
For a
TreeBagger
modelMdl
, theTrees
property contains a cell vector ofMdl.NumTrees
CompactClassificationTree
orCompactRegressionTree
objects. View the graphical display of thet
grown tree by entering:view(Mdl.Trees{t})
For regression problems,
TreeBagger
supports mean and quantile regression (that is, quantile regression forest [5]).To predict mean responses or estimate the mean squared error given data, pass a
TreeBagger
model object and the data topredict
orerror
, respectively. To perform similar operations for outofbag observations, useoobPredict
oroobError
.To estimate quantiles of the response distribution or the quantile error given data, pass a
TreeBagger
model object and the data toquantilePredict
orquantileError
, respectively. To perform similar operations for outofbag observations, useoobQuantilePredict
oroobQuantileError
.
Standard CART tends to select split predictors containing many distinct values, such as continuous variables, over those containing few distinct values, such as categorical variables [4]. Consider specifying the curvature or interaction test if either of the following is true:
The data has predictors with relatively fewer distinct values than other predictors; for example, the predictor data set is heterogeneous.
Your goal is to analyze predictor importance.
TreeBagger
stores predictor importance estimates in theOOBPermutedPredictorDeltaError
property.
For more information on predictor selection, see the namevalue argument
PredictorSelection
for classification trees or the namevalue argumentPredictorSelection
for regression trees.
Algorithms
If you specify the
Cost
,Prior
, andWeights
namevalue arguments, the output model object stores the specified values in theCost
,Prior
, andW
properties, respectively. TheCost
property stores the userspecified cost matrix (C) without modification. ThePrior
andW
properties store the prior probabilities and observation weights, respectively, after normalization. For model training, the software updates the prior probabilities and observation weights to incorporate the penalties described in the cost matrix. For details, see Misclassification Cost Matrix, Prior Probabilities, and Observation Weights.The
TreeBagger
function generates inbag samples by oversampling classes with large misclassification costs and undersampling classes with small misclassification costs. Consequently, outofbag samples have fewer observations from classes with large misclassification costs and more observations from classes with small misclassification costs. If you train a classification ensemble using a small data set and a highly skewed cost matrix, then the number of outofbag observations per class might be very low. Therefore, the estimated outofbag error might have a large variance and be difficult to interpret. The same phenomenon can occur for classes with large prior probabilities.For details on how the
TreeBagger
function selects split predictors, and for information on nodesplitting algorithms when the function grows decision trees, see Algorithms for classification trees and Algorithms for regression trees.
Alternative Functionality
Statistics and Machine Learning Toolbox™ offers three objects for bagging and random forest:
ClassificationBaggedEnsemble
object created by thefitcensemble
function for classificationRegressionBaggedEnsemble
object created by thefitrensemble
function for regressionTreeBagger
object created by theTreeBagger
function for classification and regression
For details about the differences between TreeBagger
and
bagged ensembles (ClassificationBaggedEnsemble
and
RegressionBaggedEnsemble
), see Comparison of TreeBagger and Bagged Ensembles.
References
[1] Breiman, Leo. "Random Forests." Machine Learning 45 (2001): 5–32. https://doi.org/10.1023/A:1010933404324.
[2] Breiman, Leo, Jerome Friedman, Charles J. Stone, and R. A. Olshen. Classification and Regression Trees. Boca Raton, FL: CRC Press, 1984.
[3] Loh, WeiYin. "Regression Trees with Unbiased Variable Selection and Interaction Detection." Statistica Sinica 12, no. 2 (2002): 361–386. https://www.jstor.org/stable/24306967.
[4] Loh, WeiYin, and YuShan Shih. "Split Selection for Classification Trees." Statistica Sinica 7, no. 4 (1997): 815–840. https://www.jstor.org/stable/24306157.
[5] Meinshausen, Nicolai. "Quantile Regression Forests." Journal of Machine Learning Research 7, no. 35 (2006): 983–999. https://jmlr.org/papers/v7/meinshausen06a.html.
[6] Genuer, Robin, JeanMichel Poggi, Christine TuleauMalot, and Nathalie VillaVialanei. "Random Forests for Big Data." Big Data Research 9 (2017): 28–46. https://doi.org/10.1016/j.bdr.2017.07.003.
Extended Capabilities
Tall Arrays
Calculate with arrays that have more rows than fit in memory.
This function supports tall arrays with the following limitations.
The
TreeBagger
function supports these syntaxes for tallX
,Y
, andTbl
:B = TreeBagger(NumTrees,Tbl,Y)
B = TreeBagger(NumTrees,X,Y)
B = TreeBagger(___,Name=Value)
For tall arrays, the
TreeBagger
function supports classification but not regression.The
TreeBagger
function supports these namevalue arguments:NumPredictorsToSample
— The default value is the square root of the number of variables for classification.MinLeafSize
— The default value is1
if the number of observations is less than 50,000. If the number of observations is 50,000 or greater, then the default value ismax(1,min(5,floor(0.01*NobsChunk)))
, whereNobsChunk
is the number of observations in a chunk.ChunkSize
(only for tall arrays) — The default value is50000
.
In addition, the
TreeBagger
function supports these namevalue arguments offitctree
:AlgorithmForCategorical
CategoricalPredictors
Cost
— The columns of the cost matrixC
cannot containInf
orNaN
values.MaxNumCategories
MaxNumSplits
MergeLeaves
PredictorNames
PredictorSelection
Prior
Prune
PruneCriterion
SplitCriterion
Surrogate
Weights
For tall data, the
TreeBagger
function returns aCompactTreeBagger
object that contains most of the same properties as a fullTreeBagger
object. The main difference is that the compact object is more memory efficient. The compact object does not contain properties that include the data, or that include an array of the same size as the data.The number of trees contained in the returned
CompactTreeBagger
object can differ from the number of trees specified as input to theTreeBagger
function.TreeBagger
determines the number of trees to return based on factors that include the size of the input data set and the number of data chunks available to grow trees.Supported
CompactTreeBagger
object functions are:combine
error
margin
meanMargin
predict
setDefaultYfit
The
error
,margin
,meanMargin
, andpredict
object functions do not support the namevalue argumentsTrees
,TreeWeights
, orUseInstanceForTree
. ThemeanMargin
function also does not support theWeights
namevalue argument.The
TreeBagger
function creates a random forest by generating trees on disjoint chunks of the data. When more data is available than is required to create the random forest, the function subsamples the data. For a similar example, see Random Forests for Big Data [6].Depending on how the data is stored, some chunks of data might contain observations from only a few classes out of all the classes. In this case, the
TreeBagger
function might produce inferior results compared to the case where each chunk of data contains observations from most of the classes.During training of the
TreeBagger
algorithm, the speed, accuracy, and memory usage depend on a number of factors. These factors include the values forNumTrees
and the namevalue argumentsChunkSize
,MinLeafSize
, andMaxNumSplits
.For an nbyp tall array
X
,TreeBagger
implements sampling during training. This sampling depends on these variables:Number of trees
NumTrees
Chunk size
ChunkSize
Number of observations n
Number of chunks r (approximately equal to
n/ChunkSize
)
Because the value of n is fixed for a given
X
, your settings forNumTrees
andChunkSize
determine howTreeBagger
samplesX
.If r >
NumTrees
, thenTreeBagger
samplesChunkSize * NumTrees
observations fromX
, and trains one tree per chunk (with each chunk containingChunkSize
number of observations). This scenario is the most common when you work with tall arrays.If r ≤
NumTrees
, thenTreeBagger
trains approximatelyNumTrees/r
trees in each chunk, using bootstrapping within the chunk.If n ≤
ChunkSize
, thenTreeBagger
uses bootstrapping to generate samples (each of size n) on which to train individual trees.
When you specify a value for
NumTrees
, consider the following:If you run your code on Apache^{®} Spark™, and your data set is distributed with Hadoop^{®} Distributed File System (HDFS™), start by specifying a value for
NumTrees
that is at least twice the number of partitions in HDFS for your data set. This setting prevents excessive data communication among Apache Spark executors and can improve performance of theTreeBagger
algorithm.TreeBagger
copies fitted trees into the client memory in the resultingCompactTreeBagger
model. Therefore, the amount of memory available to the client creates an upper bound on the value you can set forNumTrees
. You can tune the values ofMinLeafSize
andMaxNumSplits
for more efficient speed and memory usage at the expense of some predictive accuracy. After tuning, if the value ofNumTrees
is less than twice the number of partitions in HDFS for your data set, then consider repartitioning your data in HDFS to have larger partitions.
After you specify a value for
NumTrees
, setChunkSize
to ensure thatTreeBagger
uses most of the data to grow trees. Ideally,ChunkSize * NumTrees
should approximate n, the number of rows in your data. Note that the memory available in the workers for training individual trees can also determine an upper bound forChunkSize
.You can adjust the Apache Spark memory properties to avoid outofmemory errors and support your workflow. See
parallel.cluster.Hadoop
(Parallel Computing Toolbox) for more information.
For more information, see Tall Arrays for OutofMemory Data.
Automatic Parallel Support
Accelerate code by automatically running computation in parallel using Parallel Computing Toolbox™.
To run in parallel, specify the Options
namevalue argument in the call to
this function and set the UseParallel
field of the
options structure to true
using
statset
:
Options=statset(UseParallel=true)
For more information about parallel computing, see Run MATLAB Functions with Automatic Parallel Support (Parallel Computing Toolbox).
Version History
Introduced in R2009aR2022a: Cost
property stores the userspecified cost matrix
Starting in R2022a, the Cost
property stores the userspecified cost
matrix. The software stores normalized prior probabilities (Prior
) and
observation weights (W
) that do not reflect the penalties described in the
cost matrix.
Note that model training has not changed and, therefore, the decision boundaries between classes have not changed.
For training, the fitting function updates the specified prior probabilities by
incorporating the penalties described in the specified cost matrix, and then normalizes the
prior probabilities and observation weights. This behavior has not changed. In previous
releases, the software stored the default cost matrix in the Cost
property
and stored the prior probabilities and observation weights used for training in the
Prior
and W
properties, respectively. Starting in
R2022a, the software stores the userspecified cost matrix without modification, and stores
normalized prior probabilities and observation weights that do not reflect the cost penalties.
For more details, see Misclassification Cost Matrix, Prior Probabilities, and Observation Weights.
The oobError
and oobMeanMargin
functions use the
observation weights stored in the W
property. Therefore, if you specify a
nondefault cost matrix when you train a classification model, the object functions return a
different value compared to previous releases.
If you want the software to handle the cost matrix, prior
probabilities, and observation weights in the same way as in previous releases, adjust the prior
probabilities and observation weights for the nondefault cost matrix, as described in Adjust Prior Probabilities and Observation Weights for Misclassification Cost Matrix. Then, when you train a
classification model, specify the adjusted prior probabilities and observation weights by using
the Prior
and Weights
namevalue arguments, respectively,
and use the default cost matrix.
See Also
Objects
Functions
MATLAB 命令
您点击的链接对应于以下 MATLAB 命令：
请在 MATLAB 命令行窗口中直接输入以执行命令。Web 浏览器不支持 MATLAB 命令。
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
 América Latina (Español)
 Canada (English)
 United States (English)
Europe
 Belgium (English)
 Denmark (English)
 Deutschland (Deutsch)
 España (Español)
 Finland (English)
 France (Français)
 Ireland (English)
 Italia (Italiano)
 Luxembourg (English)
 Netherlands (English)
 Norway (English)
 Österreich (Deutsch)
 Portugal (English)
 Sweden (English)
 Switzerland
 United Kingdom (English)
