monovslam

Visual simultaneous localization and mapping (vSLAM) with monocular camera

Since R2023b

Description

Use the monovslam object to perform visual simultaneous localization and mapping (vSLAM) with a monocular camera. The object extracts Oriented FAST and Rotated BRIEF (ORB) features from incrementally read images, and then tracks those features to estimate camera poses, identify key frames, and reconstruct a 3-D environment. The vSLAM algorithm also searches for loop closures using the bag-of-features algorithm, and then optimizes the camera poses using pose graph optimization. To learn more about visual SLAM, see Implement Visual SLAM in MATLAB.

Note

To use the monovslam object, you must have a Navigation Toolbox™ license.

Creation

Syntax

vslam = monovslam(intrinsics)

vslam = monovslam(intrinsics,imuParameters)

vslam = monovslam(intrinsics,Name=Value)

Description

vslam = monovslam(intrinsics) creates a monocular visual SLAM object, vslam, by using the camera intrinsic parameters.

The monovslam object does not account for lens distortion. You can use the specified undistortImage function to undistort images before adding them to the object.

The object represents 3-D map points and camera poses in world coordinates. The object assumes the camera pose of the first key frame is an identity rigidtform3d transform.

Note

The monovslam object runs on multiple threads internally, which can delay the processing of an image frame added by using the addFrame function. Additionally, the object running on multiple threads means the current frame the object is processing can be different than the recently added frame.

example

vslam = monovslam(intrinsics,imuParameters) creates a monocular visual SLAM object, vslam, by fusing the camera input intrinsics with inertial measurement unit (IMU) readings. Use of this syntax requires Navigation Toolbox.

vslam = monovslam(intrinsics,Name=Value) sets properties using one or more name-value arguments. For example, MaxNumFeatures=850 sets the maximum number of ORB feature points to extract from each image to 850.

Input Arguments

expand all

`intrinsics` — Camera intrinsic parameters
`cameraIntrinsics` object

Camera intrinsic parameters, specified as a cameraIntrinsics object.

`imuParameters` — IMU parameters
`factorIMUParameters` object

IMU parameters, specified as a factorIMUParameters (Navigation Toolbox) object. The object includes information about the IMU's noise, bias and sample rate. Use of this object requires Navigation Toolbox.

Properties

expand all

Feature Extraction

`ScaleFactor` — Scale factor for image decomposition
`1.2` (default) | scalar greater than 1

This property is read-only.

Scale factor for image decomposition, stored as a scalar greater than 1. The scale factor is also referred to as the pyramid decimation ratio. Increasing the value of ScaleFactor reduces the number of pyramid levels, but reduce computation time. Decreasing this value (down to just over 1), increases the number of pyramid levels, which can improve tracking performance, at the cost of computation speed. The scale value at each level of decomposition is ScaleFactor^(level-1), where level is any value in the range [0, Numlevels-1]. Given the input image of size M-by-N, the image size at each level of composition is M_level-by-N_level, where:

$\begin{array}{l} M_{l e v e l} = \frac{M}{S c a l e F a c t o r^{(l e v e l - 1)}} \\ N_{l e v e l} = \frac{N}{S c a l e F a c t o r^{(l e v e l - 1)}} \end{array}$

`NumLevels` — Number of decomposition levels
`8` (default) | scalar greater than or equal to `1`

This property is read-only.

Number of decomposition levels, specified as a scalar greater than or equal to 1. Increase this value to extract keypoints from the image at more levels of decomposition. Along with the ScaleFactor value, NumLevels controls the number of pyramid levels on which the object evaluates feature points.

The image size at each decomposition level limits the number of levels at which you can extract keypoints. The image size at a level of decomposition must be at least 63-by-63 for keypoint detection. The maximum level of decomposition is calculated as

$l e v e l_{\max} = floor (\frac{\log (\min (M, N)) - \log (63)}{\log (ScaleFactor)}) + 1$

If either the default value or the specified value of NumLevels is greater than level_max, the object modifies NumLevels to level_max and returns a warning.

`MaxNumPoints` — Maximum number of ORB feature points uniformly extracted from each image
`1000` | positive integer

This property is read-only.

Maximum number of ORB feature points uniformly extracted from each image, specified as a positive integer. The typical value is in the range of [800, 2000], depending on the resolution of the image. When the number of extracted features is less than the value of MaxNumPoints, then the object uses all feature points.

Tracking

`TrackFeatureRange` — Range for the number of feature points to identify key frame
`[30,100]` | 2-element vector

This property is read-only.

Key frame feature point range, stored as a two-element vector of the form [lowerLimit,upperLimit]. This property specifies the minimum and maximum numbers of tracked features points a frame must contain for the object to identify it as a key frame. The TrackFeatureRange and the SkipMaxFrames properties enable you to control the frequency at which frames in the tracking process adds key frames.

The success of tracking depends on the number of tracked points in the current frame, with one of these results:

Tracking is lost — The number of tracked feature points in the current frame is less than the lowerLimit set by the TrackFeatureRange argument. This indicates that the image does not contain enough features, or that the camera is moving too fast. To improve the tracking, you can increase the upperLimit value of the TrackFeatureRange property and decrease the SkipMaxFrames property to add key frames more frequently.
Tracking is successful — The object identifies the current frame as a key frame. The number of tracked feature points in the current frame is in the range set by TrackFeatureRange.
Tracking adds key frames too frequently — The number of tracked feature points in the current frame is greater than the upperLimit set by the TrackFeatureRange property. This indicates that the camera is moving very slowly, which produces an unnecessary number of key frames. To improve the tracking, you can reduce the frequency of adding key frames by increasing the value of the SkipMaxFrames property.

For more details, see the addFrame object function.

`SkipMaxFrames` — Maximum number of skipped frames
`20` | positive integer

This property is read-only.

Maximum number of skipped frames, stored as a positive integer. When the number of tracked features is consistently greater than the upperLimit set by the TrackFeatureRange property, use the SkipMaxFrames property to control the frequency of adding new key frames. The object identifies the current frame as a key frame when the number of skipped frames since the previous key frame added equals the value of SkipMaxFrames.

`LoopClosureThreshold` — Minimum number of matched feature points between loop closure key frames
`60` | positive integer

This property is read-only.

Minimum number of matched feature points between loop closure key frames, stored as a positive integer.

`CustomBagOfFeatures` — Custom bag of features for loop detection
`[]` (default) | `bagOfFeaturesDBoW` object

Custom bag of features for loop detection, specified as a bagOfFeaturesDBoW object. The bagOfFeaturesDBoW enables you to create a custom bag of words (BoW) from feature descriptors, alongside options to utilize a built-in vocabulary or load a custom one from a specified file.

`Verbose` — Progress information display
`[]` (default) | `1` | `2` | `3`

Progress information display, specified as [], 1, 2, or 3. Paths to the location of log files, when they are created, is displayed on the command line.

Verbose value	Display description	Display location
`[]` or `false`	Display is turned off
`1` or `true`	Stages of vSLAM execution	Command window
`2`	Stages of vSLAM execution, with details on how the frame is processed, such as the artifacts used to initialize the map.	Log file in a temporary folder
`3`	Stages of vSLAM, artifacts used to initialize the map, poses and map points before and after bundle adjustment, and loop closure optimization data.	Log file in a temporary folder

IMU Fusion

`CameraToIMUTransform` — IMU sensor transform
`rigidtform3d` object

IMU sensor transform, specified as a rigidtform3d object. The object describes the rotation and translation of the IMU sensor in the camera's 3-D coordinate system.

`NumPosesThreshold` — Number of estimated camera poses to trigger camera-IMU alignment
`30` (default) | integer

Number of estimated camera poses to trigger camera-IMU alignment, specified as an integer. The process of aligning camera and IMU data is initiated after a specific number of camera poses have been estimated. This alignment serves two primary purposes: first, to estimate a scale factor that translates the up-to-scale results from a monocular camera into actual world units (meters), and second, to synchronize the IMU and camera frames, effectively eliminating the influence of gravity on accelerometer data. The timing for this alignment, determined by a threshold for the number of camera poses, is key to its success. A threshold set too low may not provide enough data for accurate calibration, while one set too high risks incorporating noise from measurement drift into the calibration. For a more in-depth understanding of this calibration technique, see the estimateGravityRotationAndPoseScale (Navigation Toolbox) function.

`AlignmentFraction` — Subset of pose estimates
`0.8` (default) | scalar in the range (0,1]

Subset of pose estimates, specified as a scalar in the range of (0,1]. This value specifies a fraction of the number of recent pose estimates, calculated as round(NumPosesThreshold*AlignmentFraction), for use in the camera-IMU alignment process. It effectively filters out initial, potentially noisy pose estimates, ensuring only the most relevant data contributes to the alignment for improved accuracy.

Object Functions

`addFrame`	Add image frame to visual SLAM object
`hasNewKeyFrame`	Check if new key frame added in visual SLAM object
`checkStatus`	Check status of visual SLAM object
`isDone`	End-of-processing status for visual SLAM object
`mapPoints`	Build 3-D map of world points
`poses`	Absolute camera poses of key frames
`plot`	Plot 3-D map points and estimated camera trajectory in visual SLAM
`reset`	Reset visual SLAM object

Examples

collapse all

Monocular Visual SLAM Using TUM RGB-D Data Set

This example uses:

Open Live Script

Perform monocular visual simultaneous localization and mapping (vSLAM) using the data from the TUM RGB-D Benchmark. You can download the data to a temporary directory using a web browser or by running this code:

baseDownloadURL = "https://cvg.cit.tum.de/rgbd/dataset/freiburg3/rgbd_dataset_freiburg3_long_office_household.tgz";
dataFolder = fullfile(tempdir,"tum_rgbd_dataset",filesep);
options = weboptions(Timeout=Inf);
tgzFileName = dataFolder+"fr3_office.tgz";
folderExists = exist(dataFolder,"dir");

% Create a folder in a temporary directory to save the downloaded file
if ~folderExists
    mkdir(dataFolder)
    disp("Downloading fr3_office.tgz (1.38 GB). This download can take a few minutes.")
    websave(tgzFileName,baseDownloadURL,options);

    % Extract contents of the downloaded file
    disp("Extracting fr3_office.tgz (1.38 GB) ...")
    untar(tgzFileName,dataFolder);
end

Create an imageDatastore object to store all the RGB images.

imageFolder = dataFolder+"rgbd_dataset_freiburg3_long_office_household/rgb/";
imds = imageDatastore(imageFolder);

Specify your camera intrinsic parameters, and use them to create a monocular visual SLAM object.

intrinsics = cameraIntrinsics([535.4 539.2],[320.1 247.6],[480 640]);
vslam = monovslam(intrinsics,TrackFeatureRange=[30,120]);

Process each image frame, and visualize the camera poses and 3-D map points. Note that the monovslam object runs several algorithm parts on separate threads, which can introduce a latency in processing of an image frame added by using the addFrame function.

for i = 1:numel(imds.Files)
    addFrame(vslam,readimage(imds,i))

    if hasNewKeyFrame(vslam)
        % Display 3-D map points and camera trajectory
        plot(vslam);
    end

    % Get current status of system
    status = checkStatus(vslam);
end

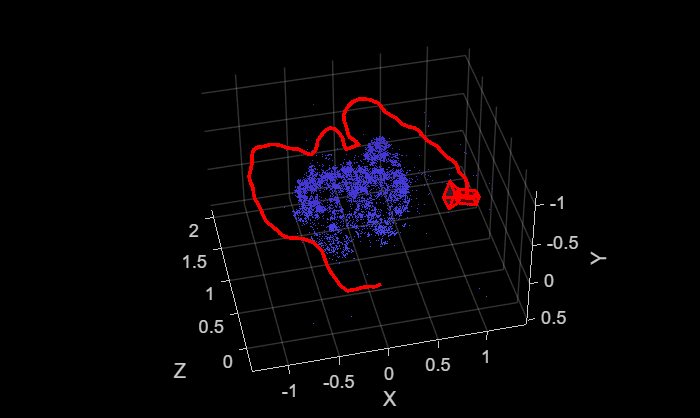

Figure contains an axes object. The axes object with xlabel X, ylabel Y contains 12 objects of type line, text, patch, scatter. This object represents Camera trajectory.

Plot intermediate results and wait until all images are processed.

while ~isDone(vslam)
    if hasNewKeyFrame(vslam)
        plot(vslam);
    end
end

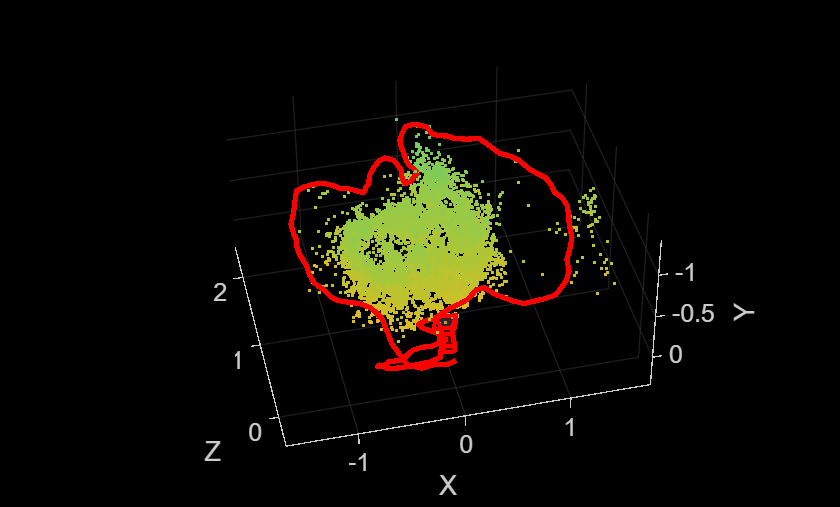

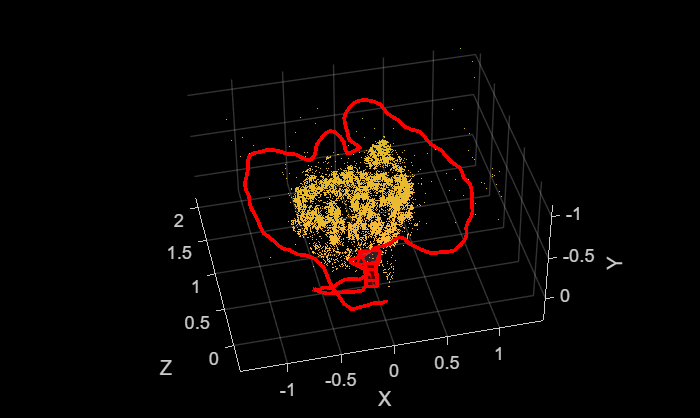

Figure contains an axes object. The axes object with xlabel X, ylabel Y contains 12 objects of type line, text, patch, scatter. This object represents Camera trajectory.

After all the images are processed, you can collect the final 3-D map points and camera poses for further analysis.

xyzPoints = mapPoints(vslam);
[camPoses,addedFramesIdx] = poses(vslam);

% Reset the system
reset(vslam)

Compare the estimated camera trajectory with the ground truth to evaluate the accuracy.

% Load ground truth
gTruthData = load("orbslamGroundTruth.mat");
gTruth     = gTruthData.gTruth;

% Evaluate tracking accuracy
mtrics = compareTrajectories(camPoses, gTruth(addedFramesIdx), AlignmentType="similarity");
disp(['Absolute RMSE for key frame location (m): ', num2str(mtrics.AbsoluteRMSE(2))]);

Absolute RMSE for key frame location (m): 0.093645

% Plot the absolute translation error at each key frame
figure
ax = plot(mtrics, "absolute-translation");
view(ax, [2.70 -49.20]);

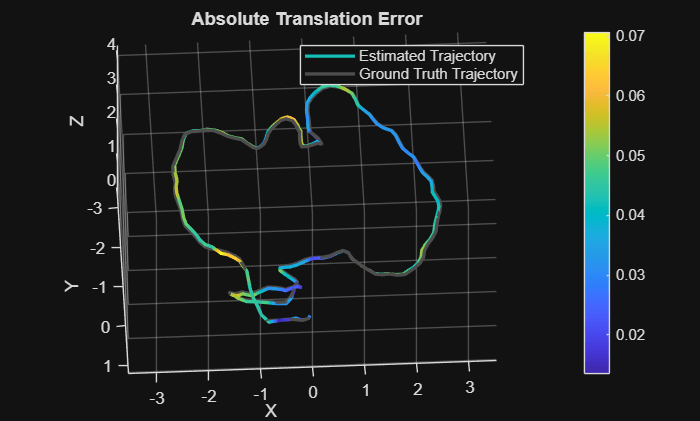

Figure contains an axes object. The axes object with title Absolute Translation Error, xlabel X, ylabel Y contains 2 objects of type patch, line. These objects represent Estimated Trajectory, Ground Truth Trajectory.

Monocular Visual-Inertial SLAM Using the BlackBird Data Set

This example uses:

Open Live Script

Perform monocular visual-inertial SLAM using the data from the the Blackbird data set (NYC Subway Winter). Download the MAT file which contains the images, camera intrinsics and IMU measurements.

uavDataTarFile =  matlab.internal.examples.downloadSupportFile('shared_nav_vision/data','BlackbirdVIOData.tar');

% Extract the file.
outputFolder = fileparts(uavDataTarFile);
if (~exist(fullfile(outputFolder,"BlackbirdVIOData"),"dir"))
    untar(uavDataTarFile,outputFolder);
end

uavData = load(fullfile(outputFolder,"BlackbirdVIOData","data.mat"));

images     = uavData.images;
timeStamps = uavData.timeStamps;

Set up the IMU noise parameters, camera intinsics and the camera-IMU extrinsics transform.

imuParams = factorIMUParameters(SampleRate=100,GyroscopeNoise=0.1, ...
            GyroscopeBiasNoise=3e-3,AccelerometerNoise=0.3, ...
            AccelerometerBiasNoise=1e-3,ReferenceFrame="ENU");
intrinsics = uavData.intrinsics;
camera2IMU = rigidtform3d(tform(uavData.camToIMUTransform));

Set up the monocular visual-inertial SLAM object.

vslam = monovslam(intrinsics,imuParams,MaxNumPoints=2000,SkipMaxFrames=2,TrackFeatureRange=[20,100], ...
        CameraToIMUTransform=camera2IMU,NumPosesThreshold=40,AlignmentFraction=0.9, ...
        CustomBagOfFeatures=bagOfFeaturesDBoW('BlackBirdBoW.bin.gz'),LoopClosureThreshold=100);

Process all the images frames and IMU measurements available, and visualize the camera poses and 3-D map points. The sequence does not contain any movement before the 150th frame.

startFrameIdx = 150;

for i = startFrameIdx:length(images)

    if(i>startFrameIdx)
        imuMesurements = helperExtractIMUMeasurements(uavData, i-1, i);
    else
        imuMesurements.gyro=[];
        imuMesurements.accel=[];
    end

    addFrame(vslam, images{i}, imuMesurements.gyro, imuMesurements.accel);

    if hasNewKeyFrame(vslam)
        plot(vslam);
    end
end

Note that the monovslam object runs several algorithm parts on separate threads, which can introduce a latency in processing of an image frame added by using the addFrame function.

% Plot intermediate results and wait until all images are processed
while ~isDone(vslam)
    if hasNewKeyFrame(vslam)
        plot(vslam);
    end
end

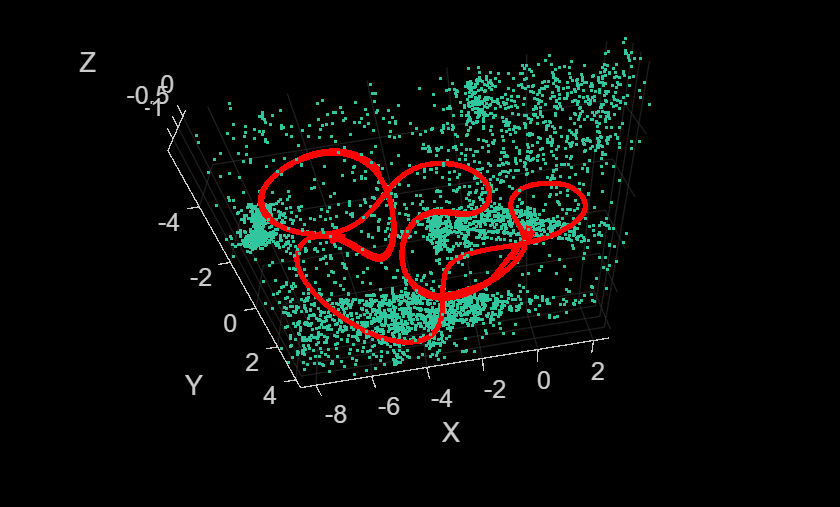

Figure contains an axes object. The axes object with xlabel X, ylabel Y contains 12 objects of type line, text, patch, scatter. This object represents Camera trajectory.

The helper function below is used to extract the IMU measurements, based on the camera timestamps.

function imuMesurements = helperExtractIMUMeasurements(data, startFrameIdx, currFrameIdx)

    timeStamps = data.timeStamps;

    startTimeStamp = timeStamps.imageTimeStamps(startFrameIdx);
    currTimeStamp  = timeStamps.imageTimeStamps(currFrameIdx);

    [~,startIMUIdx] = min(abs(timeStamps.imuTimeStamps - startTimeStamp));
    [~,currIMUIdx]  = min(abs(timeStamps.imuTimeStamps - currTimeStamp));

    imuMesurements.accel = data.accelReadings(startIMUIdx:(currIMUIdx-1),:);
    imuMesurements.gyro  = data.gyroReadings(startIMUIdx:(currIMUIdx-1),:);

end

References

[1] Mur-Artal, Raul, J. M. M. Montiel, and Juan D. Tardos. “ORB-SLAM: A Versatile and Accurate Monocular SLAM System.” IEEE Transactions on Robotics 31, no. 5 (October 2015): 1147–63. https://doi.org/10.1109/TRO.2015.2463671.

[2] Galvez-López, D., and J. D. Tardos. “Bags of Binary Words for Fast Place Recognition in Image Sequences.” IEEE Transactions on Robotics, vol. 28, no. 5, Oct. 2012, pp. 1188–97. DOI.org (Crossref), https://doi.org/10.1109/TRO.2012.2197158.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

To compile the generated code for non-host target, these dependencies must be installed:

OpenCV 4.7.0
g2o Library — Download the g2o library.
eigen3 Library

Version History

Introduced in R2023b

expand all

R2024b: Fusion support for IMU sensors

Use the imuParameters input argument as a factorIMUParameters object to specify information about IMU parameters. Use the CameraToIMUTransform, NumPosesThreshold, and AlignmentFraction properties to tune IMU parameters.

R2024b: Add ability to specify custom bag of words

Use the CustomBagOfFeatures name-value argument to specify a custom bag of words vocabulary as a bagOfFeaturesDBoW object.

R2024b: `Verbose` property enhanced to display progress information

The Verbose property added values of 1, 2, and 3 to display levels of progress information.

monovslam

Description

Creation

Syntax

Description

Input Arguments

`intrinsics` — Camera intrinsic parameters
`cameraIntrinsics` object

`imuParameters` — IMU parameters
`factorIMUParameters` object

Properties

Feature Extraction

`ScaleFactor` — Scale factor for image decomposition
`1.2` (default) | scalar greater than 1

`NumLevels` — Number of decomposition levels
`8` (default) | scalar greater than or equal to `1`

`MaxNumPoints` — Maximum number of ORB feature points uniformly extracted from each image
`1000` | positive integer

Tracking

`TrackFeatureRange` — Range for the number of feature points to identify key frame
`[30,100]` | 2-element vector

`SkipMaxFrames` — Maximum number of skipped frames
`20` | positive integer

`LoopClosureThreshold` — Minimum number of matched feature points between loop closure key frames
`60` | positive integer

`CustomBagOfFeatures` — Custom bag of features for loop detection
`[]` (default) | `bagOfFeaturesDBoW` object

`Verbose` — Progress information display
`[]` (default) | `1` | `2` | `3`

IMU Fusion

`CameraToIMUTransform` — IMU sensor transform
`rigidtform3d` object

`NumPosesThreshold` — Number of estimated camera poses to trigger camera-IMU alignment
`30` (default) | integer

`AlignmentFraction` — Subset of pose estimates
`0.8` (default) | scalar in the range (0,1]

Object Functions

Examples

Monocular Visual SLAM Using TUM RGB-D Data Set

Monocular Visual-Inertial SLAM Using the BlackBird Data Set

References

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

R2024b: Fusion support for IMU sensors

R2024b: Add ability to specify custom bag of words

R2024b: `Verbose` property enhanced to display progress information

See Also

Objects

Functions

Topics

External Websites

monovslam

Description

Creation

Syntax

Description

Input Arguments

intrinsics — Camera intrinsic parameters cameraIntrinsics object

imuParameters — IMU parameters factorIMUParameters object

Properties

Feature Extraction

ScaleFactor — Scale factor for image decomposition 1.2 (default) | scalar greater than 1

NumLevels — Number of decomposition levels 8 (default) | scalar greater than or equal to 1

MaxNumPoints — Maximum number of ORB feature points uniformly extracted from each image 1000 | positive integer

Tracking

TrackFeatureRange — Range for the number of feature points to identify key frame [30,100] | 2-element vector

SkipMaxFrames — Maximum number of skipped frames 20 | positive integer

LoopClosureThreshold — Minimum number of matched feature points between loop closure key frames 60 | positive integer

CustomBagOfFeatures — Custom bag of features for loop detection [] (default) | bagOfFeaturesDBoW object

Verbose — Progress information display [] (default) | 1 | 2 | 3

IMU Fusion

CameraToIMUTransform — IMU sensor transform rigidtform3d object

NumPosesThreshold — Number of estimated camera poses to trigger camera-IMU alignment 30 (default) | integer

AlignmentFraction — Subset of pose estimates 0.8 (default) | scalar in the range (0,1]

Object Functions

Examples

Monocular Visual SLAM Using TUM RGB-D Data Set

Monocular Visual-Inertial SLAM Using the BlackBird Data Set

References

Extended Capabilities

C/C++ Code Generation Generate C and C++ code using MATLAB® Coder™.

Version History

R2024b: Fusion support for IMU sensors

R2024b: Add ability to specify custom bag of words

R2024b: Verbose property enhanced to display progress information

See Also

Objects

Functions

Topics

External Websites

`intrinsics` — Camera intrinsic parameters
`cameraIntrinsics` object

`imuParameters` — IMU parameters
`factorIMUParameters` object

`ScaleFactor` — Scale factor for image decomposition
`1.2` (default) | scalar greater than 1

`NumLevels` — Number of decomposition levels
`8` (default) | scalar greater than or equal to `1`

`MaxNumPoints` — Maximum number of ORB feature points uniformly extracted from each image
`1000` | positive integer

`TrackFeatureRange` — Range for the number of feature points to identify key frame
`[30,100]` | 2-element vector

`SkipMaxFrames` — Maximum number of skipped frames
`20` | positive integer

`LoopClosureThreshold` — Minimum number of matched feature points between loop closure key frames
`60` | positive integer

`CustomBagOfFeatures` — Custom bag of features for loop detection
`[]` (default) | `bagOfFeaturesDBoW` object

`Verbose` — Progress information display
`[]` (default) | `1` | `2` | `3`

`CameraToIMUTransform` — IMU sensor transform
`rigidtform3d` object

`NumPosesThreshold` — Number of estimated camera poses to trigger camera-IMU alignment
`30` (default) | integer

`AlignmentFraction` — Subset of pose estimates
`0.8` (default) | scalar in the range (0,1]

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

R2024b: `Verbose` property enhanced to display progress information
