Design, analyze, and visualize antenna elements and antenna
arrays

Antenna Toolbox™ provides functions and apps for the design, analysis, and visualization of antenna elements and arrays. You can design standalone antennas and build arrays of antennas using either predefined elements with parameterized geometry or arbitrary planar elements.

Antenna Toolbox uses the method of moments (MoM) to compute port properties such as impedance, surface properties such as current and charge distribution, and field properties such as the near-field and far-field radiation pattern. You can visualize antenna geometry and analysis results in 2D and 3D.

You can integrate antennas and arrays into wireless systems and use impedance analysis to design matching networks. Antenna Toolbox provides radiation patterns for simulating beam forming and beam steering algorithms. Gerber files can be generated from your design for manufacturing printed circuit board (PCB) antennas. You can install the antennas on large platforms such as cars or airplanes and analyze the effects of the structure on antenna performance. A site viewer enables you to visualize antenna coverage on a 3D terrain map using a variety of propagation models.

**Antenna Modeling and Analysis**

This example shows how to construct, visualize and analyze the antenna elements in the Antenna Toolbox.

**Array Modeling and Analysis**

This example shows how to construct, visualize, and analyze an antenna array from the Antenna Toolbox.

**Current Visualization on the Antenna Surface**

This example shows how to visualize surface currents on the half- wavelength dipole and how to observe the individual current components.

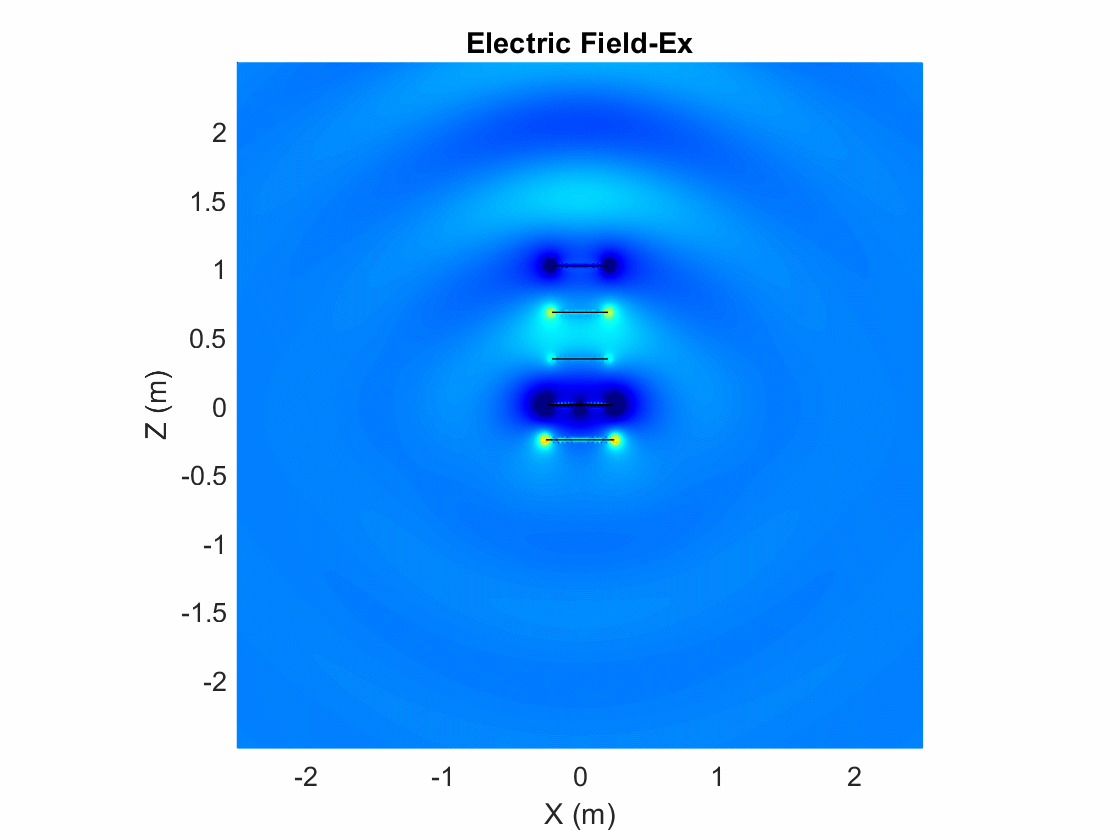

**Antenna Far-Field Visualization**

This example shows how to visualize the far fields for antennas and antenna arrays.

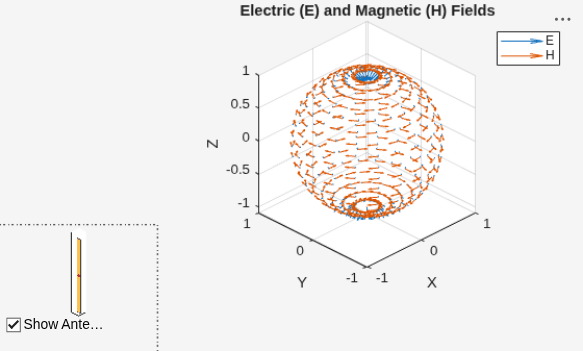

**Antenna Near-Field Visualization**

This example shows how to calculate and visualize the near-fields for antennas.

**Infinite Array Analysis**

This example demonstrates the use of infinite array analysis to model the behavior of a single element - the unit cell embedded in the array[1] - [3].

**RF Propagation and Visualization**

This example shows how to compute and visualize outdoor wireless coverage between a transmitter and receiver.

**Design and Analysis Using Antenna Array Designer App**

Antenna array designer app workflow tutorial.

Input impedance, resonance, return loss, reflection coefficient, bandwidth.

Charge distribution, current distribution

Radiation pattern, E-H fields, beamwidth, polarization, axial ratio

Active or scan impedance, array factor and pattern multiplication, coupling matrix, isolated or embedded element pattern.

Side lobe control, beam scanning.

*Grating lobes * are the maxima of the main beam, as predicted by the pattern multiplication theorem.

**Method of Moments Solver for Metal Structures**

Method of Moments computation technique for metal antennas.

**Method of Moments Solver for Metal and Dielectric Structures**

Method of Moments computation technique for metal and dielectric antennas.

**Hybrid MoM-PO Method for Metal Antennas with Large Scatterers**

Hybrid method of moments (MoM) physical optics (PO) computational technique in Antenna Toolbox allows you to model antennas near large scatterers such as parabolic reflectors.

Physical optics (PO) solver in Antenna Toolbox allows you to solve for the RCS of an object..

Antenna Toolbox feed model.

Classify antennas based on radiation pattern or feeding mechanism

**Antenna Toolbox Coordinate System**

Rectangular and spherical coordinate system

Features not supported

Default radiation patterns of antennas and arrays
