拟合后处理

绘图、离群值、残差、置信区间、验证数据、积分和导数，生成 MATLAB® 代码

拟合曲线或曲面后，可以使用后处理方法分析对数据的拟合是否准确。创建拟合后，可以应用各种后处理方法进行绘图；内插和外插；估计置信区间以及计算积分和导数。还可以使用后处理方法来确定拟合的离群值。

您可以使用 Curve Fitting Toolbox™ 函数通过绘制残差和预测边界来评估拟合情况。有关详细信息，请参阅评估曲线拟合。要比较拟合情况并以交互方式生成 MATLAB 代码，请使用曲线拟合器。

App

曲线拟合器对数据进行曲线和曲面拟合

函数

cfitcfit 对象的构造函数
coeffnamescfit、sfit 或 fittype 对象的系数名称
coeffvaluescfit 或 sfit 对象的系数值
confintcfit 或 sfit 对象的拟合系数的置信区间
differentiateDifferentiate cfit or sfit object
feval评估 cfit、sfit 或 fittype 对象
integrate对 cfit 对象求积分
plot绘制 cfit 或 sfit 对象
predintPrediction intervals for cfit or sfit object
probvaluescfit 或 sfit 对象的问题相关参数值
quad2dNumerically integrate sfit object
sfitsfit 对象的构造函数

主题

  • Create Multiple Fits in Curve Fitter App

    Workflow for refining your fit, comparing multiple fits, and using statistics to determine the best fit.

  • Explore and Customize Plots

    In the Curve Fitter app, display fit, residual, surface, or contour plots; display prediction bounds and multiple plots; use zoom, pan, data cursor, and outliers modes; change colormap of surface and contour plots, change axes limits and print plots.

  • Export Fit from Curve Fitter App to Simulink Lookup Table

    Export a surface fit from the Curve Fitter app to a Simulink® 2-D lookup table.

  • Remove Outliers

    Remove points interactively or exclude them by rule in the Curve Fitter app. Alternatively, exclude outliers by using the fit function. You can exclude data based on their distance from the model, in standard deviations.

  • 选择验证数据

    在曲线拟合器中将您的拟合与验证数据或测试集进行比较。

  • Generate Code and Export Fits to the Workspace

    Generate MATLAB code from an interactive session in the Curve Fitter app, recreate fits and plots, and analyze fits in the workspace.

  • 评估曲线拟合

    此示例说明如何使用曲线拟合。

  • 评估曲面拟合

    此示例说明如何使用曲面拟合。

  • Evaluating Goodness of Fit

    After fitting data with one or more models, evaluate the goodness of fit using plots, statistics, residuals, and confidence and prediction bounds.

  • Compare Fits in Curve Fitter App

    Find the best fit by comparing visual and numeric results, including fitted coefficients and goodness-of-fit statistics.

  • Compare Fits Programmatically

    This example shows how to fit and compare polynomials up to sixth degree using Curve Fitting Toolbox™, fitting some census data.

  • Residual Analysis

    The residuals from a fitted model are defined as the differences between the response data and the fit to the response data at each predictor value.

  • Confidence and Prediction Bounds

    Curve Fitting Toolbox software lets you calculate confidence bounds for the fitted coefficients, and prediction bounds for new observations or for the fitted function.

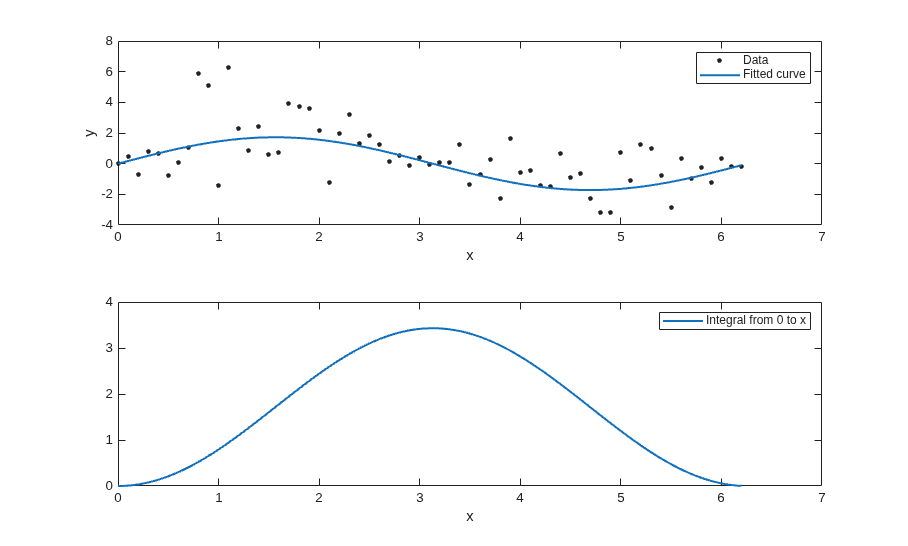

  • 求拟合的微分和积分

    此示例说明如何在预测变量值处求拟合的一阶和二阶导数以及拟合的积分。
