资源复用和流式处理
R2026b通过应用面积优化减少目标 FPGA 或 SoC 器件上设计的资源使用。您可以通过使用资源复用和流式处理优化来减少设计所需的面积。
模型设置
主题
- Resource Sharing
How to use resource sharing to save chip area.
- Streaming
What is streaming and how to use the optimization to save resources.
- Reduce Area by Sharing Multipliers in a Symmetric FIR Filter
This example shows how to use the resource sharing optimization in HDL Coder to reduce FPGA area by mapping multiple functionally equivalent multipliers to a single time-multiplexed multiplier.
精选示例
Streaming: Area Optimization
Use the subsystem level streaming optimization in HDL Coder™.

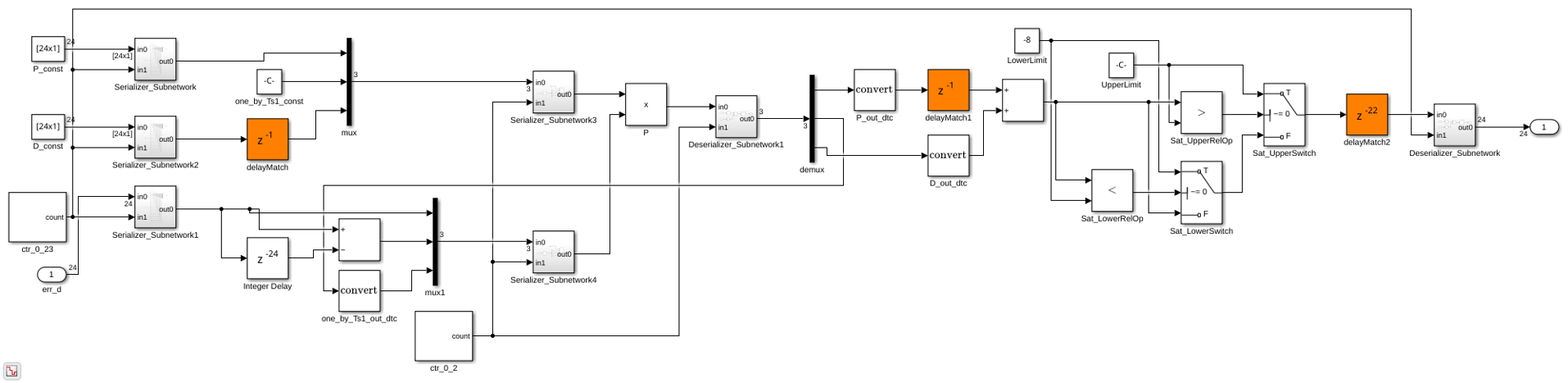

Resource Sharing for Area Optimization
Use the subsystem level sharing optimization in HDL Coder™.

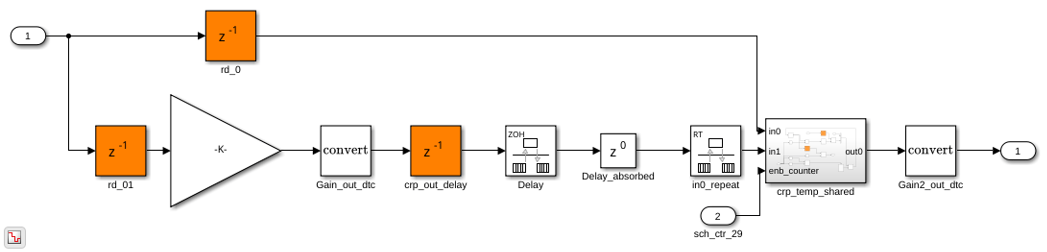

Single-Rate Resource Sharing Architecture
How HDL Coder™ generates a single-rate architecture from a model to manage the execution of operations in the context of clock-rate pipelining and resource sharing. When you apply resource sharing to blocks in your design, HDL Coder decides the architecture to use based on the sample rate of the regions where sharing occurs. If resource sharing occurs in a region of the design that operates at the fastest base sample rate, then HDL Coder synthesizes a local multi-rate architecture, as described in Resource Sharing for Area Optimization. In this example, the shared resources are in a region that operates at a slower sample rate, so HDL Coder applies clock-rate pipelining and synthesizes a single-rate architecture.

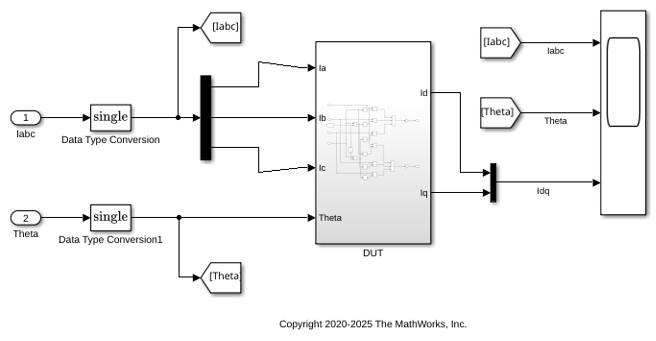

Improve Resource Sharing with Design Modifications
Improve opportunities for resource sharing to optimize your model design by making certain modifications to your design. Resource sharing is an HDL Coder optimization that improves area utilization in the design on the target FPGA device. The optimization identifies multiple functionally equivalent resources and replaces them with a single resource. For more information, see Resource Sharing.
Improve Resource Sharing with Clone Detection and Replacement
