Signal Labeler

Download and Prepare the Data

Use the QTdownload function to download the electrocardiogram (ECG) signals from the publicly available QT database [1] [2] to a new temporary directory folder. The code for this function is at the end of the example.

folder = QTdownload;

Each file contains an ECG signal ecgSignal, a table of region labels signalRegionLabels, and the sample rate variable Fs. All signals have a sample rate of 250 Hz. The region labels correspond to three heartbeat morphologies:

Create a signal datastore that points to folder. Specify the signal variable name ecgSignal and the sample rate variable Fs.

sds = signalDatastore(folder,SignalVariableNames="ecgSignal", ...
    SampleRateVariableName="Fs");

Create a subset of the datastore containing the first twenty files. Use this subset as the source for a labeledSignalSet object.

subsds = subset(sds,1:20);
lss = labeledSignalSet(subsds);

Label Regions of Interest

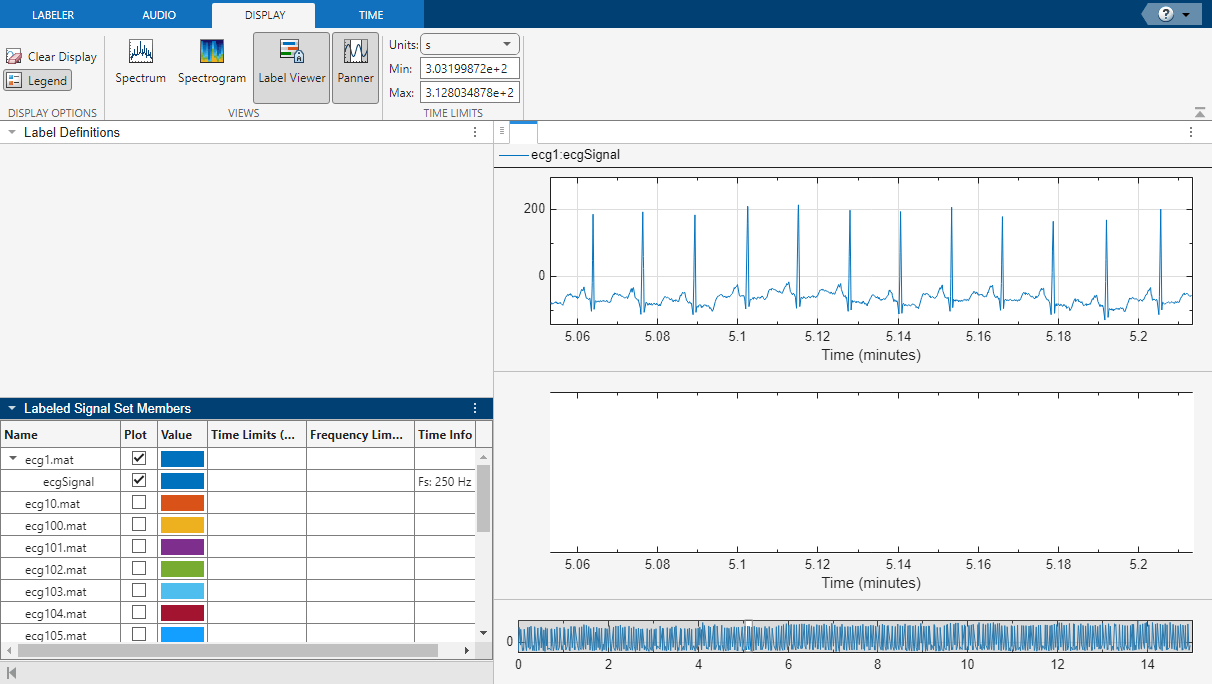

Open the Signal Labeler app and import the labeled signal set from the workspace. Plot the first signal in the data set. From the Display tab, select the panner and zoom to a smaller region of the signal for better visualization.

From the Labeler tab, define a categorical region-of-interest (ROI) label with P, QRS and T categories. Name the label BeatMorphologies.

Create a custom labeling function labelECGregions to locate and label the three different regions of interest. Code for the custom function appears later in the example. You can save the function in your current folder, on the MATLAB path, or add it in the app by selecting Add Custom Function in the Automate Value gallery. See Custom Labeling Functions for more information.

Select BeatMorphologies in the Label Definitions browser and choose the labelECGregions function from the Automate Value gallery. Select Auto-Label and then Auto-Label and Inspect Plotted. Click Run. From the Display tab, zoom in on a region of the labeled signal and use the panner to navigate through time. If the labeling is satisfactory, click Save Labels to accept the labels and close the Autolabel tab. You can see the labels and their location values in the Labeled Signal Set Members browser.

Visualize Labeling Progress and Statistics

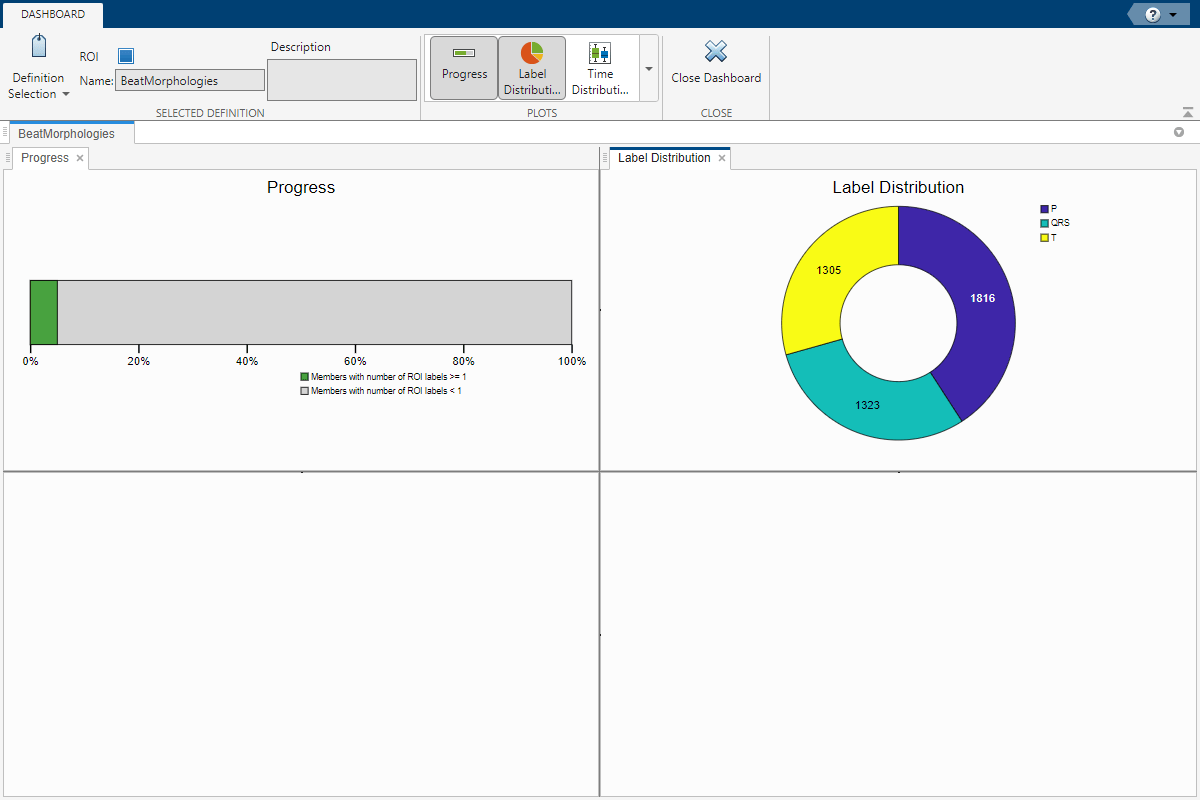

Select the Dashboard in the toolstrip of the Labeler tab. The progress bar shows 5% of members are labeled with at least one ROI label. This corresponds to 1/20 members in the data set. The label distribution pie chart shows the number of instances of each category for the selected label definition.

Close the dashboard and continue your labeling. Select Auto-Label and then Auto-Label All Signals to label the next four signals in the list. Check the box next to the signal names you want to label and then click OK.

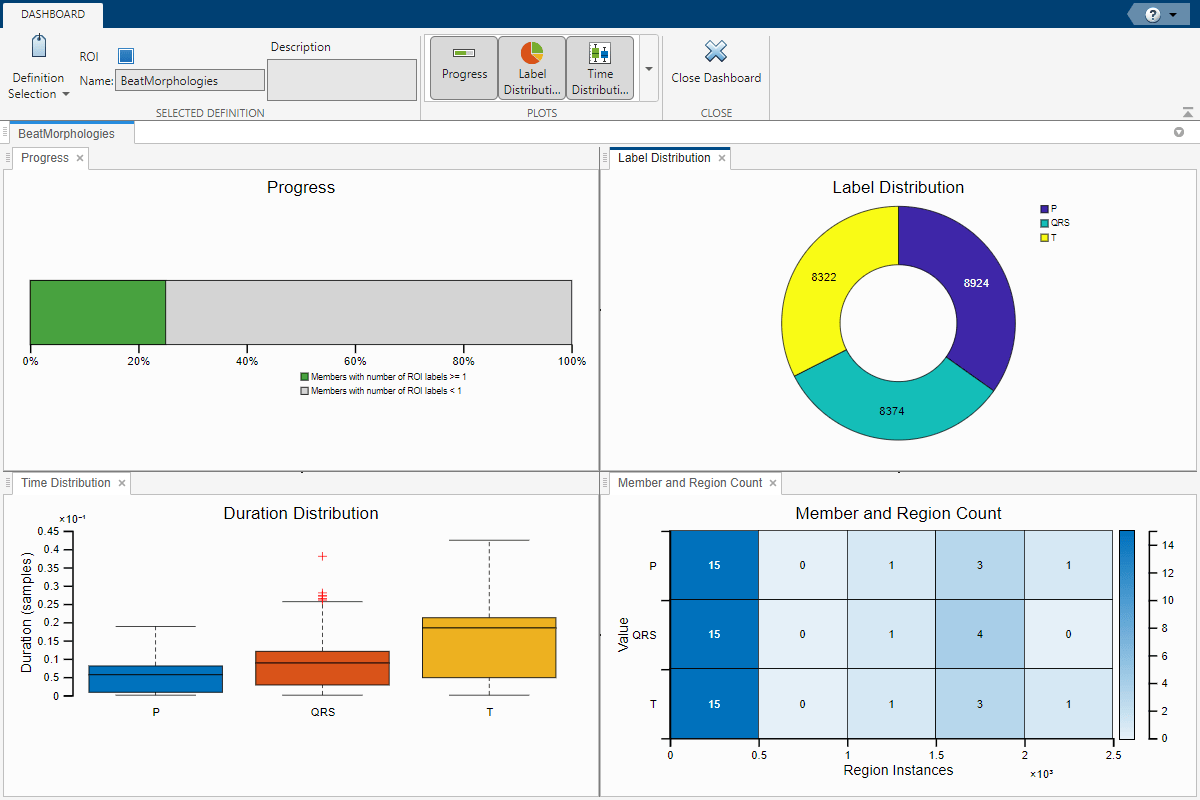

Select the Dashboard again. The progress bar now shows 25% of members are labeled. Verify the distribution of each category (P, QRS, or T) is as expected. The Label Distribution pie chart shows that each category makes up about a third of all label instances. Select the Time Distribution histogram chart from the Plots gallery to view the average duration of the P and T waves and QRS complexes, including outliers. Notice the T waves have longer durations than the P waves and QRS complexes.

Display the Member Count chart to better visualize the distribution of labels across members and number of instances. Most members in the data set have between 0–500 instances of P, QRS, and T regions.

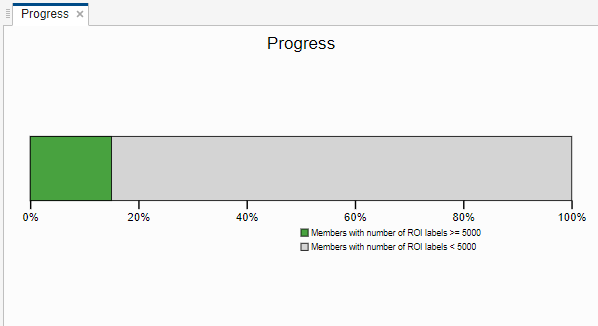

Click on the progress bar plot and adjust the Threshold in the toolstrip to count only members with at least 5000 labels. Now only three of the five labeled members are included in the count. Adjust the count threshold to better differentiate between labeled and unlabeled members based on your labeling requirements.

labelECGregions Function

The labelECGregions function uses a pretrained deep learning network to identify P, QRS and T heartbeat morphologies in ECG signals.

function [labelVals,labelLocs] = labelECGregions(x,t,parentLabelVal,parentLabelLoc,varargin)

labelVals = cell(2,1);
labelLocs = cell(2,1);

if nargin < 5
    Fs = 250;
else
    Fs = varargin{1};
end

% Download the pretrained network

netfil = matlab.internal.examples.downloadSupportFile("SPT", ...
    "data/QTDatabaseECGSegmentationNetworks.zip"); %#ok<*UNRCH>
unzip(netfil,fullfile(tempdir,"ECGnet"))
load(fullfile(tempdir,"ECGnet","trainedNetworks.mat"))

    for kj = 1:size(x,2)

        sig = x(:,kj)';

        predTest = classify(rawNet,sig,MiniBatchSize=50);

        msk = signalMask(predTest);
        msk.SpecifySelectedCategories = true;
        msk.SelectedCategories = find(msk.Categories ~= "n/a");

        labels = roimask(msk);
        labelVals{kj} = labels.Value;
        labelLocs{kj} = labels.ROILimits/Fs;

    end

labelVals = vertcat(labelVals{:});
labelLocs = cell2mat(labelLocs);

end

QTdownload Function

You can download the data files from https://www.mathworks.com/supportfiles/SPT/data/QTDatabaseECGData.zip or use the unzip function to create a folder in your temporary directory with 210 MAT-files in it.

function folder = QTdownload

localfile = matlab.internal.examples.downloadSupportFile("SPT", ...
    "data/QTDatabaseECGData1.zip");
unzip(localfile,tempdir)
folder = fullfile(tempdir,"QTDataset");

end

References

[1] Goldberger, Ary L., Luis A. N. Amaral, Leon Glass, Jeffery M. Hausdorff, Plamen Ch. Ivanov, Roger G. Mark, Joseph E. Mietus, George B. Moody, Chung-Kang Peng, and H. Eugene Stanley. "PhysioBank, PhysioToolkit, and PhysioNet: Components of a New Research Resource for Complex Physiologic Signals." Circulation. Vol. 101, No. 23, 2000, pp. e215–e220. [Circulation Electronic Pages; http://circ.ahajournals.org/content/101/23/e215.full].

[2] Laguna, Pablo, Roger G. Mark, Ary L. Goldberger, and George B. Moody. "A Database for Evaluation of Algorithms for Measurement of QT and Other Waveform Intervals in the ECG." Computers in Cardiology. Vol.24, 1997, pp. 673–676.
