Spectral Measurements

Channel power, bandwidth, mean frequency, median frequency, harmonic distortion

Use obw and powerbw to find the 90% occupied and 3-dB bandwidths of a signal. Compute the mean or median frequency of a power spectrum. Estimate the power over a given frequency band. Measure harmonic distortion. Estimate instantaneous bandwidth, instantaneous frequency, spectral entropy, and spectral kurtosis.

Functions

expand all

Power and Bandwidth

`bandpower`	Band power
`enbw`	Equivalent noise bandwidth
`instbw`	Estimate instantaneous bandwidth (Since R2021a)
`instfreq`	Estimate instantaneous frequency
`meanfreq`	Mean frequency
`medfreq`	Median frequency
`obw`	Occupied bandwidth
`powerbw`	Power bandwidth
`spectralCrest`	Spectral crest for signals and spectrograms
`spectralEntropy`	Spectral entropy for signals and spectrograms
`spectralFlatness`	Spectral flatness for signals and spectrograms
`spectralKurtosis`	Spectral kurtosis for signals and spectrograms
`spectralSkewness`	Spectral skewness for signals and spectrograms
`signalFrequencyFeatureExtractor`	Streamline signal frequency feature extraction (Since R2021b)
`signalTimeFrequencyFeatureExtractor`	Streamline signal time-frequency feature extraction (Since R2024a)

Harmonic Measurements

`sfdr`	Spurious free dynamic range
`signalTimeFeatureExtractor`	Streamline signal time feature extraction (Since R2021a)
`sinad`	Signal to noise and distortion ratio
`snr`	Signal-to-noise ratio
`thd`	Total harmonic distortion
`toi`	Third-order intercept point

Topics

Measure the Power of a Signal
Estimate the width of the frequency band that contains most of the power of a signal. For distorted signals, determine the power stored in the fundamental and the harmonics.
Measure Total Harmonic Distortion
Measure the total harmonic distortion of a sinusoidal signal.

Featured Examples

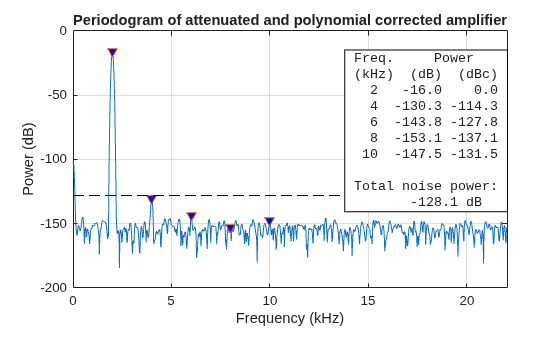

Analyzing Harmonic Distortion

Analyze the harmonic distortion of a weakly nonlinear system in the presence of noise.

Open Live Script

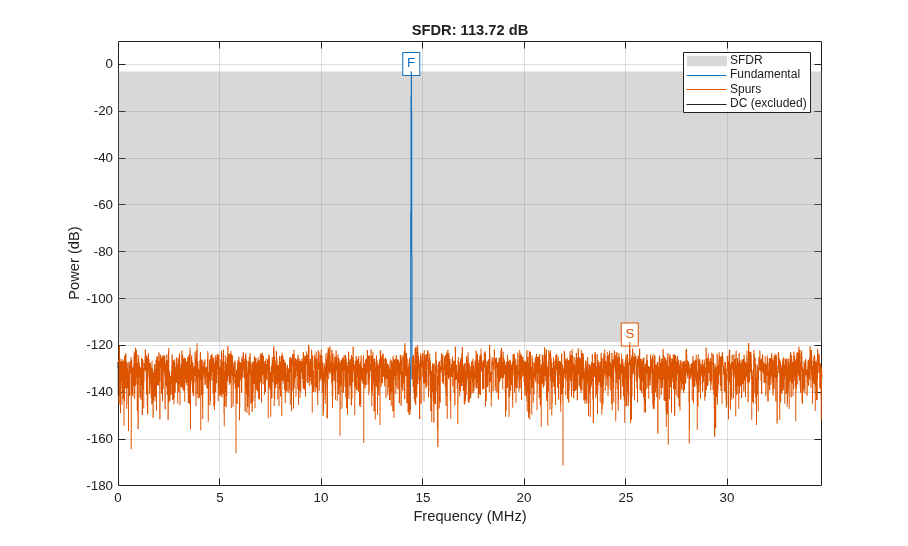

Spurious-Free Dynamic Range (SFDR) Measurement

Measure the SFDR of a numerically controlled oscillator and explore the effects of adding phase dither.

Open Script

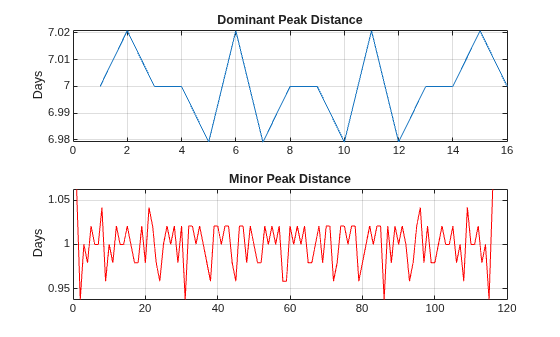

Measure Signal Similarities

Compare signals with different sample rates or frequency content, measure delays, and determine if there is a signal in a measurement.

Open Live Script
