PN Sequence Generator

Generate pseudonoise sequence

Libraries:
Communications Toolbox / Comm Sources / Sequence Generators
Communications Toolbox HDL Support / Comm Sources

Description

The PN Sequence Generator block generates a sequence of pseudorandom binary numbers using a linear-feedback shift register (LFSR). Pseudonoise sequences are typically used for pseudorandom scrambling, and in direct-sequence spread-spectrum systems. For more information, see More About.

These icons shows the block with all ports enabled.

Examples

expand all

Model PN Sequence Generation with Linear Feedback Shift Register

Open Model

This example shows that sequences output from the PN Sequence Generator block can be modeled using a linear feedback shift register (LFSR) built with primitive Simulink® blocks.

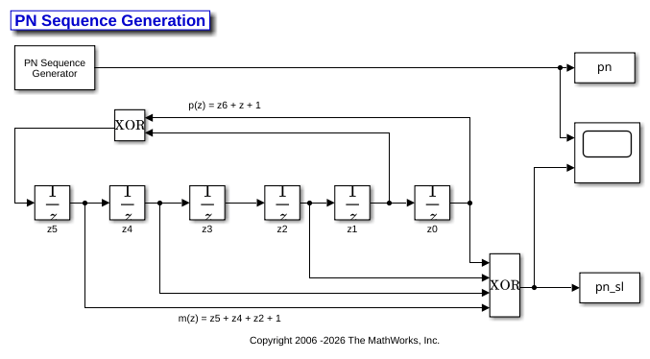

The cm_ex__pnseq_vs_prim_sl model generates the generator polynomial, p(z)=z^6+z+1, using the PN Sequence Generator block and by modeling a LFSR using primitive Simulink blocks. The Initial states and Output mask vector (or scalar shift value) parameters of the PN Sequence Generator block are interpreted in the LFSR model schematic. The PreLoadFcn callback function is used to initialize runtime parameters. To view the callback functions from the Simulink Toolstrip, on the Modeling tab, in the Design gallery, click Property Inspector.

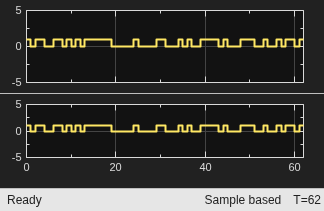

The scope output shows that the two implementations produce matching PN sequences.

Using the PN Sequence Generator block allows you to easily generate PN sequences of large periods. To experiment further, open the model. Modify settings to see how the performance varies for different path delays or adjust the PN sequence generator parameters. You can experiment with different initial states, by changing the value of Initial states prior to running the simulation. For all values, the two generated sequences are the same.

Additive Scrambling of Input Data in Simulink

This example uses:

Open Model

Digital communications systems commonly use additive scrambling and descrambling to randomize input data to aid in timing synchronization and meeting power spectral requirements. The Scrambler block supports multiplicative scrambling but does not support additive scrambling. To perform additive scrambling, you can use the PN Sequence Generator block. This example implements the additive scrambling specified in IEEE 802.11™ [1] by scrambling input data with an output sequence generated by the PN Sequence Generator block. For a MATLAB® example with a similar workflow, see the Additive Scrambling of Input Data example on the comm.PNSequence reference page.

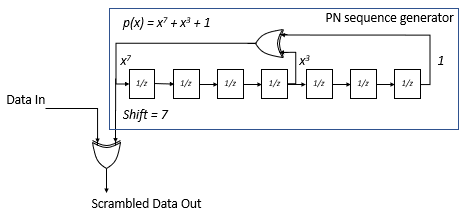

This figure shows an additive scrambler, that uses the generator polynomial $x^7+x^4+1$ , as specified in Figure 17-7 of IEEE 802.11™ Section 17.3.5.5 [1].

Compare the shift register specified in 802.11 with the shift register implemented using a PN Sequence Generator block and observe the two shift register schematics are mirror images of each other. Therefore, when configuring the PN Sequence Generator block to implement an additive scrambler, you must reverse values for the generator polynomial, the initial states, and the mask output. To take the output of the register from the leading end, specify a shift value of 7.

For more information about the 802.11 scrambler, see [1] and the wlanScramble (WLAN Toolbox) reference page.

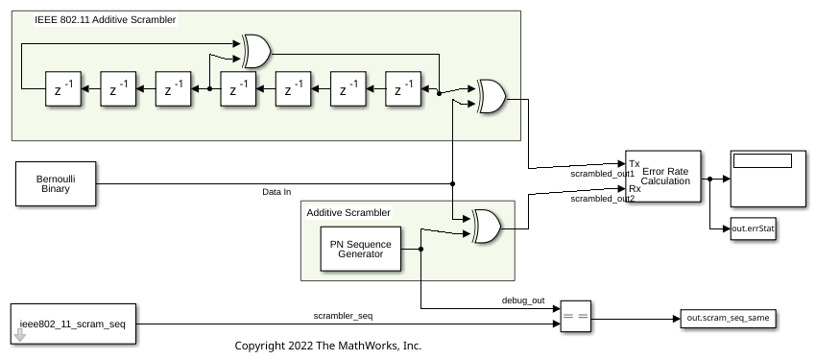

The cm_additive_scrambling model scrambles and compares the generated scrambling sequence and a frame of data scrambled according to the 802.11 specified additive scrambler by using these two additive scrambler implementations:

A shift register comprised of discrete Delay (Simulink) blocks and Logical Operator (Simulink) blocks configured as XOR operators.
The PN Sequence Generator block and XOR operator.

To compare the additive scrambler implementations, the cm_additive_scrambling model uses:

A Bernoulli Binary Generator block to provide an input signal to scramble.
A PN Sequence Generator block configured to use for the generator polynomial, [1 1 1 1 1 1 1] for the initial shift register state, and 7 for the output scrambling shift value.
A Logical Operator (Simulink) block configured as an XOR operator to apply the scramble sequence to the input data.
An Error Rate Calculation block to verify the scrambled data output from the discrete block shift register and the PN sequence versions of the additive scrambler match.
The PreLoadFcn callback function to create a workspace variable containing the 127-bit scrambler output sequence specified in section 17.3.5.5 of the IEEE 802.11 standard. A Relational Operator (Simulink) configured for an == operation compares the 127-bit scrambler sequence as output from the Signal From Workspace block to the PN Sequence block output.

Simulate Additive Scrambling

Run the model and display the results of the error rate calculation for the scrambled input sequence and equal comparison for the scrambler sequence.

Number of errors in scrambled output comparison is 0.
Number of mismatches comparing PN sequence output to IEEE 802.11 scrambler sequence 0.

References

[1] IEEE Std 802.11™-2020 (Revision of IEEE Std 802.11-2016). "Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications." IEEE Standard for Information technology - Telecommunications and information exchange between systems. Local and metropolitan area networks - Specific requirements.

PN Spreading for Single-User System in Multipath Channel

This example uses:

Open Model

This model simulates pseudo-random spreading for a single-user system in a multipath transmission environment. This is similar to a mobile channel environment where the signals are received over multiple paths. Each path can have different amplitudes and delays. The receiver combines the independent paths coherently by using diversity reception to realize gains from the multipath transmissions received. The modeled system does not simulate fading effects and the receiver gets perfect knowledge of the number of paths and their respective delays.

The model uses random binary data, which is BPSK modulated (real), spread by PN sequences, and then transmitted over a multipath AWGN channel. The receiver consists of a despreader, a diversity combiner, and a BPSK demodulator. The receiver achieves gains from diversity combining due to the ideal auto-correlation properties of the PN sequences used when spreading the data.

To experiment further, open the model. Modify the settings to see how the performance varies for different path delays or adjust the PN sequence generator parameters.

PN Spreading for Multiuser System in Multipath Channel

This example uses:

Open Model

This model simulates pseudo-random spreading for two users in a multipath transmission environment. This is similar to a mobile channel environment where the signals are received over multiple paths. Each path can have different amplitudes and delays. The receiver combines the independent paths coherently using diversity reception to realize gains from the multipath transmissions received. The modeled system does not simulate fading effects and the receiver gets perfect knowledge of the number of paths and their respective delays.

Using the same transmission data, the model calculates the performance for two-user transmissions through identically configured, multipath AWGN channels.

Because the transmissions for the individual users were spread using different PN sequences, the error rate computed for the users are different. Due to the higher cross-correlation properties of the nonorthogonal PN sequences used to spread the data, BER performance is degraded in a multipath environment. Sequences with high orthogonality, such as Hadamard and Kasami, are a better choice for multipath environments. For a multipath example that uses Hadamard code sequences when spreading user data, see Orthogonal Spreading for Multiuser System in Single-Path Channel. For a multipath example that uses Kasami code sequences when spreading user data, see Kasami Spreading for Multiuser System in Multipath Channel.

To experiment further, open the model. Modify the settings to see how the performance varies for different path delays or with different PN sequences for the individual users.

Ports

Input

expand all

Mask — Output mask
binary vector

Output mask to delay the PN sequence from initial time, specified as a binary vector with N elements. N is the degree of the generator polynomial.

Dependencies

To enable this port, set Output mask source to Input port.

Data Types: double | uint8 | ufix1

oSiz — Output size
integer

Output size for variable-size output signals, specified as an integer. For information about variable-size signals, see Variable-Size Signal Basics (Simulink).

Dependencies

To enable this port, select Output variable-size signals and set Maximum output size source to Dialog parameter.

Data Types: double

Ref — Reference input
column vector

Reference input, specified as a column vector that determines the maximum and current output sequence length. The Ref input must be a variable-size signal. For information about variable-size signals, see Variable-Size Signal Basics (Simulink).

Dependencies

To enable this port, select Output variable-size signals and set Maximum output size source to Inherit from reference input.

Data Types: double

Rst — Reset sequence generator
0 | 1

Reset sequence generator, specified as 0 or 1. For more information, see Reset Behavior.

Dependencies

To enable this port, select Reset on nonzero input.

Data Types: Boolean

Output

expand all

Out — Pseudorandom noise sequence
binary vector

PN sequence, returned as a binary vector. The data type of the output is specified by Output data type.

Parameters

expand all

To edit block parameters interactively, use the Property Inspector. From the Simulink^® Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

Generator polynomial — Generator polynomial
`'z^6 + z + 1'` (default) | character vector | string scalar | binary row vector | integer vector

Generator polynomial that determines the feedback connections of the shift register, specified as one of these options:

Character vector or string scalar of a polynomial whose constant term is 1. For more information, see Representation of Polynomials in Communications Toolbox.
Binary-valued row vector that represents the coefficients of the polynomial in order of descending powers. The length of this vector must be N + 1, where N is the degree of the polynomial. The first and last entries must be 1, indicating the leading term with degree N and a constant term of 1.
Integer-valued row vector of elements that represent the exponents for the nonzero terms of the polynomial in order of descending powers. The last entry must be 0, indicating a constant term of 1.

For more information, see Simple Shift Register Generator and Polynomial Order and Shift Register Orientation.

Example: 'z^8 + z^2 + 1', [1 0 0 0 0 0 1 0 1], and [8 2 0] represent the same polynomial, p(z) = z ⁸ + z ² + 1.

Initial states — Initial shift register states
`[0 0 0 0 0 1]` (default) | binary row vector

Initial shift register states of the PN sequence generator when the simulation starts, specified as a binary-valued row vector. The length of the vector must equal the degree of the generator polynomial specified by the Generator polynomial. For more information, see Simple Shift Register Generator and Polynomial Order and Shift Register Orientation.

Note

For the block to generate a nonzero sequence, the Initial states vector must contain at least one nonzero element.

Output mask source — Output mask source
`Dialog parameter` (default) | `Input port`

Output mask source that indicates how the output mask information is given to the block, specified as one of these:

Dialog parameter to use the Output mask vector (or scalar shift value) parameter setting.
Input port to add and use the Mask input port.

Output mask vector (or scalar shift value) — Output mask vector or scalar shift value
0 (default) | integer scalar | binary vector

Output mask vector or scalar shift value, specified as an integer scalar or binary row vector of length N, where N is the degree of the generator polynomial. This parameter determines the delay of the PN sequence from the initial time. For more information, see Shifting PN Sequence Starting Point.

Dependencies

To enable this parameter, set Output mask source to Dialog parameter.

Output variable-size signals — Option to output variable-length signals
`off` (default) | `on`

Select this parameter to enable variable-length output sequences during simulation. When you clear this parameter, the block outputs fixed-length sequences. When you select this parameter, the block can output variable-length sequences. For information about variable-size signals, see Variable-Size Signal Basics (Simulink).

Sample time — Output sample time
`1` (default) | -1 | positive scalar

Positive scalars specify the time in seconds between each sample of the output signal. If you set the sample time to -1, the output signal inherits the sample time from downstream. For information on the relationship between the Sample time and Samples per frame parameters, see Sample Timing.

Example: 1 specifies a sample time of 1 second.

Dependencies

To enable this parameter, clear Output variable-size signals.

Samples per frame — Samples per frame
`1` (default) | positive integer

Samples per frame in one channel of the output signal, specified as a positive integer. For information on the relationship between Sample time and Samples per frame, see Sample Timing.

Dependencies

To enable this parameter, clear Output variable-size signals.

Maximum output size source — Maximum output size source
`Dialog parameter` (default) | `Inherit from reference port`

Select how to specify the maximum sequence output size.

Dialog parameter — Select this value to configure the block to use the Maximum output size parameter setting as the maximum permitted output sequence length. The oSiz input port specifies the current size of the output signal, and the block output inherits the sample time from the input signal. The input value of oSiz must be less than or equal to the Maximum output size parameter.
Inherit from reference port — Select this value to enable the Ref input port and configure the block to inherit the sample time, maximum size, and current output size from the variable-sized signal at the Ref input port. These set the maximum permitted output sequence length.

Dependencies

To enable this parameter, select Output variable-size signals.

Maximum output size — Maximum output size
`[10 1]` (default) | vector of the form [n 1]

Specify the maximum output size for the block. n is a positive scalar.

Example: [10 1] specifies a 10-by-1 maximum size for the output signal.

Dependencies

To enable this parameter, select Output variable-size signals and set Maximum output size source to Dialog parameter.

Reset on nonzero input — Reset on nonzero input
off (default) | on

Select this parameter to add the Rst input port. For more information, see Reset Behavior.

Enable bit-packed outputs — Enable bit-packed outputs
off (default) | on

Select this parameter to make the Number of packed bits and Interpret bit-packed values as signed parameters available.

When this parameter is selected, the block generates (M×P) bits. M is the number of samples per frame specified in the Samples per frame parameter. P is the size of the bit-packed words specified in the Number of packed bits parameter. Each group of P bits is packed into an integer, resulting in an integer-valued output vector containing M elements. The data type of the output is specified by Output data type.

Note

For the integer representation, the top-most bit in each group of P bits is considered the MSB, while the bottom-most bit is the LSB.

Number of packed bits — Number of packed bits
8 (default) | integer in the range [1, 32]

Number of packed bits, specified as an integer in the range [1, 32].

Dependencies

To enable this parameter, select Enable bit-packed outputs.

Interpret bit-packed values as signed — Interpret bit-packed values as signed
off (default) | on

Interpret bit-packed values as signed integer data values when selected or unsigned integer data values when cleared. When selected, a 1 in the most significant bit (sign bit) indicates a negative value.

Dependencies

To enable this parameter, select Enable bit-packed outputs.

Output data type — Output data type
`double` (default) | `boolean` | `Smallest unsigned integer`

Output data type, specified as double, boolean, or Smallest unsigned integer.

When Enable bit-packed outputs is cleared, the output data type can be specified as a double, boolean, or Smallest unsigned integer. When the Output data type parameter is set to Smallest unsigned integer, the output data type is selected based on the settings used in the Hardware Implementation pane of the Configuration Parameters dialog box of the model. If ASIC/FPGA is selected in the Hardware Implementation pane, the output data type ufix(1) = ideal minimum one-bit size. For all other selections, it is an unsigned integer with the smallest available word length large enough to fit one bit, usually corresponding to the size of a char (for example, uint8).
When Enable bit-packed outputs is selected, the output data type can be specified as double or Smallest unsigned integer. When the Output data type parameter is set to Smallest unsigned integer, the output data type is selected based on the Interpret bit-packed values as signed and Number of packed bits parameters, and the settings used in the Hardware Implementation pane of the Configuration Parameters dialog box of the model. If ASIC/FPGA is selected in the Hardware Implementation pane, the output data type is the ideal minimum n-bit size, such as sfix(n) or ufix(n), based on the Interpret bit-packed values as signed parameter. For all other selections, it is a signed or unsigned integer with the smallest available word length large enough to fit n bits.

Block Characteristics

Data Types	`Boolean` \| `double` \| `fixed point`
Multidimensional Signals	`no`
Variable-Size Signals	`yes`

More About

expand all

Simple Shift Register Generator

A linear-feedback shift register (LFSR), implemented as a simple shift register generator (SSRG), is used to generate PN sequences. This type of shift register is also known as a Fibonacci implementation.

The polynomial g determines the feedback connections of the shift register. It is a primitive binary polynomial in z, g_rz^r+g_r–1z^r–1+g_r–2z^r–2+...+g₀. For the coefficient g_{k=0 to r}, the coefficient g_k is 1 if there is a connection from the kth register to the adder. The leading term, g_r, and the constant term, g₀, of the generator polynomial must be 1 because the polynomial must be primitive. At each time step, all r registers in the generator update their values according to the value of the incoming arrow to the shift register. The adders perform addition modulo 2. The output of the LFSR reflects the sum of all connections in the m mask vector.

g is specified by the Generator polynomial parameter.
The initial value of r is specified by the Initial states parameter.
m determines the shift of the PN sequence starting point and is specified by the Output mask vector (or scalar shift value) parameter or Mask port.

This table indicates two sets of parameter values that correspond to the generator polynomial g(z) = z⁸ + z² + 1.

Quantity	Example 1	Example 2
g	`g1 = [1 0 0 0 0 0 1 0 1]`	`g2 = [8 2 0]`
Degree of generator polynomial, g	8, which is `length(g1)-1`	8
Initial states	`[1 0 0 0 0 0 1 0]`	`[1 0 0 0 0 0 1 0]`

For an example, see Model PN Sequence Generation with Linear Feedback Shift Register.

Polynomial Order and Shift Register Orientation

The implementation orients shift registers from left to right with the generator polynomial (g), initial states, and mask output defined in descending order. Specifically g_rz^r+g_r–1z^r–1+g_r–2z^r–2+...+g₀.

When attempting to model and match results from literature, you must recognize whether your source uses the same convention or the mirror image of this convention and is defined in ascending order.

For an example, see Additive Scrambling of Input Data in Simulink.

Shifting PN Sequence Starting Point

To shift the starting point of the PN sequence, specify the Output mask vector (or scalar shift value) parameter as:

An integer representing the length of the shift.

The default Output mask vector (or scalar shift value) setting of 0 corresponds to no shift. As illustrated in the LFSR shift register diagram in Simple Shift Register Generator, there is no shift when the only connection is along the arrow labeled m₀.

This table shows the shift that occurs when you set Output mask vector (or scalar shift value) to 0 versus a positive integer d.

	T = 0	T = 1	T = 2	...	T = d	T = d+1
Shift = 0	x₀	x₁	x₂	...	x_d	x_d+1
Shift = d	x_d	x_d+1	x_d+2	...	x_2d	x_2d+1

A binary vector whose length is equal to the degree of the generator polynomial. The LFSR shift register diagram in Simple Shift Register Generator shows Output mask vector (or scalar shift value) specified as a mask vector, m. The binary vector must have N elements, where N is the degree of the generator polynomial. To calculate the mask vector, use the shift2mask function.
The binary vector corresponds to a polynomial in z, m_r–1z^r–1 + m_r–2z^r–2 + ... + m₁z + m₀, of degree at most r–1. The mask vector that correspond to a shift of d is the vector that represents m(z) = z^d modulo g(z), where g(z) is the generator polynomial.
For example, if the degree of the generator polynomial is 4, then the mask vector that corresponds to d = 2 is [0 1 0 0], which represents the polynomial m(z) = z².

Reset Behavior

Before you can reset the generator sequence, you must select the Reset on nonzero input parameter to enable the Rst input port. Suppose that the PN Sequence Generator block outputs [1 0 0 1 1 0 1 1] when no reset exists. This table shows the effect on the PN Sequence Generator block output for the parameter values indicated.

Reset Signal	Reset Signal Settings	PN Sequence Generator block
No reset	Sample time is `1` Samples per frame is `1` Rst is `[0 0 0 0 0 0 0 0]`	Sample time is `1` Samples per frame is `1` Out is `[1 0 0 1 1 0 1 1]`
Scalar reset signal	Sample time is `1` Samples per frame is `1` Rst is `[0 0 0 1 0 0 0 0]`	Sample time = `1` Samples per frame is `1`
Vector reset signal	Sample time is `1` Samples per frame is `8` Rst is `[0 0 0 1 0 0 0 0]`	Sample time is `1` Samples per frame is `8`

For the no-reset case, the block outputs the sequence without resetting it. For the scalar and vector reset signal cases, the block inputs the reset signal [0 0 0 1 0 0 0 0] to the Rst port. Because the fourth bit of the reset signal is a 1 and Sample time is 1, the block resets the sequence output at the fourth bit.

For variable-sized outputs, the block supports only scalar reset signal inputs.

Sequences of Maximum Length

To generate a maximum length sequence for a generator polynomial that has the degree r, set Generator polynomial to a value from the following table. The maximum sequence length is 2^r – 1.

r	Generator Polynomial	r	Generator Polynomial	r	Generator Polynomial	r	Generator Polynomial
2	`[2 1 0]`	15	`[15 14 0]`	28	`[28 25 0]`	41	`[41 3 0]`
3	`[3 2 0]`	16	`[16 15 13 4 0]`	29	`[29 27 0]`	42	`[42 23 22 1 0]`
4	`[4 3 0]`	17	`[17 14 0]`	30	`[30 29 28 7 0]`	43	`[43 6 4 3 0]`
5	`[5 3 0]`	18	`[18 11 0]`	31	`[31 28 0]`	44	`[44 6 5 2 0]`
6	`[6 5 0]`	19	`[19 18 17 14 0]`	32	`[32 31 30 10 0`	45	`[45 4 3 1 0]`
7	`[7 6 0]`	20	`[20 17 0]`	33	`[33 20 0]`	46	`[46 21 10 1 0]`
8	`[8 6 5 4 0]`	21	`[21 19 0]`	34	`[34 15 14 1 0]`	47	`[47 14 0]`
9	`[9 5 0]`	22	`[22 21 0]`	35	`[35 2 0]`	48	`[48 28 27 1 0]`
10	`[10 7 0]`	23	`[23 18 0]`	36	`[36 11 0]`	49	`[49 9 0]`
11	`[11 9 0]`	24	`[24 23 22 17 0]`	37	`[37 12 10 2 0]`	50	`[50 4 3 2 0]`
12	`[12 11 8 6 0]`	25	`[25 22 0]`	38	`[38 6 5 1 0]`	51	`[51 6 3 1 0]`
13	`[13 12 10 9 0]`	26	`[26 25 24 20 0]`	39	`[39 8 0]`	52	`[52 3 0]`
14	`[14 13 8 4 0]`	27	`[27 26 25 22 0]`	40	`[40 5 4 3 0]`	53	`[53 6 2 1 0]`

For more information about the shift-register configurations that these polynomials represent, see Digital Communications by John Proakis [1].

Sample Timing

The time between output updates is equal to the product of the Samples per frame and Sample time parameter values. For example, if Sample time and Samples per frame each equal 1, the block outputs one sample every second. If you increase Samples per frame to 10, then the block outputs a 10-by-1 vector every 10 seconds. This timing ensures that the equivalent output rate is not dependent on the Samples per frame parameter.

References

[1] Proakis, John G. Digital Communications. 5th ed. New York: McGraw Hill, 2007.

[2] Lee, J. S., and L. E. Miller. CDMA Systems Engineering Handbook. Boston and London. Artech House, 1998.

[3] Golomb, S.W. Shift Register Sequences. Laguna Hills. Aegean Park Press, 1967.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.

HDL Architecture

This block has one default HDL architecture.

HDL Block Properties

ConstrainedOutputPipeline	Number of registers to place at the outputs by moving existing delays within your design. Distributed pipelining does not redistribute these registers. The default is `0`. For more details, see ConstrainedOutputPipeline (HDL Coder).
InputPipeline	Number of input pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is `0`. For more details, see InputPipeline (HDL Coder).
OutputPipeline	Number of output pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is `0`. For more details, see OutputPipeline (HDL Coder).

Restrictions

You can select Input port as the Output mask source on the block. In this case, the Mask input signal must be a vector of data type ufix1.
If you select Reset on nonzero input, the input to the Rst port must have data type Boolean.
Outputs of type double are not supported for HDL code generation. All other output types (including bit-packed outputs) are supported.
You cannot generate HDL for this block inside a Resettable Synchronous Subsystem (HDL Coder).
You cannot generate HDL for this block inside a Triggered Subsystem if the Use trigger signal as clock option is selected. See Using Triggered Subsystems for HDL Code Generation (HDL Coder).

Version History

Introduced before R2006a

expand all

R2020a: Existing models automatically update this block to current version

Starting in R2020a, Simulink no longer allows you to use the PN Sequence Generator block version available before R2015b.

Existing models automatically update to load the PN Sequence Generator block version announced in Source blocks output frames of contiguous time samples but do not use frame attribute. For more information on block forwarding, see Maintain Compatibility of Library Blocks Using Forwarding Tables (Simulink).

PN Sequence Generator

Description

Examples

Model PN Sequence Generation with Linear Feedback Shift Register

Additive Scrambling of Input Data in Simulink

PN Spreading for Single-User System in Multipath Channel

PN Spreading for Multiuser System in Multipath Channel

Ports

Input

Mask — Output mask binary vector

Dependencies

oSiz — Output size integer

Dependencies

Ref — Reference input column vector

Dependencies

Rst — Reset sequence generator 0 | 1

Dependencies

Output

Out — Pseudorandom noise sequence binary vector

Parameters

Generator polynomial — Generator polynomial 'z^6 + z + 1' (default) | character vector | string scalar | binary row vector | integer vector

Initial states — Initial shift register states [0 0 0 0 0 1] (default) | binary row vector

Output mask source — Output mask source Dialog parameter (default) | Input port

Output mask vector (or scalar shift value) — Output mask vector or scalar shift value 0 (default) | integer scalar | binary vector

Dependencies

Output variable-size signals — Option to output variable-length signals off (default) | on

Sample time — Output sample time 1 (default) | -1 | positive scalar

Dependencies

Samples per frame — Samples per frame 1 (default) | positive integer

Dependencies

Maximum output size source — Maximum output size source Dialog parameter (default) | Inherit from reference port

Dependencies

Maximum output size — Maximum output size [10 1] (default) | vector of the form [n 1]

Dependencies

Reset on nonzero input — Reset on nonzero input off (default) | on

Enable bit-packed outputs — Enable bit-packed outputs off (default) | on

Number of packed bits — Number of packed bits 8 (default) | integer in the range [1, 32]

Dependencies

Interpret bit-packed values as signed — Interpret bit-packed values as signed off (default) | on

Dependencies

Output data type — Output data type double (default) | boolean | Smallest unsigned integer

Block Characteristics

More About

Simple Shift Register Generator

Polynomial Order and Shift Register Orientation

Shifting PN Sequence Starting Point

Reset Behavior

Sequences of Maximum Length

Sample Timing

References

Extended Capabilities

C/C++ Code Generation Generate C and C++ code using Simulink® Coder™.

HDL Code Generation Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

Version History

R2020a: Existing models automatically update this block to current version

See Also

Blocks

Objects

Topics

Mask — Output mask
binary vector

oSiz — Output size
integer

Ref — Reference input
column vector

Rst — Reset sequence generator
0 | 1

Out — Pseudorandom noise sequence
binary vector

Generator polynomial — Generator polynomial
`'z^6 + z + 1'` (default) | character vector | string scalar | binary row vector | integer vector

Initial states — Initial shift register states
`[0 0 0 0 0 1]` (default) | binary row vector

Output mask source — Output mask source
`Dialog parameter` (default) | `Input port`

Output mask vector (or scalar shift value) — Output mask vector or scalar shift value
0 (default) | integer scalar | binary vector

Output variable-size signals — Option to output variable-length signals
`off` (default) | `on`

Sample time — Output sample time
`1` (default) | -1 | positive scalar

Samples per frame — Samples per frame
`1` (default) | positive integer

Maximum output size source — Maximum output size source
`Dialog parameter` (default) | `Inherit from reference port`

Maximum output size — Maximum output size
`[10 1]` (default) | vector of the form [n 1]

Reset on nonzero input — Reset on nonzero input
off (default) | on

Enable bit-packed outputs — Enable bit-packed outputs
off (default) | on

Number of packed bits — Number of packed bits
8 (default) | integer in the range [1, 32]

Interpret bit-packed values as signed — Interpret bit-packed values as signed
off (default) | on

Output data type — Output data type
`double` (default) | `boolean` | `Smallest unsigned integer`

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.
