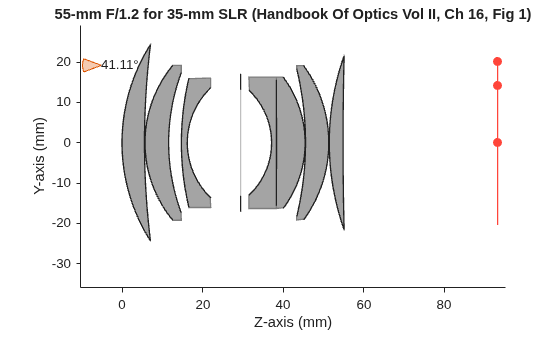

Create an optical system that contains a double Gauss lens using the createDoubleGauss helper function. The function is attached to this example as a supporting file. Display a 2-D visualization of the optical system using the view2d object function.

opsys = createDoubleGauss;
view2d(opsys)

ans =
  OpticalSystemViewer2D with properties:

            Title: ""
    OpticalSystem: [1×1 opticalSystem]
           Labels: "none"
      FieldPoints: "on"
             Rays: [0×0 optics.ui.Rays2D]
           Parent: [1×1 Figure]

  Show all properties

Remove the last component from the optical system using the removeNewPositionCallback object function. This removes the image plane from the optical system.

remove(opsys)

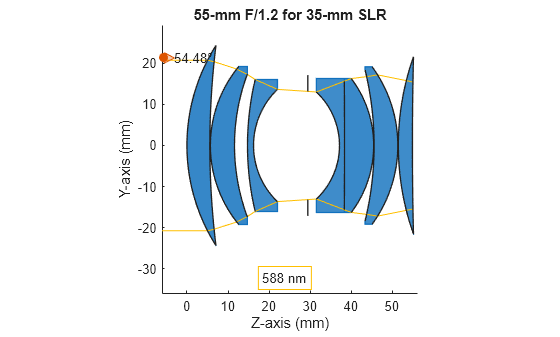

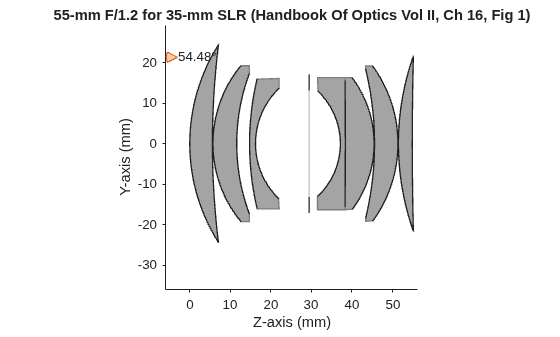

Display a 2-D visualization of the optical system using the view2d object function, and trace marginal rays through the optical system using the traceMarginalRays object function.

hv = view2d(opsys);
mr = traceMarginalRays(opsys,Wavelengths=587.5618);

Visualize the traced rays through the system using the addRays object function.

addRays(hv,mr)

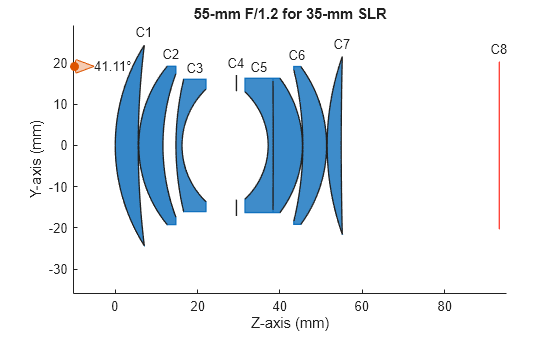

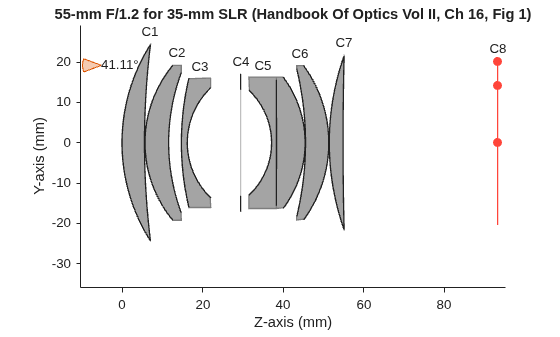

Create an optical system that contains a double Gauss lens using the createDoubleGauss helper function. The function is attached to this example as a supporting file. Display a 2-D visualization of the optical system using the view2d object function.

opsys = createDoubleGauss;
view2d(opsys,Labels="component")

ans =
  OpticalSystemViewer2D with properties:

            Title: ""
    OpticalSystem: [1×1 opticalSystem]
           Labels: "component"
      FieldPoints: "on"
             Rays: [0×0 optics.ui.Rays2D]
           Parent: [1×1 Figure]

  Show all properties

To remove a specific optical component from the system, use the removeNewPositionCallback function, and soecify an index. The index specifies the position of the optical component to remove from the optical system. Remove the first doublet.

remove(opsys,2)

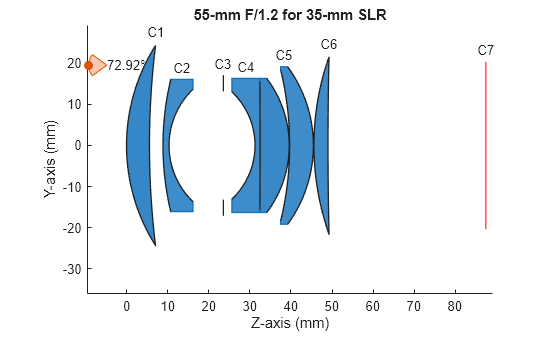

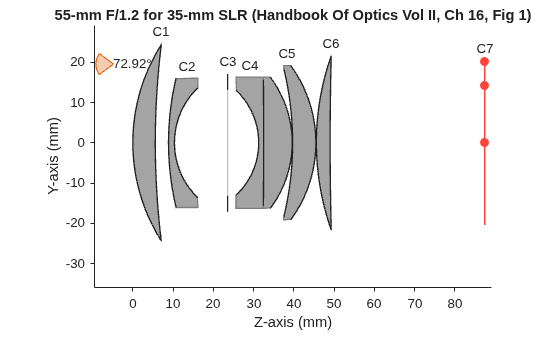

Display a 2-D visualization of the modified optical system using the view2d object function.

view2d(opsys,Labels="component")

ans =
  OpticalSystemViewer2D with properties:

            Title: ""
    OpticalSystem: [1×1 opticalSystem]
           Labels: "component"
      FieldPoints: "on"
             Rays: [0×0 optics.ui.Rays2D]
           Parent: [1×1 Figure]

  Show all properties
