Leverage in Portfolio Optimization with a Risk-Free Asset

Portfolio Without Leverage

Consider the following example that does not leverage a risk-free asset.

assetsMean = [ 0.05; 0.1; 0.12; 0.18; ];
assetCovar = [ 0.0064 0.00408 0.00192 0;
    0.00408 0.0289 0.0204 0.0119;
    0.00192 0.0204 0.0576 0.0336;
    0 0.0119 0.0336 0.1225];
riskFreeRate = 0.03;

% create a portfolio and define risk-free rate.
p = Portfolio('RiskFreeRate', riskFreeRate, 'assetmean', assetsMean, 'assetcovar', assetCovar, 'lowerbound', 0);

Create multiple portfolios with different budgets on risky assets to control the limits for investing in a risk-free asset.

p = setBudget(p, 1, 1);     % allow 0% risk free asset allocation, meaning fully invested in risky assets
p1 = setBudget(p, 0, 1);    % allow 0% to 100% risk free asset allocation
p2 = setBudget(p, 0.7, 1);  % allow 0% to 30% risk free asset allocation
[risk, retn] = estimatePortMoments(p, estimateMaxSharpeRatio(p));

figure;
plotFrontier(p); hold on;
plotFrontier(p1);hold on;
plotFrontier(p2); hold on;
plot(risk, retn, 'g*'); hold off;
legend('without risk-free asset', ...
    'with risk-free asset in range [0,1]', ...
    'with risk-free asset in range [0, 0.3]', ...
    'Max Sharpe Ratio', 'location','southeast');

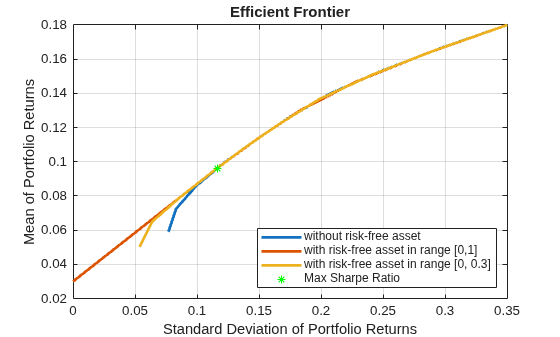

In the efficient frontiers in the above figure, the lower-left part of the red efficient frontier line for the portfolio with a risk-free asset is in range [0,1] and is actually the capital allocation line (CAL). The slope of this line is the maximum Sharpe ratio of the portfolio, which demonstrates how return is best awarded by taking extra risk. The upper right of the red efficient frontier line is the same as a fully invested portfolio (blue line). Once the portfolio crosses the Sharpe ratio point, the portfolio is fully invested and there is no more cash available to allow high risk-awarded returns following the straight CAL. However, if borrowing of a risk-free asset is allowed, you can effectively use the funds from the borrowing of a risk-free asset to invest in more risky assets, as demonstrated in the "Portfolio with Leverage" section.

Portfolio with Leverage

To fund investments in risky assets, consider using leverage by borrowing a risk-free asset. The Portfolio class enables you to use leverage in asset allocation when a risk-free asset is available in the portfolio.

First, check if the RiskFreeRate property for the Portfolio object is nonzero.

p

p =
  Portfolio with properties:

                       BuyCost: []
                      SellCost: []
                  RiskFreeRate: 0.0300
                     AssetMean: [4x1 double]
                    AssetCovar: [4x4 double]
                 TrackingError: []
                  TrackingPort: []
                      Turnover: []
                   BuyTurnover: []
                  SellTurnover: []
                          Name: []
                     NumAssets: 4
                     AssetList: []
                      InitPort: []
                   AInequality: []
                   bInequality: []
                     AEquality: []
                     bEquality: []
                    LowerBound: [4x1 double]
                    UpperBound: []
                   LowerBudget: 1
                   UpperBudget: 1
                   GroupMatrix: []
                    LowerGroup: []
                    UpperGroup: []
                        GroupA: []
                        GroupB: []
                    LowerRatio: []
                    UpperRatio: []
                  MinNumAssets: []
                  MaxNumAssets: []
    ConditionalBudgetThreshold: []
        ConditionalUpperBudget: []
                     BoundType: []

In this Portfolio object, the lower and upper budgets are both 1. Limits must be set on the total investment in risky assets. Borrowing a risk-free asset funds the extra investment in risky assets. Use setBudget to set the lower and upper bounds to set the limits of the borrowed risk-free assets.

p = setBudget(p, 1, 1);      % allow 0% risk free asset allocation, meaning fully invested in risky assets
p3 = setBudget(p, 1, 1.3);   % allow 0% risk free asset allocation, and allow borrowing of risk free asset to reach up to 30% leverage
p4 = setBudget(p, 1.3, 2);   % allow 0% risk free asset allocation, and allow borrowing of risk free asset to have at least 30% leverage and max 100% leverage
[risk, retn] = estimatePortMoments(p, estimateMaxSharpeRatio(p));

figure
plotFrontier(p); hold on;
plotFrontier(p1);hold on;
plotFrontier(p3); hold on;
plotFrontier(p4); hold on;
plot(risk, retn, 'g*'); hold off;
legend('without risk free asset',  ...
    'with risk free asset in range [0,1]', ...
    'with risk free asset in range [-0.3, 0]', ...
    'with risk free asset in range [-1.0, -0.3]',...
    'Max Sharpe Ratio', 'location','southeast');

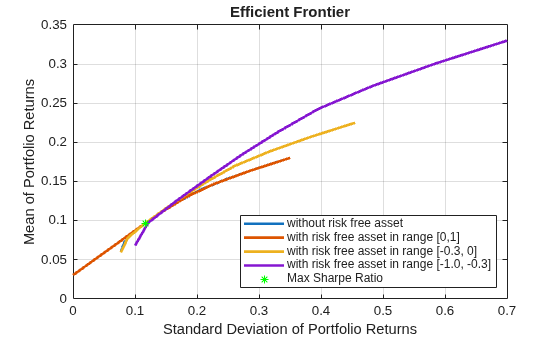

In this figure, the upper-right parts of both the orange and purple efficient frontiers extend from the CAL (lower-left red line), because of the leverage of a risk-free asset. The same levels of risk-awarded returns are obtained. Once the portfolio exhausts the maximum allowed leverage, the efficient frontier starts to fall below the CAL again, resulting in portfolios with lower Sharpe ratios.
