zerophase

Zero-phase response of discrete-time filter System object

collapse all in page

Syntax

[zphase,w] = zerophase(sysobj)
[zphase,w] = zerophase(sysobj,n)
[zphase,w] = zerophase(___,Arithmetic=arithType)
zerophase(sysobj)

Description

[zphase,w] = zerophase(sysobj) returns the zero-phase response vector, zphase, and the corresponding frequency vector, w, in radians/sample of the filter System object™ based on the current filter coefficients.

[zphase,w] = zerophase(sysobj,n) returns the n-point zero-phase response vector and the corresponding n-point frequency vector in radians/sample of the filter System object.

[zphase,w] = zerophase(___,Arithmetic=arithType) analyzes the filter System object based on the arithmetic specified in arithType using either of the previous syntaxes.

zerophase(sysobj) plots the zero-phase response of the filter System object.

For more input options, see zerophase in Signal Processing Toolbox™.

example

Examples

collapse all

Open Live Script

Create a dsp.FIRFilter System object™ and compute the zero-phase response of the filter.

Fs = 8000;
Fcutoff = 2000;
FIRFilt = dsp.FIRFilter(Numerator=designLowpassFIR(FilterOrder=130,...
    CutoffFrequency=Fcutoff/(Fs/2)));

The zerophase function computes and plots the zero-phase response of the filter.

zerophase(FIRFilt)

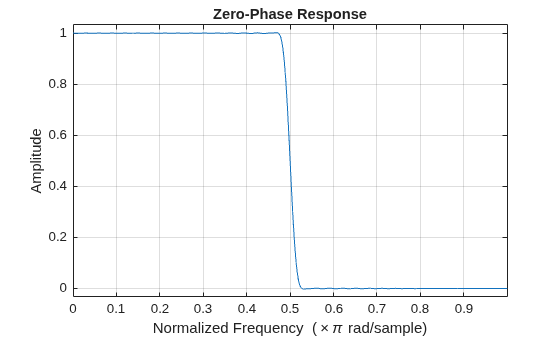

Figure contains an axes object. The axes object with title Zero-Phase Response, xlabel Normalized Frequency ( times pi blank rad/sample), ylabel Amplitude contains an object of type line.

Input Arguments

collapse all

Number of points over which the zero-phase response is evaluated around the upper half of the unit circle. For an FIR filter where n is a power of two, the computation is done faster using FFTs.

Data Types: double

Arithmetic used in the filter analysis, specified as 'double', 'single', or 'Fixed'. When the arithmetic input is not specified and the filter System object is unlocked, the analysis tool assumes a double-precision filter. When the arithmetic input is not specified and the System object is locked, the function performs the analysis based on the data type of the locked input.

The 'Fixed' value applies to filter System objects with fixed-point properties only.

When the 'Arithmetic' input argument is specified as 'Fixed' and the filter object has the data type of the coefficients set to 'Same word length as input', the arithmetic analysis depends on whether the System object is unlocked or locked.

  • unlocked –– The analysis object function cannot determine the coefficients data type. The function assumes that the coefficients data type is signed, has a 16-bit word length, and is auto scaled. The function performs fixed-point analysis based on this assumption.

  • locked –– When the input data type is 'double' or 'single', the analysis object function cannot determine the coefficients data type. The function assumes that the data type of the coefficients is signed, has a 16-bit word length, and is auto scaled. The function performs fixed-point analysis based on this assumption.

To check if the System object is locked or unlocked, use the isLocked function.

When the arithmetic input is specified as 'Fixed' and the filter object has the data type of the coefficients set to a custom numeric type, the object function performs fixed-point analysis based on the custom numeric data type.

Output Arguments

collapse all

Zero-phase response vector, evaluated at n equally-spaced points around the upper half of the unit circle, returned as a vector. If n is not specified, the function uses a default value of 8192.

Data Types: double

Frequency vector of length n in radians/sample. w consists of n equally-spaced points around the upper half of the unit circle (from 0 to π radians/sample). If n is not specified, the function uses a default value of 8192.

Data Types: double

Version History

Introduced in R2011a

expand all
