Signal Analysis

Decimated and nondecimated 1-D wavelet transforms, 1-D discrete wavelet transform filter bank, 1-D dual-tree transforms, wavelet packets

Analyze signals using discrete wavelet transforms, dual-tree transforms, and wavelet packets.

Functions

expand all

Discrete Wavelet Transforms

`wavedec`	Multilevel 1-D discrete wavelet transform
`waverec`	Multilevel 1-D discrete wavelet transform reconstruction
`dwtfilterbank`	Discrete wavelet transform filter bank
`dualtree`	Kingsbury Q-shift 1-D dual-tree complex wavelet transform (Since R2020a)
`idualtree`	Kingsbury Q-shift 1-D inverse dual-tree complex wavelet transform (Since R2020a)
`haart`	Haar 1-D wavelet transform
`ihaart`	Inverse 1-D Haar wavelet transform
`dddtree`	Dual-tree and double-density 1-D wavelet transform
`idddtree`	Inverse dual-tree and double-density 1-D wavelet transform
`tqwt`	Tunable Q-factor wavelet transform (Since R2021b)
`itqwt`	Inverse tunable Q-factor wavelet transform (Since R2021b)
`tqwtmra`	Tunable Q-factor multiresolution analysis (Since R2021b)
`appcoef`	1-D approximation coefficients
`detcoef`	1-D detail coefficients
`wrcoef`	Reconstruct single branch from 1-D wavelet coefficients
`dddtreecfs`	Extract dual-tree/double-density wavelet coefficients or projections
`dtfilters`	Analysis and synthesis filters for oversampled wavelet filter banks
`qbiorthfilt`	First-level dual-tree biorthogonal filters (Since R2020a)
`qorthwavf`	Kingsbury Q-shift filters (Since R2020a)

Discrete Wavelet Packet Transforms

`dwpt`	Wavelet packet 1-D transform (Since R2020a)
`idwpt`	Inverse wavelet packet 1-D transform (Since R2020a)
`wpdec`	Wavelet packet decomposition 1-D
`wprec`	Wavelet packet reconstruction 1-D
`wpcoef`	Wavelet packet coefficients
`wprcoef`	Reconstruct wavelet packet coefficients
`besttree`	Best tree wavelet packet analysis
`wpspectrum`	Wavelet packet spectrum
`wpviewcf`	Plot wavelet packets colored coefficients
`otnodes`	Order terminal nodes of binary wavelet packet tree
`depo2ind`	Node depth-position to node index
`ind2depo`	Node index to node depth-position

Nondecimated Discrete Wavelet and Wavelet Packet Transforms

`modwt`	Maximal overlap discrete wavelet transform
`imodwt`	Inverse maximal overlap discrete wavelet transform
`modwtmra`	Multiresolution analysis based on MODWT
`modwtcorr`	Multiscale correlation using the maximal overlap discrete wavelet transform
`modwtvar`	Multiscale variance of maximal overlap discrete wavelet transform
`modwtxcorr`	Wavelet cross-correlation sequence estimates using the maximal overlap discrete wavelet transform (MODWT)
`swt`	Discrete stationary wavelet transform 1-D
`iswt`	Inverse discrete stationary wavelet transform 1-D
`modwpt`	Maximal overlap discrete wavelet packet transform
`imodwpt`	Inverse maximal overlap discrete wavelet packet transform
`modwptdetails`	Maximal overlap discrete wavelet packet transform details

Fractal Analysis

`dwtleader`	Multifractal 1-D wavelet leader estimates
`wfbm`	Fractional Brownian motion synthesis
`wfbmesti`	Parameter estimation of fractional Brownian motion

Wavelet Management

`dwtmode`	Discrete wavelet transform extension mode
`dyaddown`	Dyadic downsampling
`dyadup`	Dyadic upsampling
`measerr`	Quality metrics of signal or image approximation
`plotdt`	Plot dual-tree or double-density wavelet transform
`wavemngr`	Wavelet manager
`wenergy`	Energy for 1-D wavelet or wavelet packet decomposition
`wentropy`	Wavelet entropy
`wextend`	Extend vector or matrix
`wmaxlev`	Maximum wavelet decomposition level
`wvarchg`	Find variance change points

Apps

Signal Multiresolution Analyzer	Decompose signals into time-aligned components
Wavelet Signal Analyzer	Analyze and compress signals using wavelets (Since R2023a)
Wavelet Signal Denoiser	Visualize and denoise time series data

Topics

Wavelet Signal Analyzer

Using Wavelet Signal Analyzer App

Analyze and compress 1-D signals using wavelets.
- STEP 1: Select Signal to Analyze
- STEP 2: Decompose Signal
- STEP 3: Explore Signal Decomposition
- STEP 4: Compress Signal
- STEP 5: Share Results
Wavelet Decomposition of Complex-Valued Signal Using Wavelet Signal Analyzer
Analyze a complex-valued signal using Wavelet Signal Analyzer.
Visualizing Wavelet Packet Terminal Nodes in Wavelet Signal Analyzer
Learn how Wavelet Signal Analyzer visualizes wavelet packet decompositions.

Signal Multiresolution Analyzer

Using Signal Multiresolution Analyzer
Learn how to visualize multilevel wavelet-based decompositions of real-valued signals.
Compare MODWTMRA and EMD Decompositions
Learn how to compare fixed-bandwidth and data-adaptive decompositions using Signal Multiresolution Analyzer.
Share Results Using Signal Multiresolution Analyzer
Learn how to share analyses generated by Signal Multiresolution Analyzer.
Visualize and Recreate EWT Decomposition
Learn how to visualize an empirical wavelet transform decomposition using Signal Multiresolution Analyzer.
Visualize and Recreate TQWT Decomposition
Learn how to visualize a tunable Q-factor wavelet transform decomposition using Signal Multiresolution Analyzer.
Visualize and Recreate VMD Decomposition
Learn how to visualize the intrinsic mode functions and residual of a variational mode decomposition using Signal Multiresolution Analyzer.

Critically Sampled DWT

Critically Sampled and Oversampled Wavelet Filter Banks
Learn about tree-structured, multirate filter banks.
Haar Transforms for Time Series Data and Images
Use Haar transforms to analyze signal variability, create signal approximations, and watermark images.
Border Effects
Compensate for discrete wavelet transform border effects using zero padding, symmetrization, and smooth padding.

Nondecimated DWT

Analytic Wavelets Using the Dual-Tree Wavelet Transform
Create approximately analytic wavelets using the dual-tree complex wavelet transform.
Wavelet Cross-Correlation for Lead-Lag Analysis
Measure the similarity between two signals at different scales.
Comparing MODWT and MODWTMRA
Learn the differences between the maximal overlap discrete wavelet transform (MODWT) and the multiresolution analysis based on the MODWT.
Nondecimated Discrete Stationary Wavelet Transforms (SWTs)
Use the stationary wavelet transform to restore wavelet translation invariance.

Fractal Analysis

1-D Fractional Brownian Motion Synthesis
Synthesize a 1-D fractional Brownian motion signal.
Multifractal Analysis
Use wavelets to characterize local signal regularity using wavelet leaders.

Wavelet Packet Analysis

Wavelet Packets
Use wavelet packets indexed by position, scale, and frequency for wavelet decomposition of 1-D and 2-D signals.
Wavelet Packets: Decomposing the Details
This example shows how wavelet packets differ from the discrete wavelet transform (DWT).
Critically Sampled Wavelet Packet Analysis
Obtain the wavelet packet transform of a 1-D signal and a 2-D image.

Featured Examples

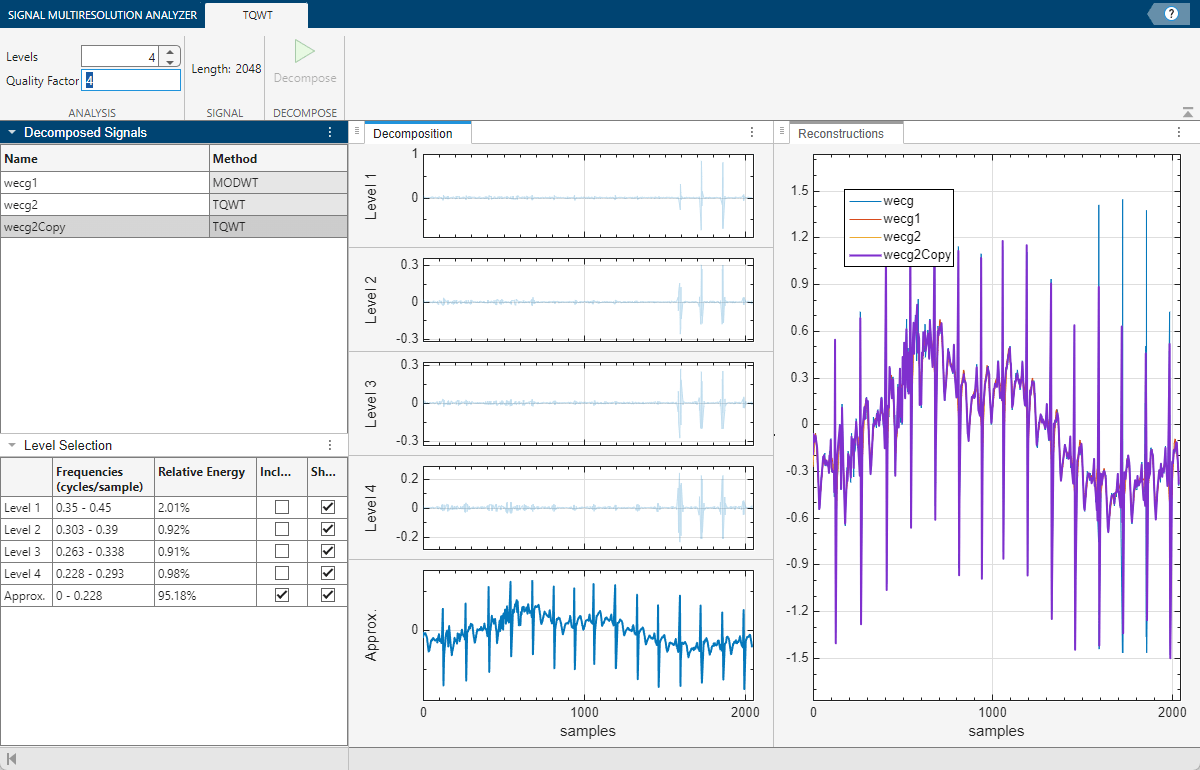

Visualize and Recreate TQWT Decomposition

Learn how to visualize a tunable Q-factor wavelet transform decomposition using Signal Multiresolution Analyzer.

Open Live Script

Wavelet Analysis of Financial Data

Use wavelets to analyze financial data.

Open Live Script

Detecting Discontinuities and Breakdown Points

Signals with very rapid evolutions such as transient signals in dynamic systems may undergo abrupt changes such as a jump, or a sharp change in the first or second derivative. Fourier analysis is usually not able to detect those events. The purpose of this example is to show how analysis by wavelets can detect the exact instant when a signal changes and also the type (a rupture of the signal, or an abrupt change in its first or second derivative) and amplitude of the change. In image processing, one of the major applications is edge detection, which also involves detecting abrupt changes.

Open Script

Wavelet Analysis of Physiologic Signals

Use wavelets to analyze physiologic signals.

Open Live Script

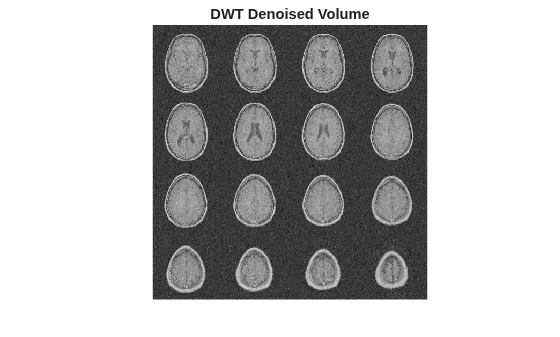

Dual-Tree Complex Wavelet Transforms

Learn the advantages the dual-tree complex wavelet transform provides over the critically sampled discrete wavelet transform.

Open Live Script
